Air Conditioning Electrostatic Precipitator High-voltage Module

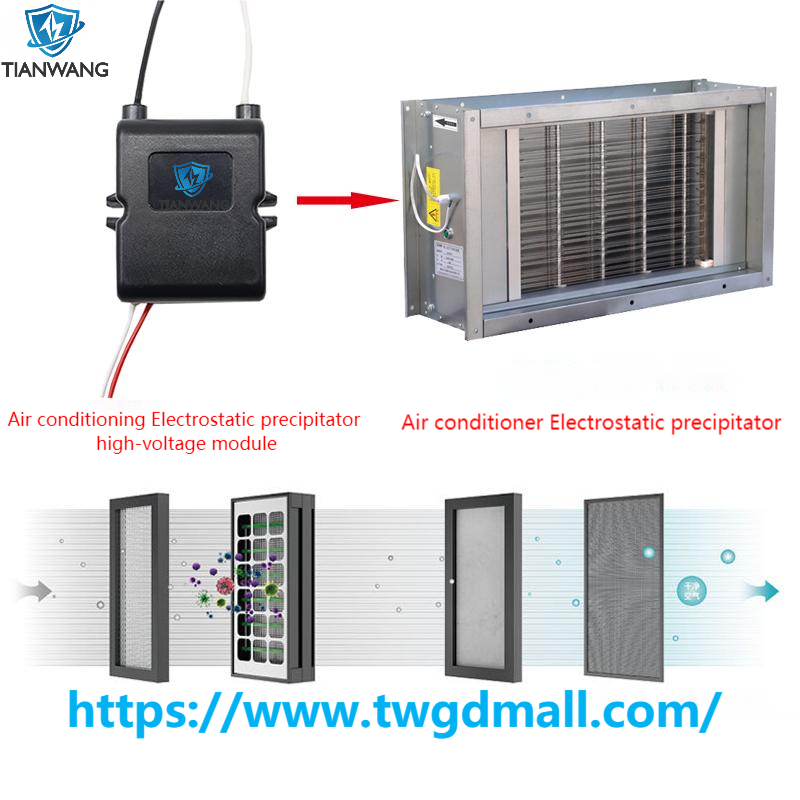

Electrostatic dust removal air purification devices operate by ionizing airborne dust and pollutants in a high-voltage electric field. This ionization causes a change in the movement direction of the particles, leading to their capture. Negatively charged ions are propelled towards the anode plate by the electric field force. Through the principle of attraction between opposite charges, the particulate matter is neutralized and captured on the dust collection plate, achieving the goal of dust removal and sterilization. The high-voltage module, also known as the high-voltage transformer, generates an electrostatic field of 8000-10000 volts between discharge electrodes, causing particles passing through the electric field to become charged instantaneously. By employing negative discharge, the module can simultaneously produce a large number of negative ions, thereby promoting fresh and healthy air.

To generate the required high-voltage output for the electrostatic dust removal and air purification systems, a high-voltage module is utilized. This module consists of integrated components such as a high-frequency transformer, rectifier, filter, and driver circuit.

The primary function of the high-voltage module is to convert low voltage into high-voltage output. This conversion is achieved through a high-frequency transformer that provides insulation coupling and resonance conversion, resulting in a higher voltage output. The rectifier shapes the voltage, followed by filtration to remove noise and interference using a filter. The driver circuit ensures the stability and safety of the output.

The high-voltage module plays a crucial role in air conditioning electrostatic dust removal and air purification systems by generating a strong electric field and creating an electric field force between the electrodes. This process charges the dust particles in the air and attracts them to the dust collection plate, effectively purifying the air and removing dust. By eliminating fine particulate matter from the air, this working principle significantly improves air quality.

Advantages of Electrostatic Technology:

1. Ultra-high virus eradication rate, up to 99%, and a bacteria eradication rate of up to 99%.

2. PM2.5 purification efficiency reaches up to 99%.

3. No consumables: can be repeatedly washed and does not require replacement, allowing for long-term use.

4. Zero ozone: Electrostatic technology does not generate ozone, posing no harm to human health and avoiding exceeding the ozone limit caused by static electricity in flat panels.

5. No secondary pollution: By using electrostatic technology to eliminate bacteria and viruses, it prevents serious secondary pollution caused by failure to replace HEPA filters.

6. High safety: Insulating materials are used to prevent issues such as flat panel static electricity ignition.

7. Energy-saving: The system has low power consumption and can support central air conditioning systems with an airflow resistance of less than 15Pa.

8. Noise-free: No noise is generated from discharge sparking, making it suitable for any public or household environment that requires quietness.

9. Low maintenance cost: Only regular cleaning is required, and it can be reused multiple times.

10. Versatility: It can be applied to any purification device without size limitations.

Applications of the Product:

1. Hospitals: Patient rooms, delivery rooms, treatment rooms, operating rooms, compounding rooms, supply rooms, etc.

2. Blood centers: Blood collection areas, sterile rooms, and blood banks.

3. Pharmaceutical factories: Aseptic areas, buffer areas, warehouses, laboratories, studios, and changing rooms.

4. Scientific research: Clean rooms for electronics, laboratories, computer rooms, buffer areas, warehouses, studios, and changing rooms.

5. Factories: Workshops, buffer areas, warehouses, and changing rooms.

6. Food industry: Sanitary product workshops, production workshops, packaging workshops, and warehouses.

7. Companies: Offices, conference rooms, computer rooms, and reception areas.

8. Kindergartens: Classrooms, playrooms, etc.

9. Banks: Stock exchanges, office lobbies, computer rooms, service halls, vaults, etc.

10. Public places: Office buildings, cinemas, hotels, entertainment venues, beauty salons, bus stations, train stations, high-speed railway stations, subway stations, and bus stations.

11. Homes: Living rooms, bedrooms, children's rooms, etc.

Jiangsu Tianwang Solar Technology Co., Ltd specializes in manufacturing high voltage modules and ignition transformer. With a development and production history of 33 years in the field of high-voltage igniters, electrostatic high-voltage generators, and plasma high-voltage generators, we have demonstrated excellence in the electrostatic domain. We boast a strong technical team and a dedicated service team. Our products are of guaranteed quality and can also be customized according to customer requirements. We warmly welcome inquiries and consultations.

Continuing our commitment to innovation and customer satisfaction, Tianwang is proud to offer cutting-edge solutions in the field of electrostatic dust removal for air conditioning systems. With over three decades of experience in developing and producing high-quality ignition modules, we have become a trusted name in the industry.
