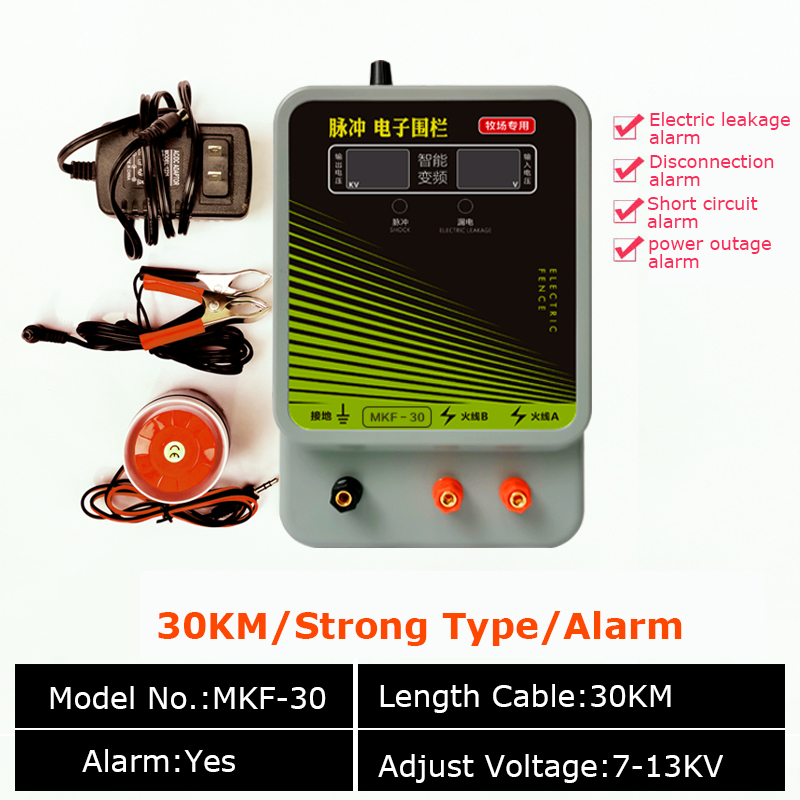

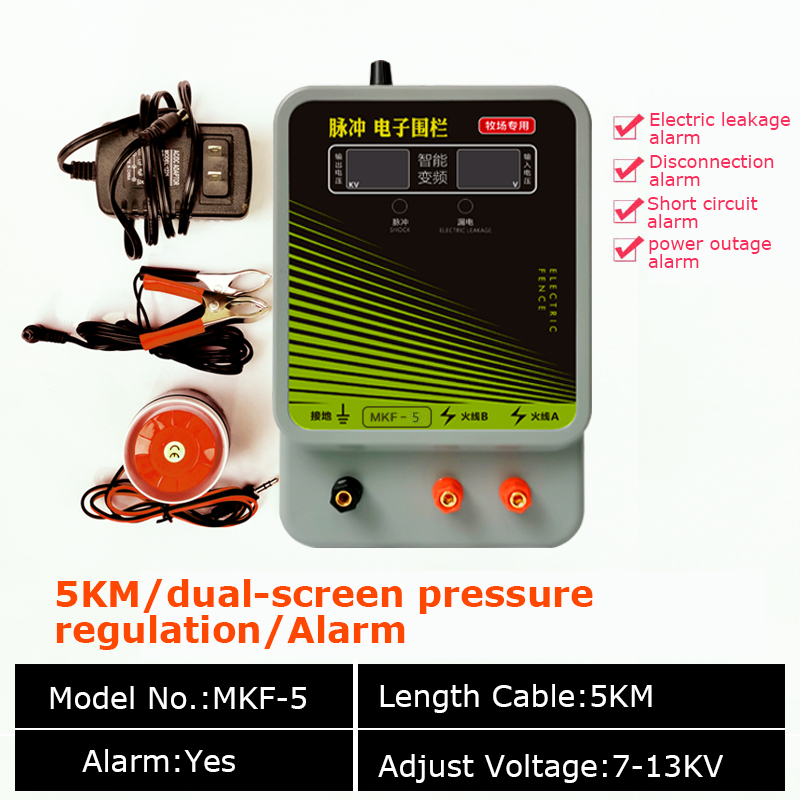

Adjustable Electric Fence Energizer
The Electric Fence Energizer generates a high-voltage pulse,when animals in the area are close to the front-end conductive cable, they will be hit by a high voltage. After the animals are hit, they will form a conditioned reflex and will only move within the area, effectively preventing the risk of animals in the area escaping. When wild animals outside the area want to invade animals in the area, they will also be blocked by conductive cables and hit by high voltage, thus effectively preventing possible invasion dangers of wild animals outside the area.
| Module No. | TW-5,TW-10,TW-20,TW-30,TW-40 |
| Cable length | 5-40km |
| Alarm | Yes |
| Size | 30*26*10cm |
| Output Energy | 2J-10J |
| Pulse Period | 1-1.2S |
| Charger | US/EU/UK/AU Charger |
The High Voltage Pulse Controller is widely used on cattle,pig,sheep farm,protect seedlings,Prevent wild boar,protect corps and so on.
1. The installed metal wires must be insulated from the support poles. Whether they are wooden piles or metal support poles, special insulators must be installed.
2. If the wire connected to the output end is connected to other metals or connected to the earth in a rainy and humid environment, it will lower the output voltage of the Adapter Electric Fence Energizer and reduce the impact on animals.
3. Effective grounding is required. If it does not rain for a long time in the north, the land is very dry, or it is a deserted place, the voltage impact will be reduced. Try to choose a slightly humid environment.
4. Farm Fence Voltage Energizer is only used in breeding and special places, and the human body is not allowed to touch pulse high-voltage equipment.
5. Weeds and branches around metal conductive cables, such as a large number of branches wrapped around the wires, need to be cleaned up in time, otherwise the voltage will be reduced and the High Voltage Pulse Controller will lose its function.Especially when it rains, the wires will be insufficiently grounded and the voltage will drop to a low level.
1. How is the output of the Electric Fence Energizer adjusted?
Turn the red button on the top to adjust the output voltage.
2. What is the adjustment range of the Farm Electric Energizer output voltage?
7-13KV
