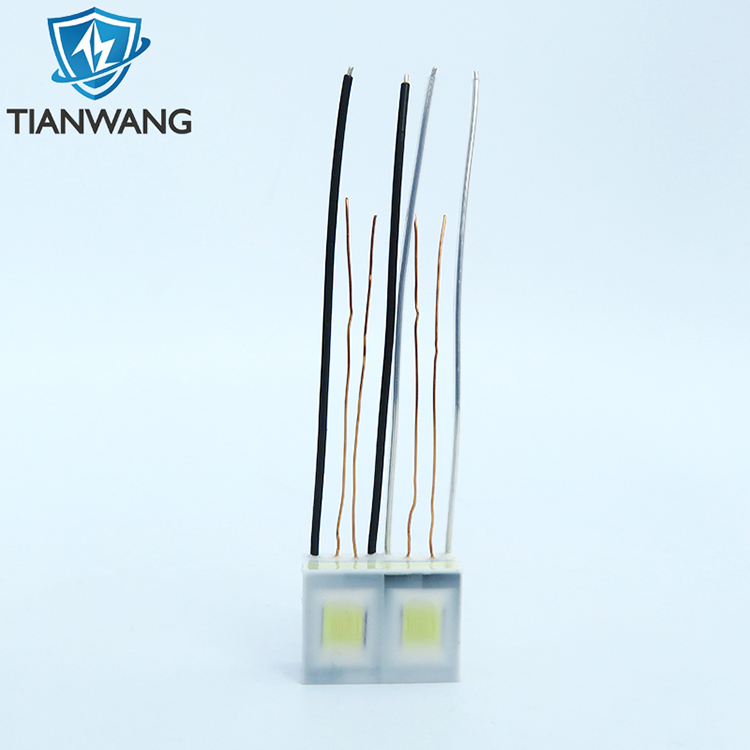

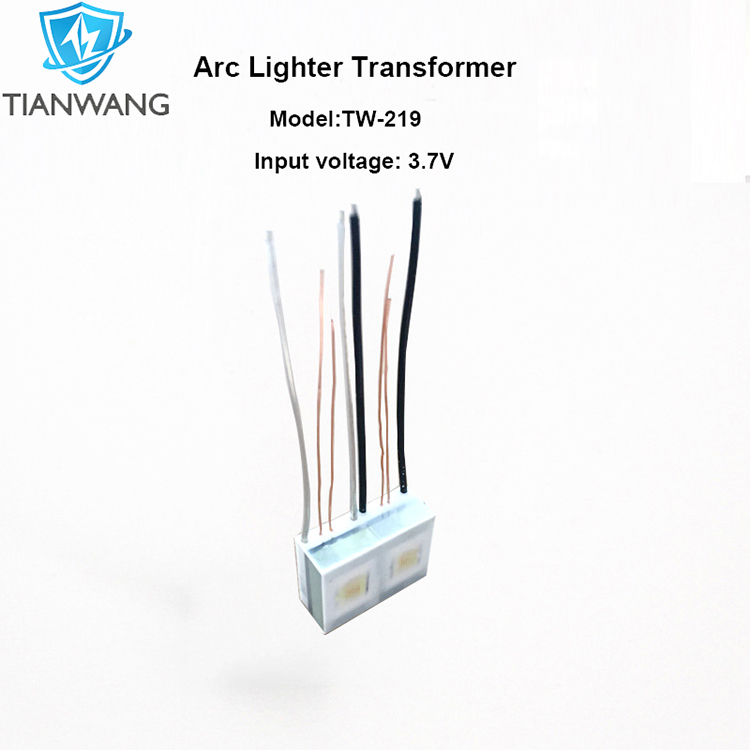

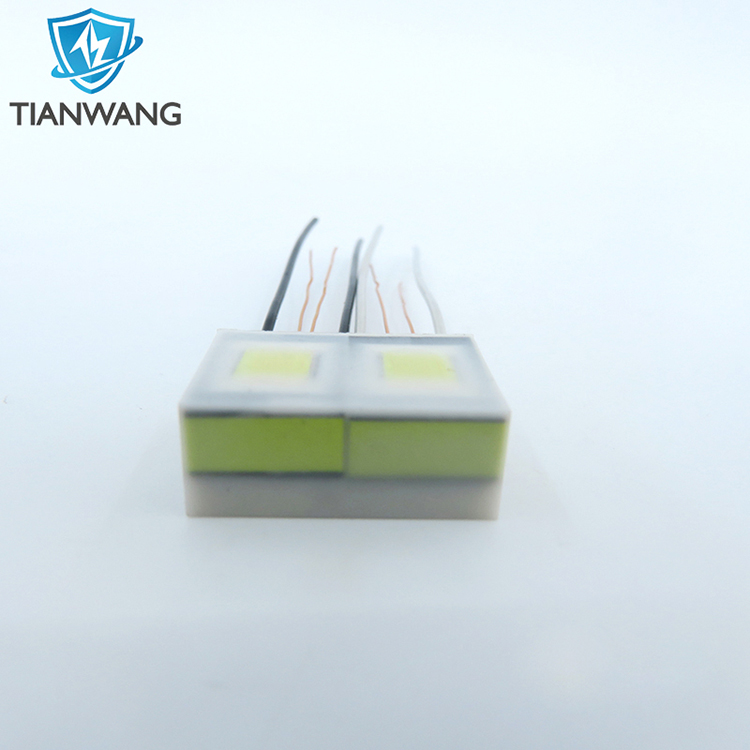

8KV High Voltage Arc Ignition Transformer
We devoted ourselves to transformer for arc lighter many years, covering most of Europe and US market.
We are expecting to become your long term partner in China.
PRODUCT INTRODUCTION
Product name | 8KV High Voltage Arc Ignition Transformer |
Model |
TW-G-DH-219 |
Input Voltage |
3.7VDC |
Output voltage |
8-8.2KVDC |
Material |
Skeleton, Copper wire, ferrite core, epoxy, insulating sleeve |
Igniting distance |
6mm |
Battery Capacity |
>200mAh |
Current |
3.5-3.9A |

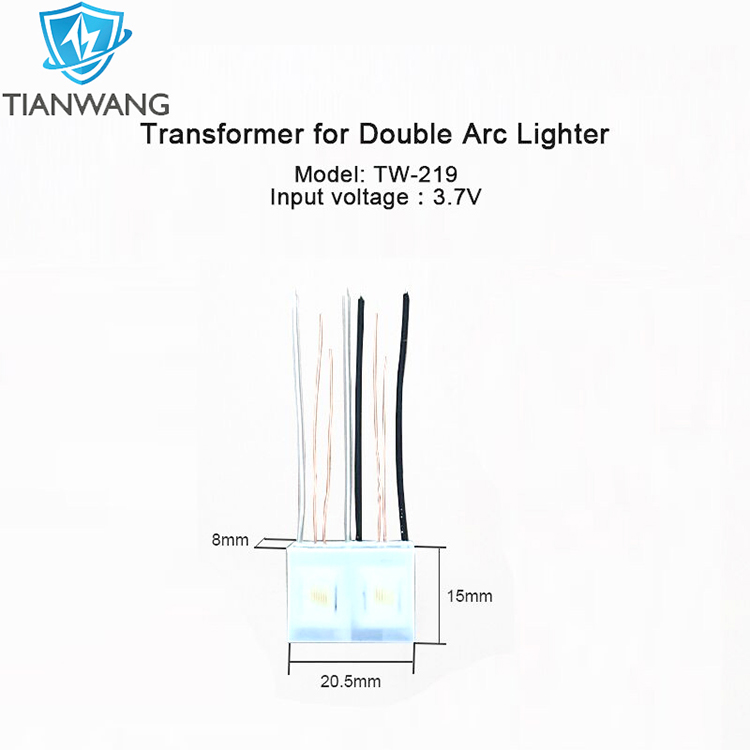

Size |
L20.6mm×W7.9mm×H15mm |
Charging voltage |
5V±10% |
Weight |
10.2g |
Feature:
01. We have a variety of sizes of ignition coil skeletons, which can meet the size requirements of most products on the market.
02. The use of high-voltage resistant, long-life electronic components, double-layer transparent Teflon insulated wire, high temperature resistance, anti-leakage, and safer.
03. The product adopts anti-aging, good insulation PP material shell, and then is vacuum sealed with epoxy resin that meets ROHS standards.
Application :
High voltage generator(arc ignition inverter, step up boost coil)

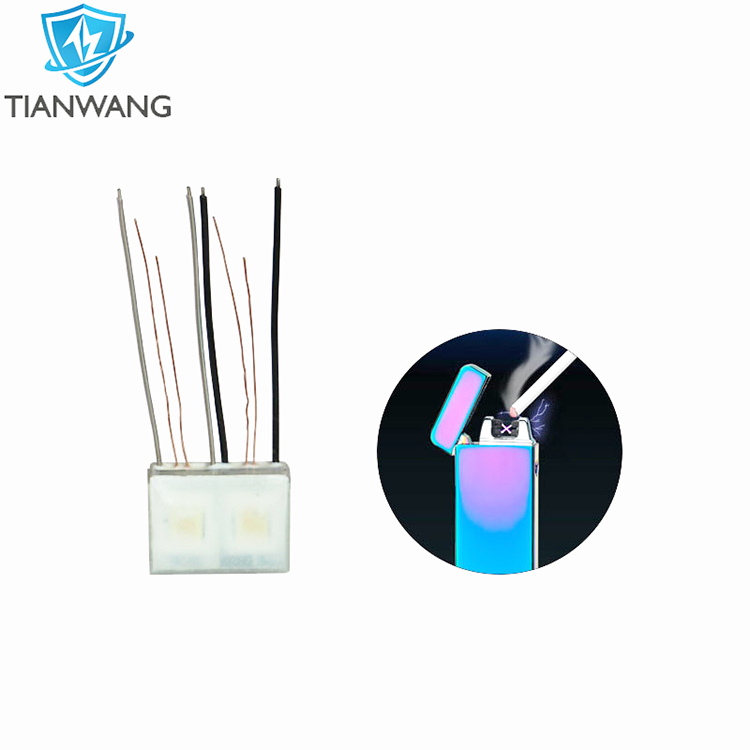

The arc ignition high voltage inverter module is widely used in double/dual arc lighters.The item suitable for school scientific research projects, large quantity and favorable price, In addition, we provide detailed material.
in winding (thick copper wire) One feedback winding (group of thin copper wire) Secondary output for high voltage (transparent single core wire)
Our factory cover 20000 square meters and totally 150 employees to promise the high frequency high voltage transformer In stock best quality control;
Our motivation is --- Do each product well, serve each customer
Our believing is --- pay attention to every detail;
Our wish is ----perfect co-operation.
Product shell and bobbin is made by injection molding machine.
auto wilding and welding connect all components.
insulate Vacuum sealing
strict and effective QA(Quality control management system)
packing
Product shell and bobbin is made by injection molding machine. Integrating multi winding taping machine and an auto soldering machine to a production line, which can be realize no labor operating.
