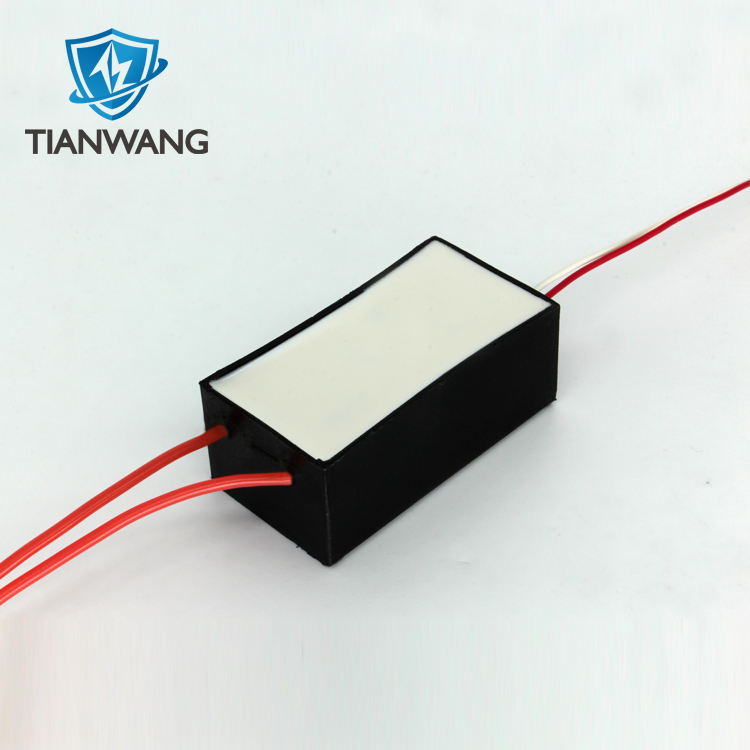

Medical Equipment module high voltage generator
PRODUCT INTRODUCTION
Product Name | Medical Equipment Ignition module high voltage generator |
Input Voltage | DC7.2V |
Output Voltage | 33KV |
Input Current | 3000mA±10% |
Dimension | 60×32×24 (mm) |
Weight | 78.6g±12% |
Input Line Diameter&Length | Φ1.2±0.03mm |
Output Line Diameter&Length | Φ 3×250 (mm) |
This security high-voltage package is widely used in electronic protective equipment, security equipment, security flashlights, tasers, high-voltage power grids, farm grid electric fences, electronic shields, protective gloves, spark plug testing, medical defibrillators and other fields.
The working principle of the high-voltage package is powered by a DC power supply with different volts, and the transformer is driven by the oscillation circuit for a boost, and the secondary boost is carried out by the doubling rectifier module, and finally the DC high-voltage discharge is formed.
Jiangsu Tianwang has been engaged in research and development projects of High voltage igniter electrostatic generator for many years, and has cooperated with many manufacturers, and has matured the development of different dimensions.We've received many good feedback in terms of quality and electrostatic effects from customers.
1.Your inquiry related to our products or prices will be replied in 24hours.
2.Rich production experience and technical capabilities, each product has been carefully produced and tested, and is committed to providing customers with good products and good services.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. The module high voltage generator adopts imported electronic components with high voltage resistance and long life, double-layer insulated wire, high temperature resistance, leakage prevention, and good safety performance.
5. Custom step up power module shell is made of anti-aging, good insulation PP material, and epoxy resin vacuum packaging in line with ROHS standard.
1. Can the module high voltage generator be ignited multiple times for a while?
Our module high voltage generator work intermittently and can be lit continuously for 2-3 minutes per job.
2. How is the custom step up power module wired?
The red line is connected to the positive pole, and the white wire is connected to the negative pole.
3. How many volts does the high voltage input have?
Our module high voltage generator conventional input has 3.7VDC, 4.8VDC, 7.2VDC/AC, 12VDC/AC, if you need other parameters, you can contact customer service proofing customization.
4. How long is the warranty of the high voltage ?
Non-man-made damage is guaranteed for one year
5. How about shipping and delivery time?
Delivery Method:
DHL, UPS, TNT, Fedex, EMS
Delivery Time:
-Sample within 1-2days.
-Wholesales 3-7days according different quantities.
-OEM 7-10days after receiving your sample confirmation.
