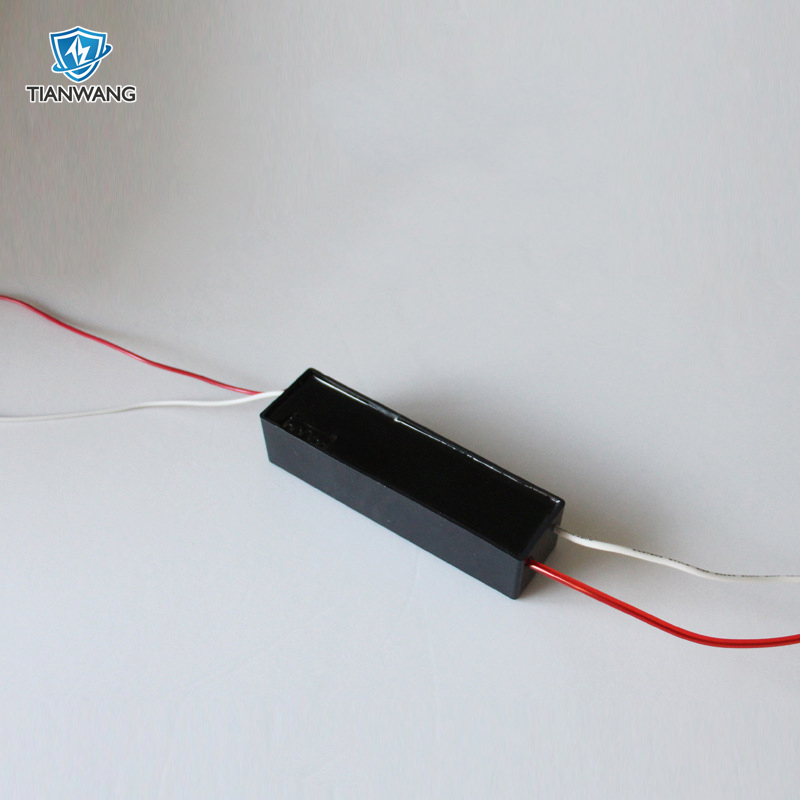

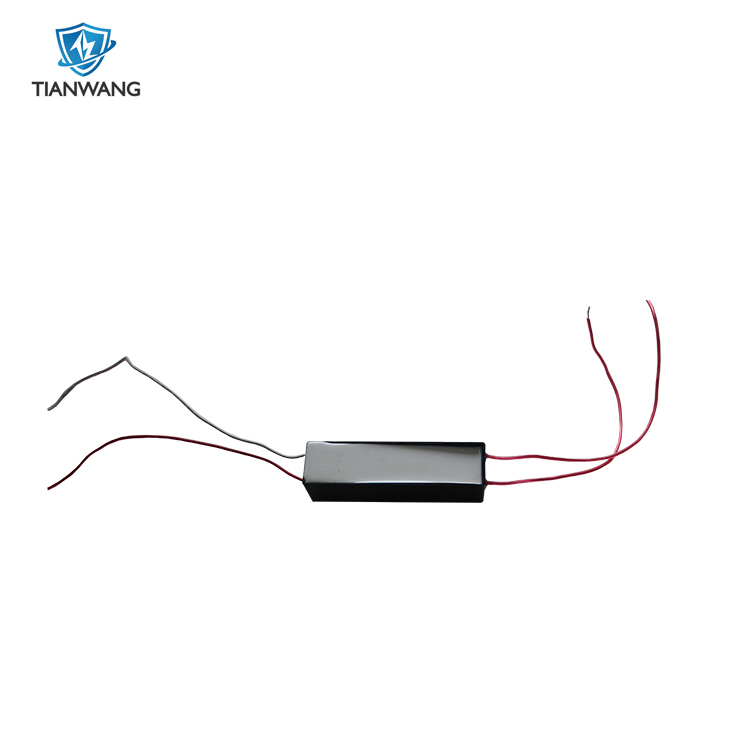

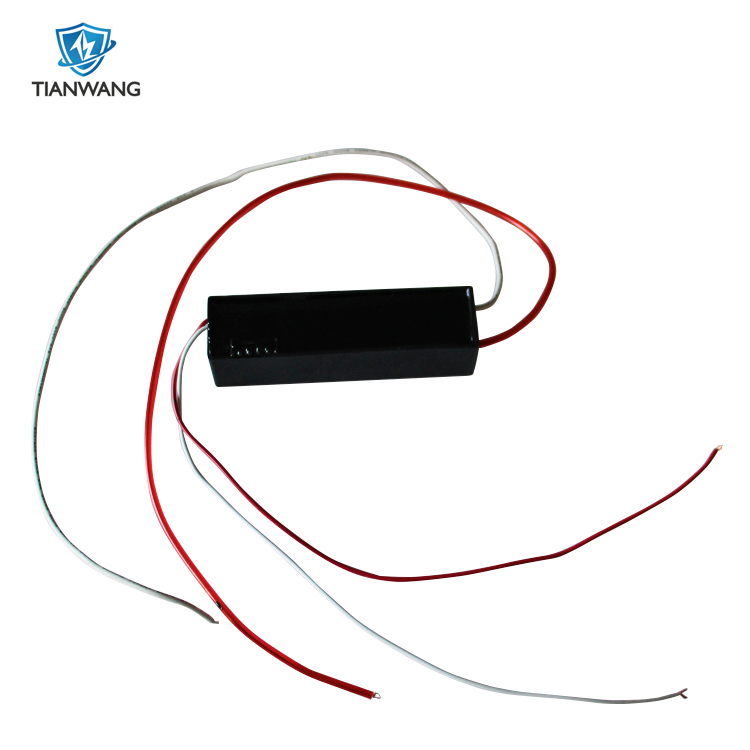

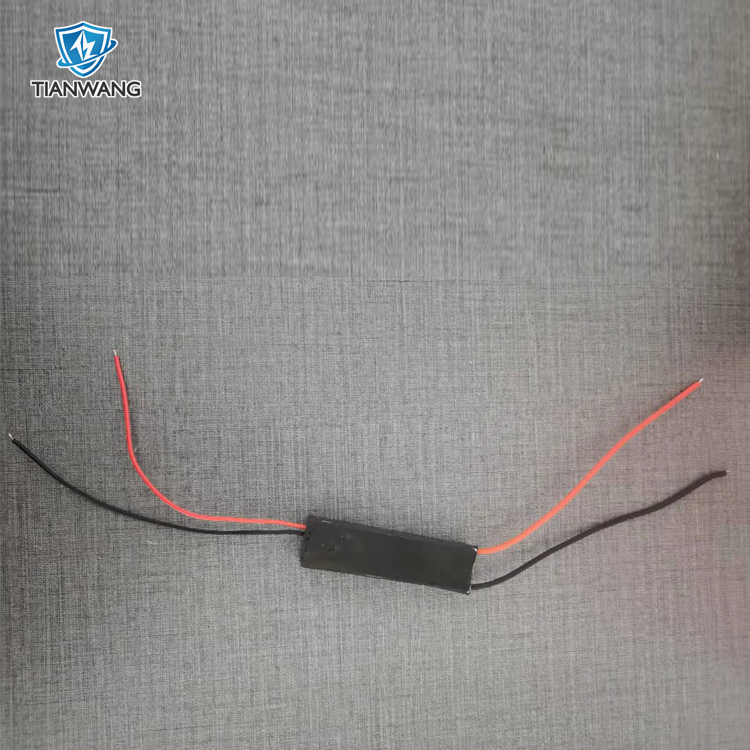

HVPS be used into electrostatic precipitator
PRODUCT INTRODUCTION
The dust in the car has electrical conductivity, if not cleaned in time, there is a certain potential safety hazard.High voltage power supply for Electrostatic Precipitatorcan be installed in transport field including automotive, buses or cars, andHV transformer for electrostatic precipitatorof Tianwang add on electrical protection + logic output can be used to make the dust removal work more efficient, safe, clean and environmental friendly.
Product Name |
high voltage electrostatic generator |
Dimensions |
Lenght : 80 mm; Widht: 22.5mm; Heigth : 18.5mm |
Supply type |
DC |
Supply Voltage |
+24 VDC |
Input current (mA) |
Without Load MAX:50mA |
Output Voltage |
6000 ~ 6400VDC |
Power |
10W |
Output current |
1.6mA |
Operating Temperature |
-15 ℃ ~ 55 ℃ |
Humidity |
20 to 80% |
Functioning mode |
Continuous functioning |
Product functioning duration |
3 month |
wire length |
120MM (customizable) |
Input wire diameter |
1.4MM |
output wire diameter |
1.8MM |
Weight |
50g |
The principle of electrostatic precipitator is to use the strong electric field generated byhighvoltagegeneratorto ionize the gas, produce corona discharge, and then make the suspended dust particles charged, and under the action of the electric field force, the suspended dust particles separated from the gas and collected dust removal device. The dust removal process can be divided into gas ionization, dust particle charged, charged particle capture, polar plate dust cleaning four parts, with high dust removal efficiency, small resistance, low energy consumption, can deal with high temperature and large smoke gas gas.
1. Q: Are you a factory or a trading company?
A: we are a factory, since 1990 began to produce a variety of high voltage packs, electronic igniters, has 32 years of r & D and production experience, offer factory prices.
2. Q: Do you offer custom products?
A: We accept customization and provide technical parameters.
3. Q: How many volts does an ELECTROSTATIC high voltage pack have?
A: 12VDC, 24VDC, 3.7VDC, 4.8VDC, 7.2VDC etc can also be customized as required.
4. Q: How long can the ELECTROSTATIC high voltage pack be ignited?
A: Can be continuously ignited for more than 12 hours.
5. Q: What can electrostatic high voltage packs be used?
A: Electrostatic spraying, electrostatic adsorption, electrostatic disinfection, electrostatic dust removal, etc.
