PRODUCT INTRODUCTION

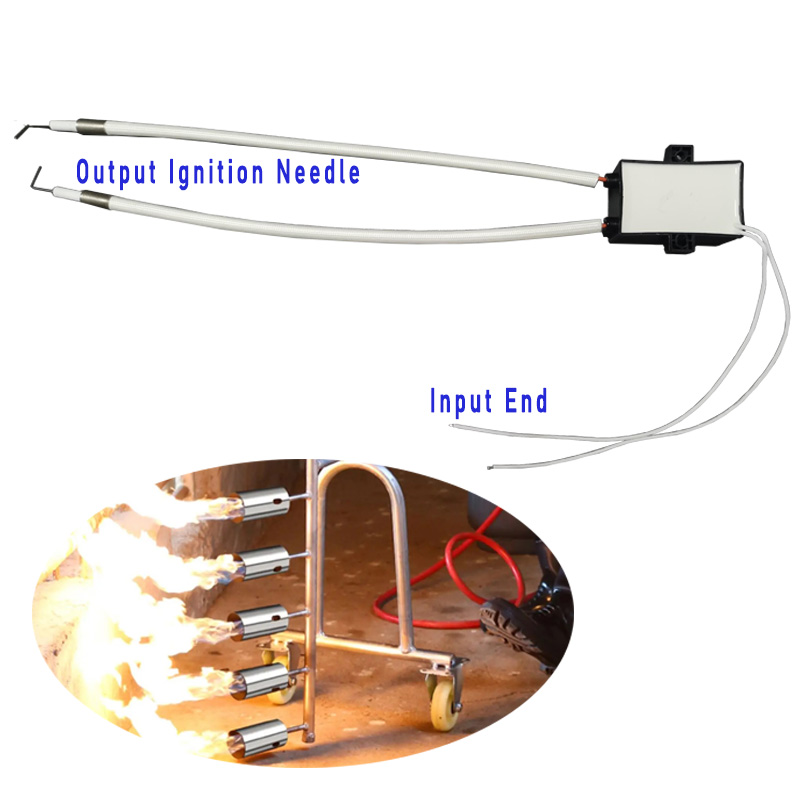

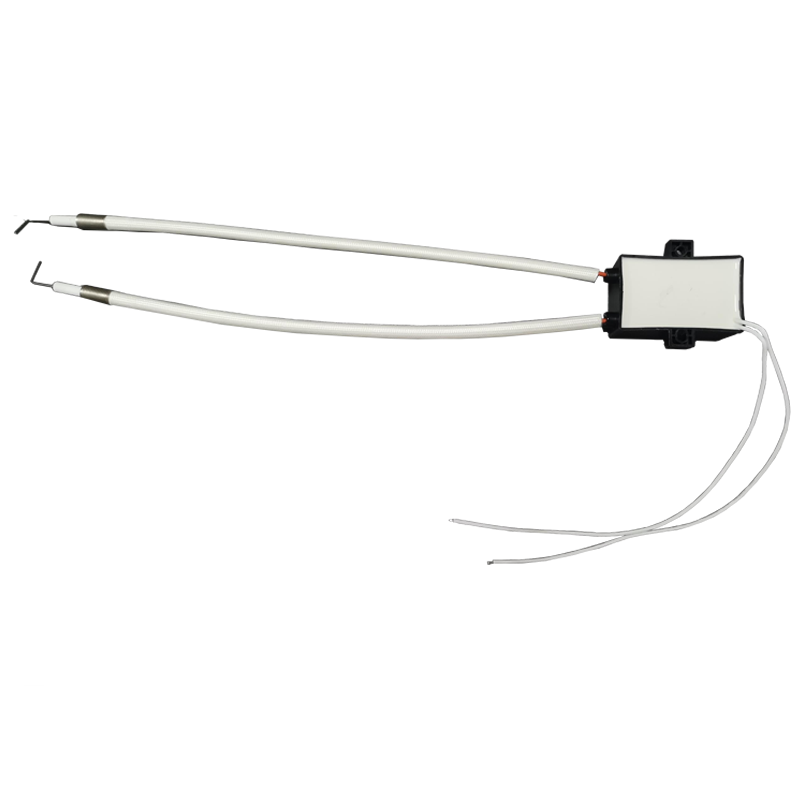

This is a Flame Thrower Gas Gun Igniter which uses 12VDC for input and produces 12-15KVDC output voltage.We add two electrodes(Ceramic ignition needle) on the output side for ignition,and this unit is capable of running continuously for 4-8 minutes uninteruppted at a time.

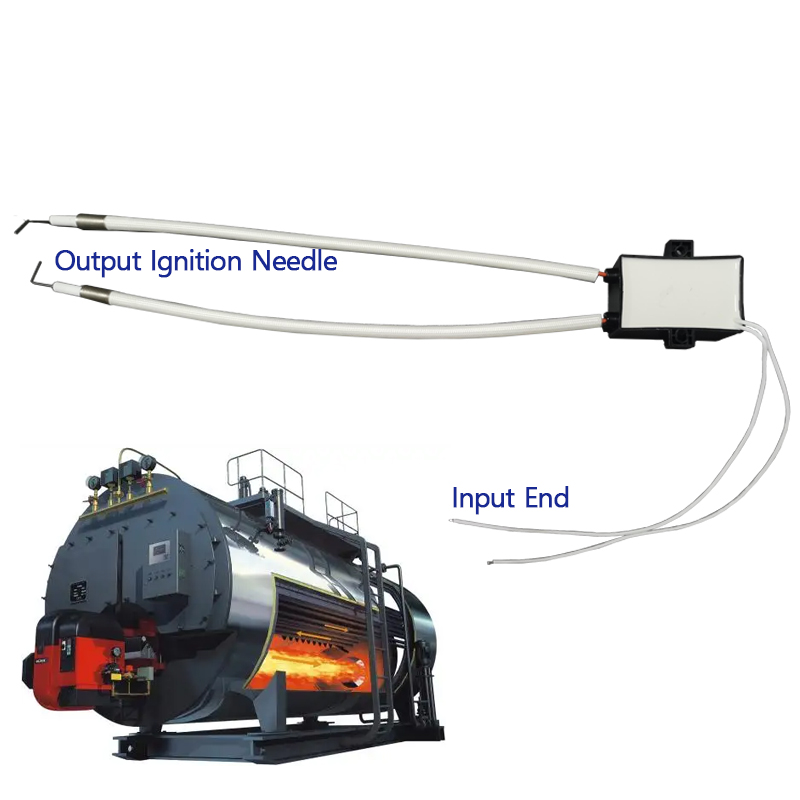

Applications:Flame-thrower,Boiler,Flame Torch,Flame Thrower Gas Gun
Product name | Flame-thrower Ignition Module |
Model |
TW-WN-01 |
Input Voltage | 12V |
Output Voltage | 12-15KVDC |
Distance Distance | 8-12MM |
Size | L66.5*W61.5*H30.5MM |
Working Current | 100mA |
Weight | 165±1g |
Input&Output Wire Length | 360mm(Customizable) |
Note | *The above parameters are manual/instrument measurement, there will be 10% error, please understand. |
Features: Flame Torch Electronic Ignition, the input does not distinguish between positive and negative terminals.
Working mode: When the power is turned on, the electric spark is generated, and the spark will continue to ignite as long as the power supply is not turned off.

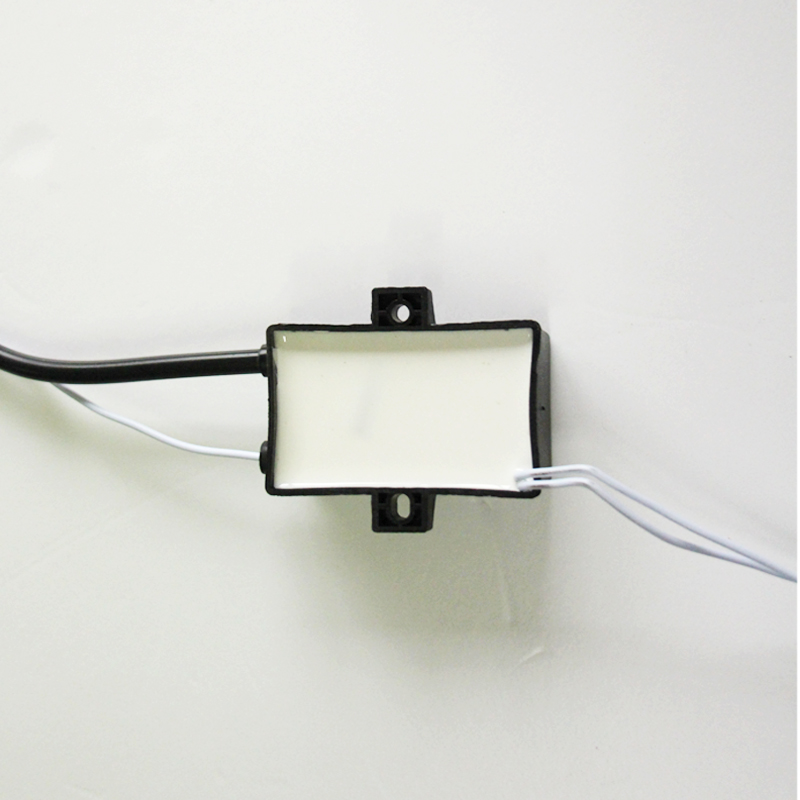

Packaging: epoxy resin vacuum packaging, moisture, shock, corrosion, temperature resistance.
Scope of application: Widely used in various oil and gas burners, fog machine, various wedding equipment.
This module is a high-tech inverter for scientific production, the finished module of transformer/booster
After inputting 12VDC voltage at the input terminal, tens of volts DC voltage can be obtained at the output end.
Can be used as a high-voltage source in scientific experiments, electronic salutes, electronic instruments, anion generators, and scientific productions.
This module is manufactured using the principle of Tesla coil and outputs high-voltage pulse current, small volume and high efficiency.
Q: How long does the gas ignition module work?
A: It can be fired continuously for several minutes at a time.
Q: How to distinguish input and output lines and how to wire them?
A: The color of the input line is generally the same, regardless of the positive and negative poles. The color of the line can
also be customized according to customer requirements.
Q: How many pieces are there?
A: The igniters are all packed in a standard customized outer carton, 50-100 pcs per carton.
Q: Which shipping way can you provide?
A: We can provide shipping by sea, by air and by express delivery.
Q:Do you offer OEM service and can you produce as our drawings?
A:Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawing
