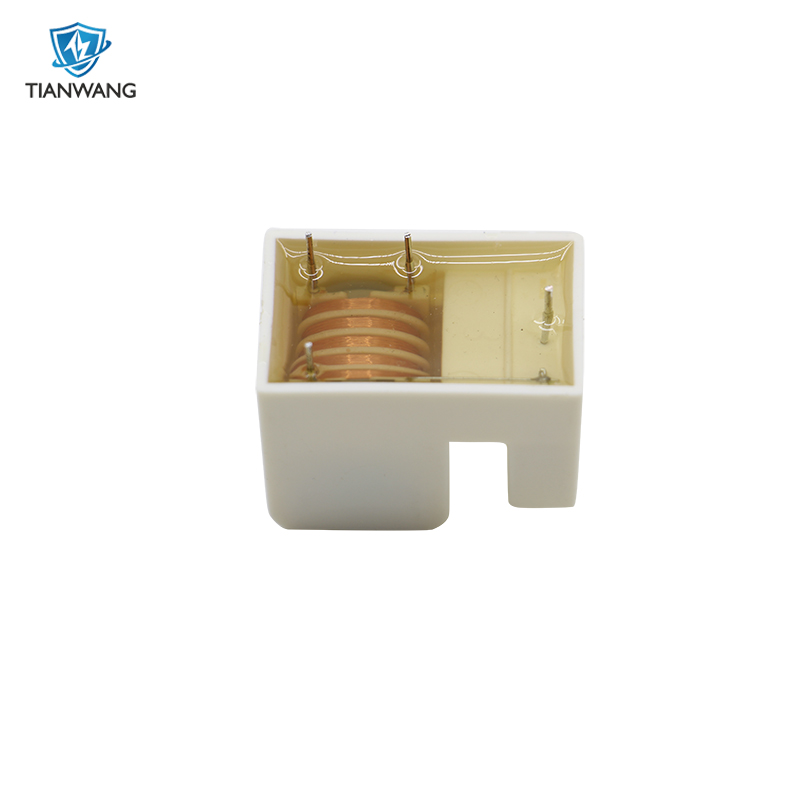

ignition coil for gas stove

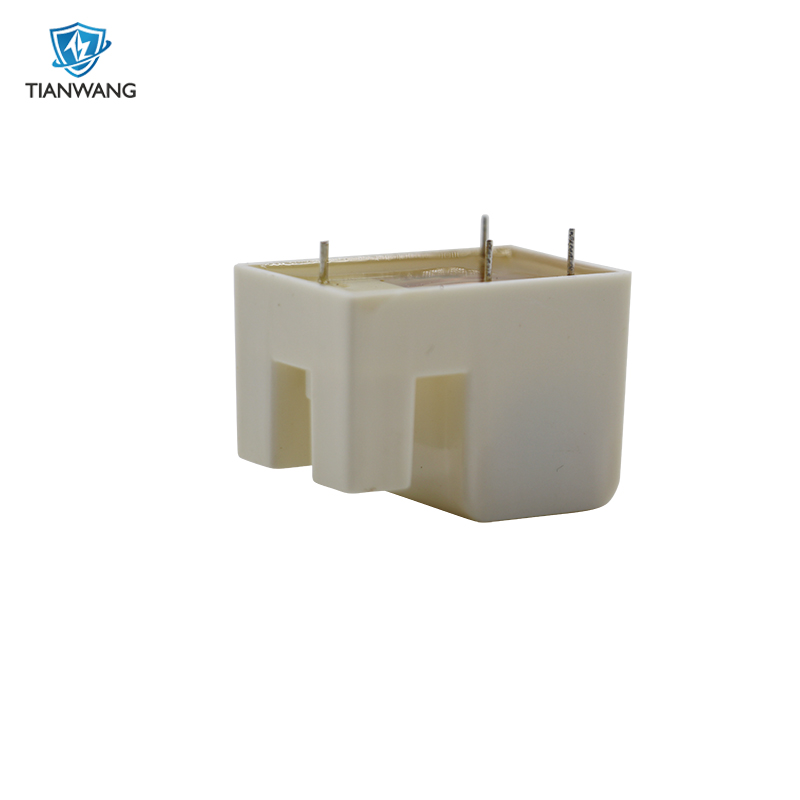

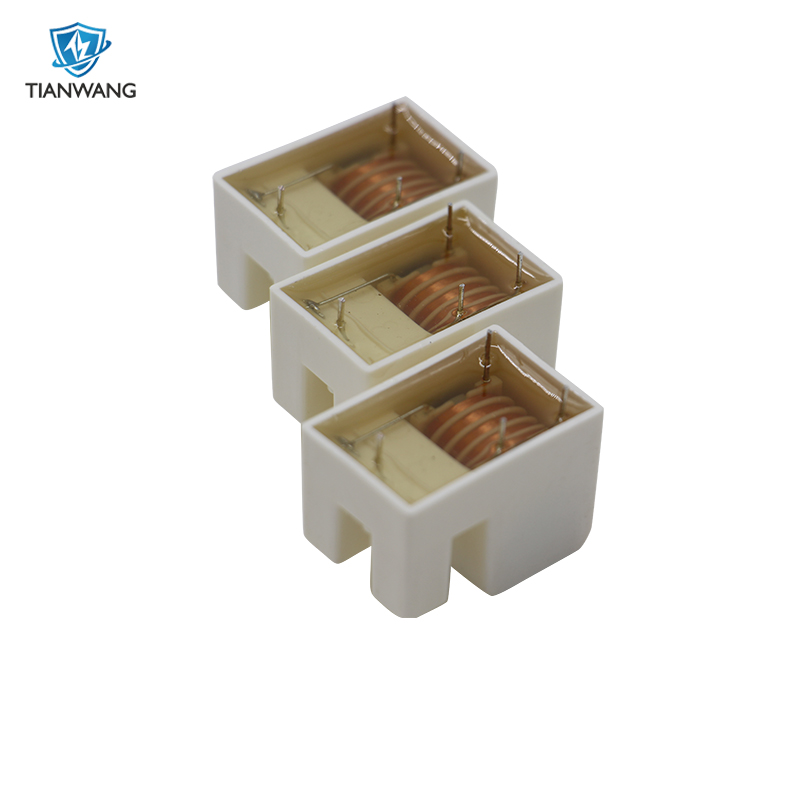

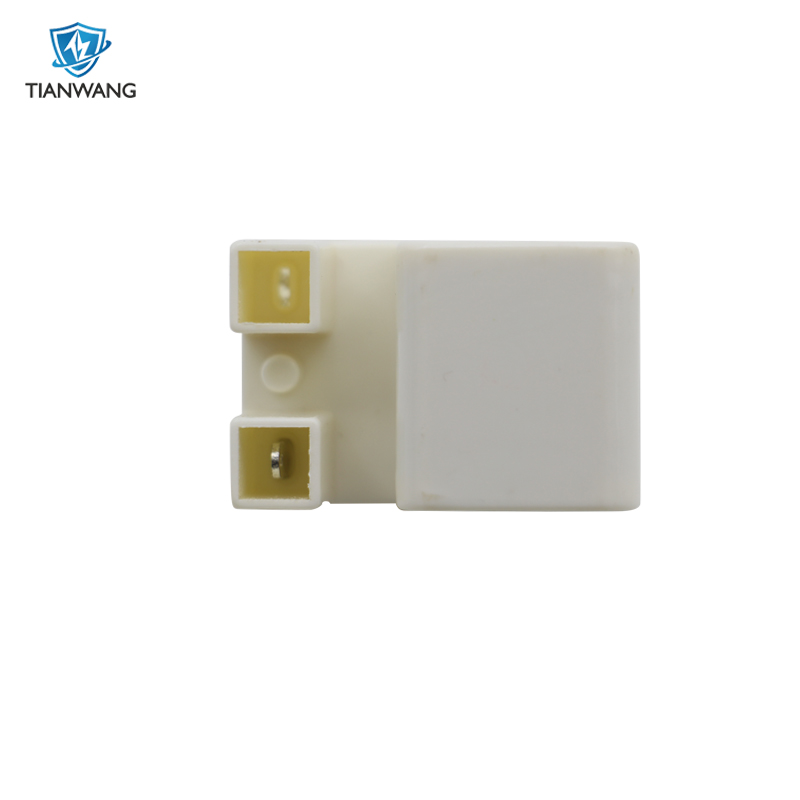

Ignition coil transformer, also know as High voltage ignition coil ,high voltage coil,high voltage package,high voltage flyback ignition transformer,ignition coil for gas stove.The main functions of the transformer are voltage conversion,impedance transformation,isolation and voltage regulation.The transformers are widely used in automatic control of burners,and there are many forms and types.
|
Apecification |
|
|
Magnetic Core |
Ferrite Core,Mn-Zn/Ni-Zn |
|
Wire |
Copper Wire |
|
Phase |
Single,three Phase |
|
Coil structure: |
Toroidal |
|
Adhesive |
epoxy resin |
|
Storage temperature |
-40--125℃ |
|
Working Temperature |
-25--105℃ |
|
Output Voltage |
12-15KV |
|
Temperature Rise |
up to 40 ℃ |
|
Resistance to Solder Heat: |
260℃,10S |
|
Package |
Standard Carton |
High voltage flyback ignition transformer come in a variety of sizes and shapes to fit different applications.For example,there are ignition coils for cars, motorcycles, boats, and small engines.They can also be used in gas stoves, grills, and other appliances that require a spark for ignition.
Ignition coil for gas stove are an essential component in many combustion engines and gas appliances. They provide efficient and reliable ignition, ensuring safe and optimal performance. With their durability and versatility, high voltage coils are a cost-effective solution for anyone in need of efficient ignition.
1.Are you a factory or trading company?
We are a factory,we are located in JingJiang,Jiangsu China,near Shanghai.
2.How to install the pulse spark igniter?
The pulse spark igniter is usually installed on the gas appliances, such as stoves and ovens. It can be easily fixed by screws and brackets. Before installation, make sure to read the installation manual carefully and follow the instructions step by step.
