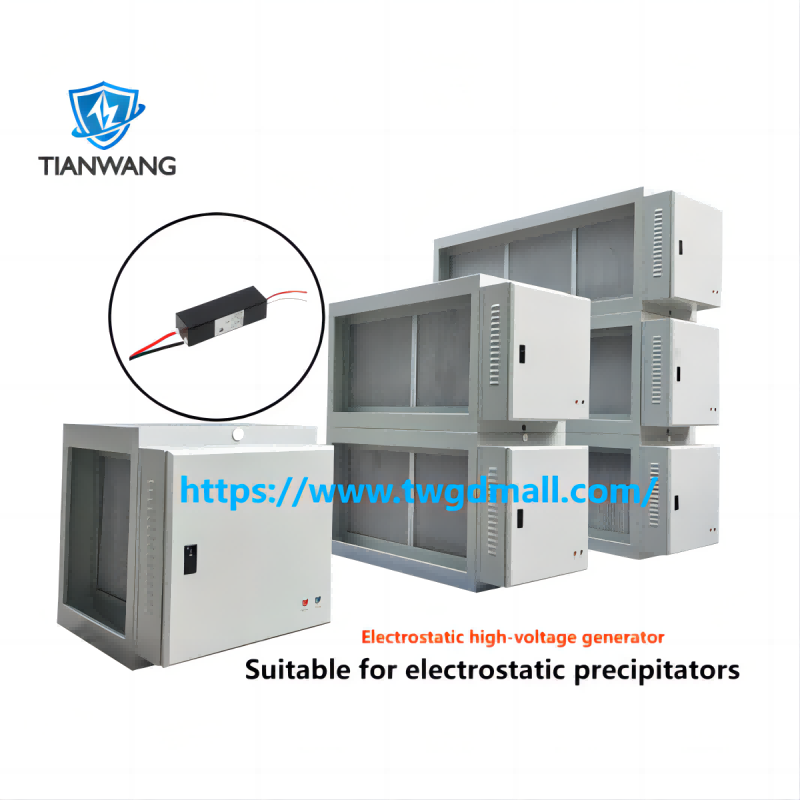

The Role of Electrostatic High Voltage Generators in Electrostatic Precipitators
PRODUCT INTRODUCTION
Here are the functions and working principles of the electrostatic high-voltage generator in an electrostatic precipitator:
-
Electric field generation: The electrostatic high-voltage generator produces a high voltage to create a strong electric field between the electrodes within the electrostatic precipitator. This electric field is typically a direct current (DC) field used to attract and drive the movement of dust particles.
-
Charge separation: When dust particles pass through the electrostatic precipitator, they acquire charges, usually negative charges, due to the influence of the strong electric field. This charge separation occurs through the transfer of electrons, with negatively charged dust particles attracted to the positive electrode and positively charged particles attracted to the negative electrode.
-
Dust capture: Once dust particles with charges are drawn to the electrodes, they move along the electric field lines and eventually deposit on the surface of the electrodes. This process captures and separates dust particles from the gas flow, effectively achieving dust removal.
-
Cleaning cycle: Over time, the electrode surfaces accumulate more and more dust, reducing the efficiency of the electrostatic precipitator. Therefore, the electrostatic high-voltage generator often includes a cleaning cycle in which the charges on the electrode system are neutralized, allowing the captured dust particles to dislodge and collect in the bottom dust collection device.
PRODUCT PARAMETERS

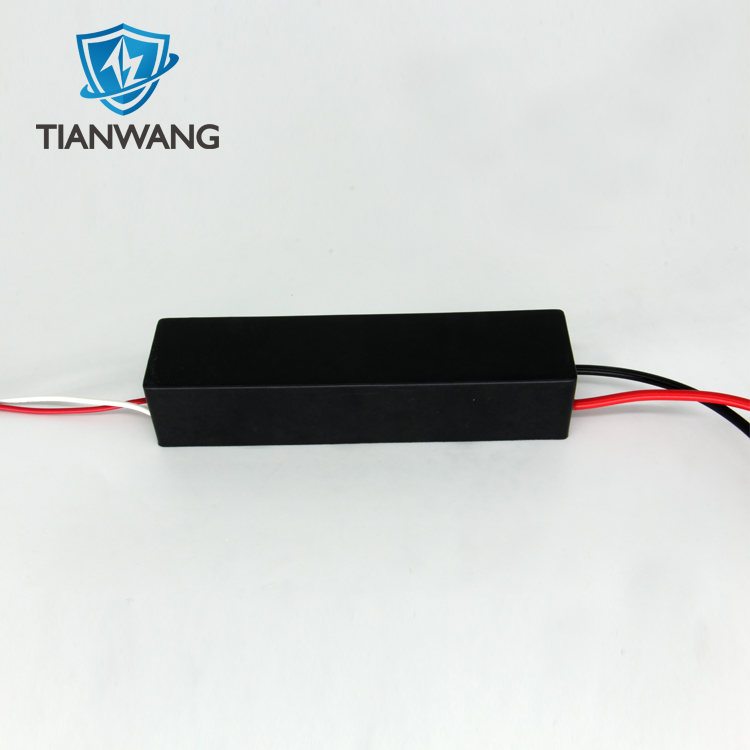

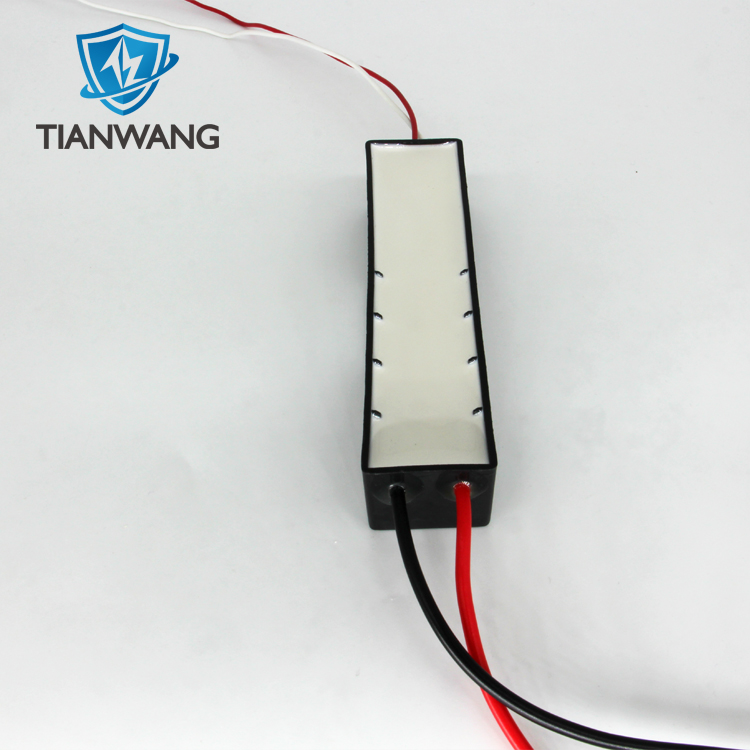

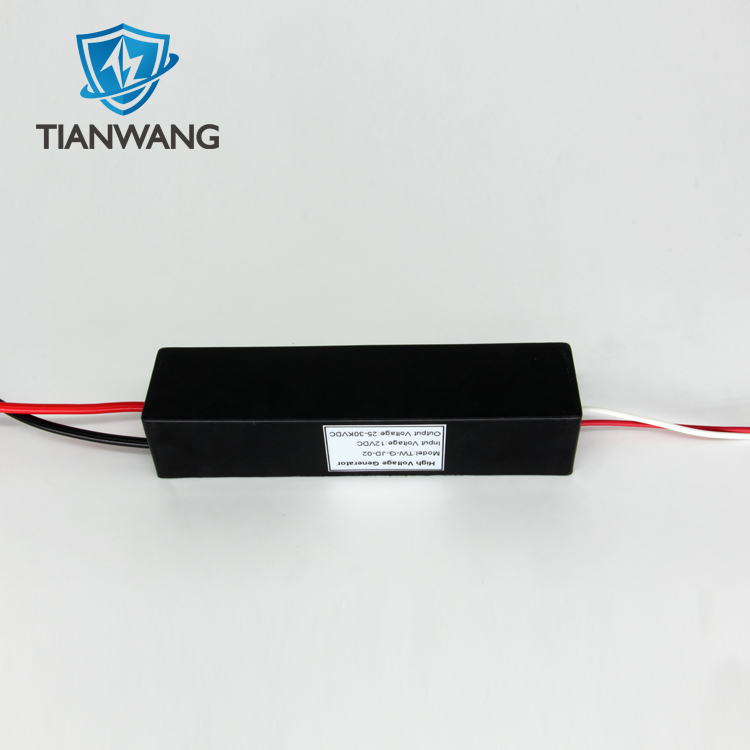

Product Name | HV transformer for electrostatic precipitator
|
Product Size |
79.5*22*18.5mm |
Input Voltage | 220V |
Pulse Ignition Distance | 5-8mm |
Pulse Discharge Frequency | 50Hz |
Output high Voltage pulsed | ≥10KV |
Working Current | 1-5mA |
Input Wire Distance | 1.8 ± 0.5mm |
Output Wire Distance | 2.5 ± 0.5mm ; 1.8± 0.5mm |
Input Wire Length | 200mm |
Output Wire Length | 150mm ; 130mm |
The internal protection circuit of the electrostatic high-voltage power supply has been added. This high-voltage transformer used for electrostatic precipitators has efficient ignition performance, and the high-voltage generator used for electrostatic precipitators continues to ignite for several hours without damage. The high-voltage power supply of electrostatic eliminators can be used in different applications based on its electrical characteristics.

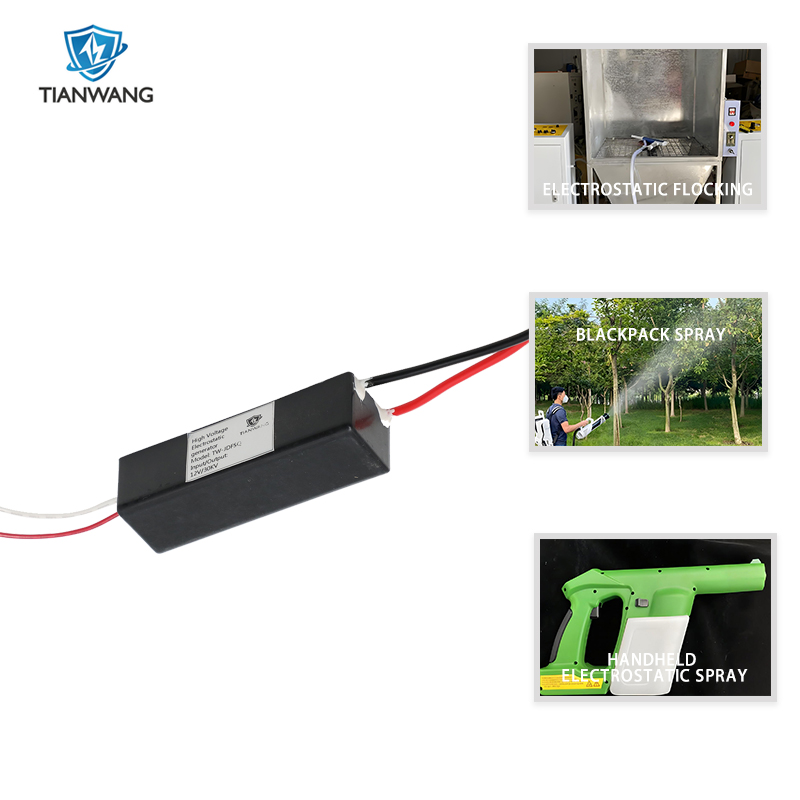

Electrostatic high-voltage generators are not only applicable in electrostatic precipitators but also in various other end products and applications, including:
1. **Electrostatic spraying equipment:** Electrostatic high-voltage generators are used in electrostatic spraying devices to generate high voltage, enabling the paint particles to carry electrostatic charges. This results in more even deposition of paint on the target surface, reducing wastage of paint.
2. **Electrostatic dust removal fans:** These fans utilize electrostatic high-voltage generators to attract and capture tiny particles suspended in the air, such as fine dust and pollen, improving indoor air quality.
3. **Electrostatic drying equipment:** In industrial processes, electrostatic high-voltage generators can be used in drying processes by introducing electrostatic charges on the surface of materials, promoting rapid evaporation of moisture and enhancing drying efficiency.
4. **Electrostatic vacuum cleaners:** Some models of household and commercial vacuum cleaners use electrostatic high-voltage generators to enhance the performance of the vacuum cleaner by adsorbing and removing dust and dirt.
5. **Electrostatic odor purifiers:** These devices use electrostatic high-voltage generators to attract and remove odor molecules and particles from the air, improving air quality and purifying indoor environments.
6. **Electrostatic sterilization equipment:** Certain medical devices and air purifiers utilize electrostatic high-voltage generators to help remove bacteria and viruses from the air, maintaining hygiene and health.
7. **Electrostatic adhesion machines:** In some industrial processes, electrostatic high-voltage generators are used to manufacture products with electrostatic adhesive properties, such as adhesive labels or printing materials utilizing electrostatic adhesion.
Q: How high is the voltage in the high-voltage power supply for an electrostatic precipitator?
A: The voltage level varies depending on the specific application, but it typically ranges from a few kilovolts to several tens of kilovolts. The precise voltage level depends on the size of the electrostatic precipitator, performance requirements, and the characteristics of the air being treated.
Q: Does the high-voltage power supply require maintenance and upkeep?
A: Yes, high-voltage power supplies typically require regular maintenance and upkeep. This includes inspecting the condition of the electrode system, cleaning electrode surfaces, ensuring the safety of wires and connections, and replacing any worn components. This helps maintain the performance and longevity of the high-voltage power supply.
Q: How much energy does the high-voltage power supply consume?
A: High-voltage power supplies usually require relatively low power to maintain the high voltage, but actual consumption depends on the workload and the efficiency of the equipment. For economic and environmental considerations, it's advisable to choose an efficient high-voltage power supply.
Q: In which industries is the high-voltage power supply in electrostatic precipitators used?
A: Electrostatic precipitators and their high-voltage power supplies are widely used in industrial sectors, including power plants, steel mills, chemical factories, wood processing, food production, medical equipment manufacturing, and more. They are used to control and reduce particulate emissions into the air.
