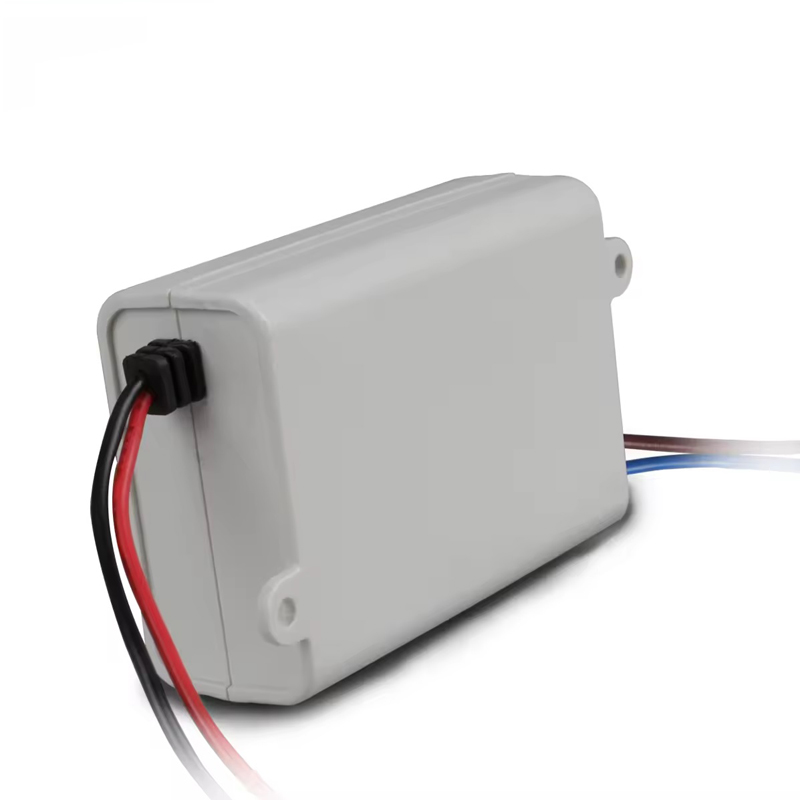

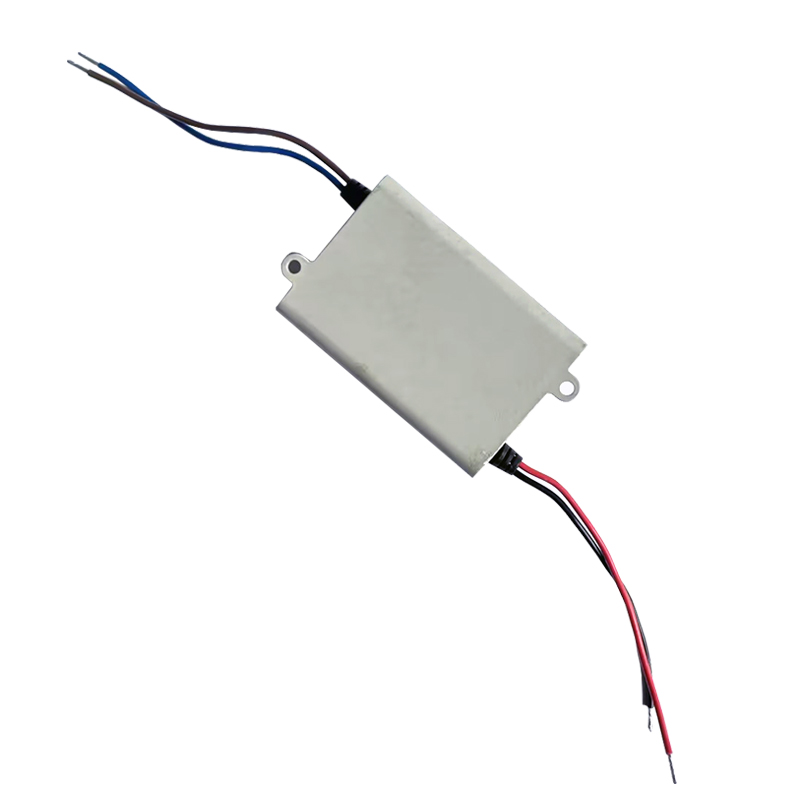

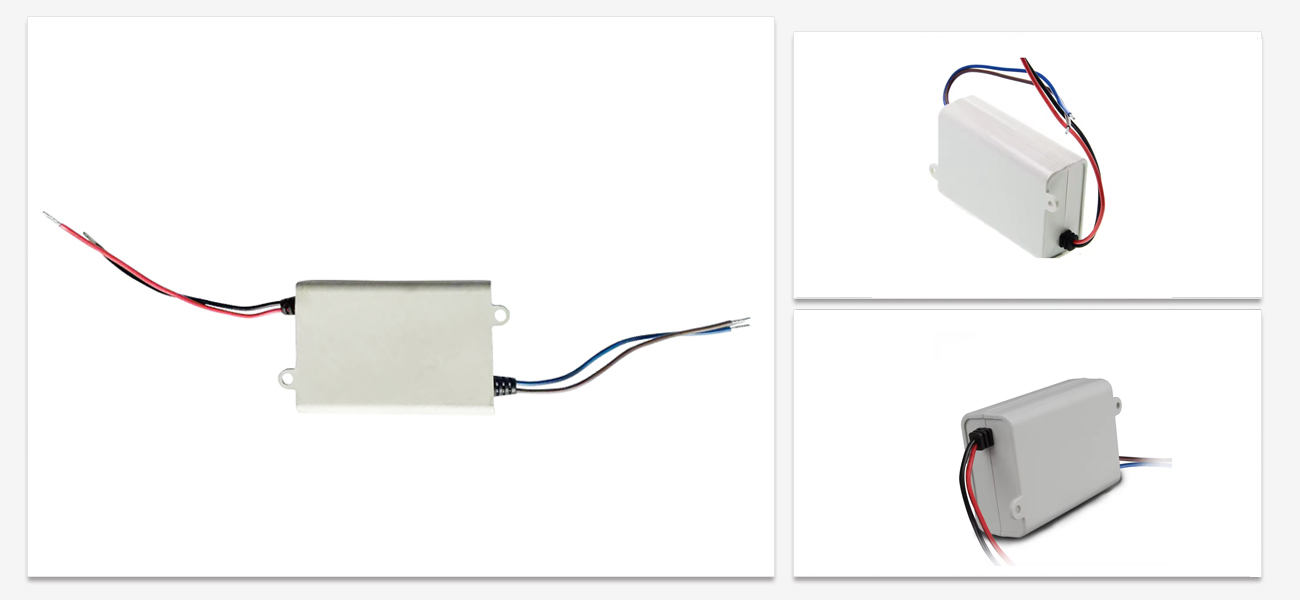

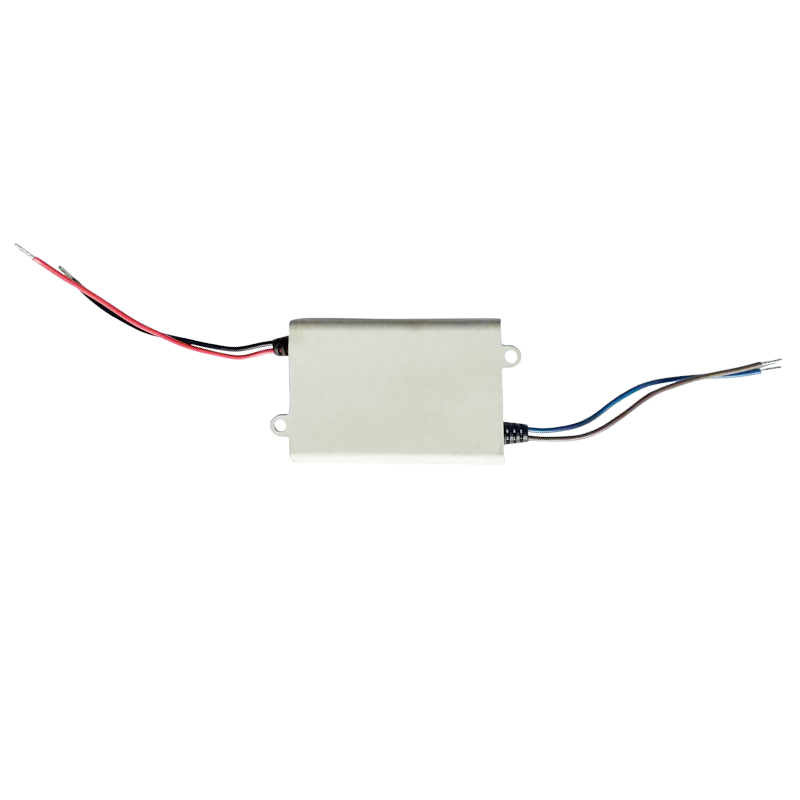

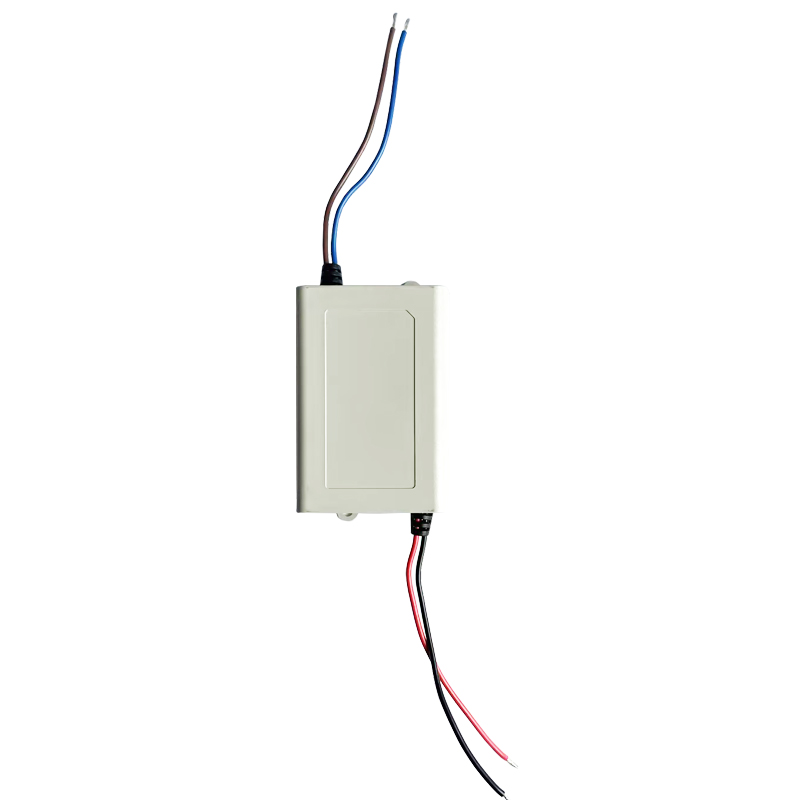

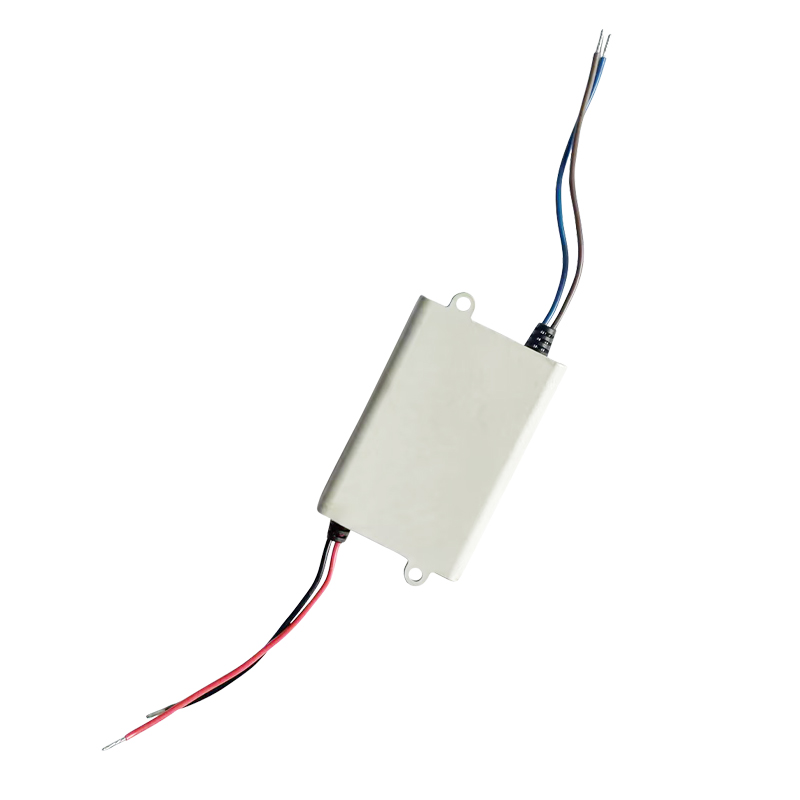

TW-35-15 LED Driver Switching Power Supply
PRODUCT INTRODUCTION
An LED driver switching power supply is an essential component in LED lighting systems. It converts the incoming AC (alternating current) voltage from the mains into a stable DC (direct current) voltage suitable for LEDs, ensuring efficient and safe operation.
Product Name |
High Quality 35W 15V Indoor LED Driver Transformer Single Output Switching Power Supply Step Up Down Transformer |
|
Input |
DC Voltage |
15V |
Set up,Rise Time |
1500ms,40ms/230VAC 1500ms/115VAC at full load |
|
Hold Up Time |
20ms/230VAC 12ms/115VAC at full load |
|
Output |
Voltage Range |
90-264VAC 127-370VAC |
Frequency Range |
47-63HZ |
|
Efficiency |
84% |
|
AC Current |
0.5A/230VAC 0.75A/115VAC84% |
|
INRUSH CURRENT |
COLD START 45A(twidth=440s measured at 50% Ipeak) at 230VAC |
|
MAX. No. of PSUs on 16A |
6 units (circuit breaker of type B) / 10 units (circuit breaker of type C) at 230VAC |
|
CIRCUIT BREAKER |
||
LEAKAGE CURRENT |
0.25mA / 240VAC |
|
Production |
Over Load |
110%~160% rated output power |
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
||
Over Protection |
17.25--21V |
|
Protection type : Shut down o/p voltage, re-power on to recover |
An Transfomer Power Supply is a crucial component in LED lighting systems,
providing the necessary power conversion and regulation to ensure the LEDs operate efficiently and safely. Here are the key features and applications of an LED Driver Switching Power Supply:
Efficiency:
Our switching transfomer are highly efficient, often exceeding 84%,
which reduces energy consumption and heat generation compared to linear power supplies.
Residential and Commercial Lighting:
Used in LED bulbs, downlights, and panel lights.
Display and Signage: Drives LEDs in digital displays, billboards, and advertising signs.
Control Circuitry: Regulates the output voltage/current by adjusting the switching frequency and duty cycle.
1.Is customization available for the Switching Power Transfomer specifications?
Yes.Please feel free to tell us your specification,we can customized as your specification.
2.What is the minimum order quantity for the LED driver?
Please feel free to contact with us tw@twgdmall.com,I will send the details to you.
3.Are you factory or trade company?
We are the step up down transfomer factory.We have production high voltage generator for more than 30years,our factory is located in No.5 Huaxiang Road Chengnan Development Zone,Jingjiang City,Jiangsu Province.
