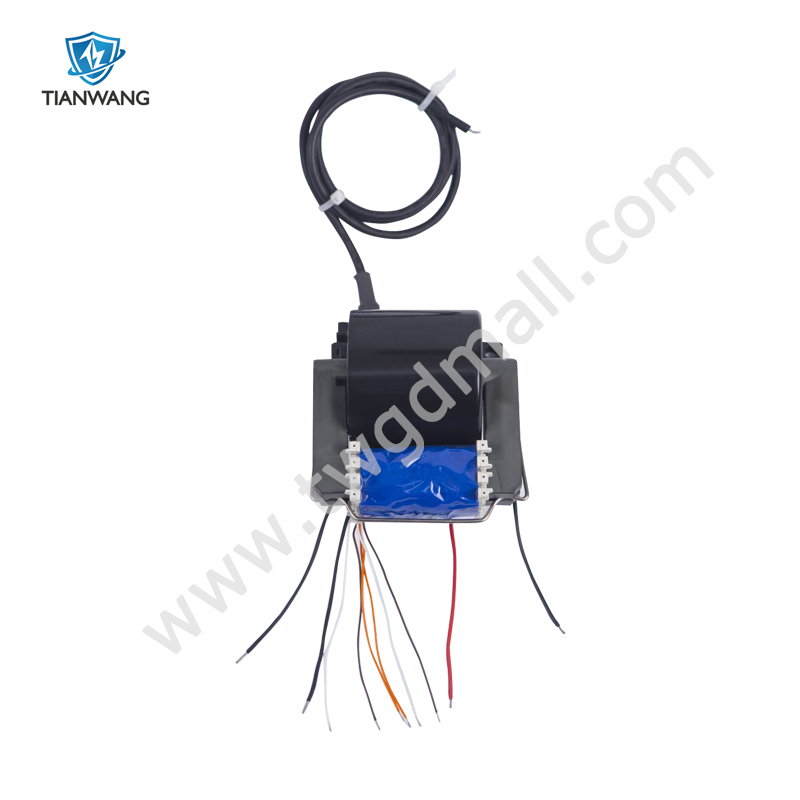

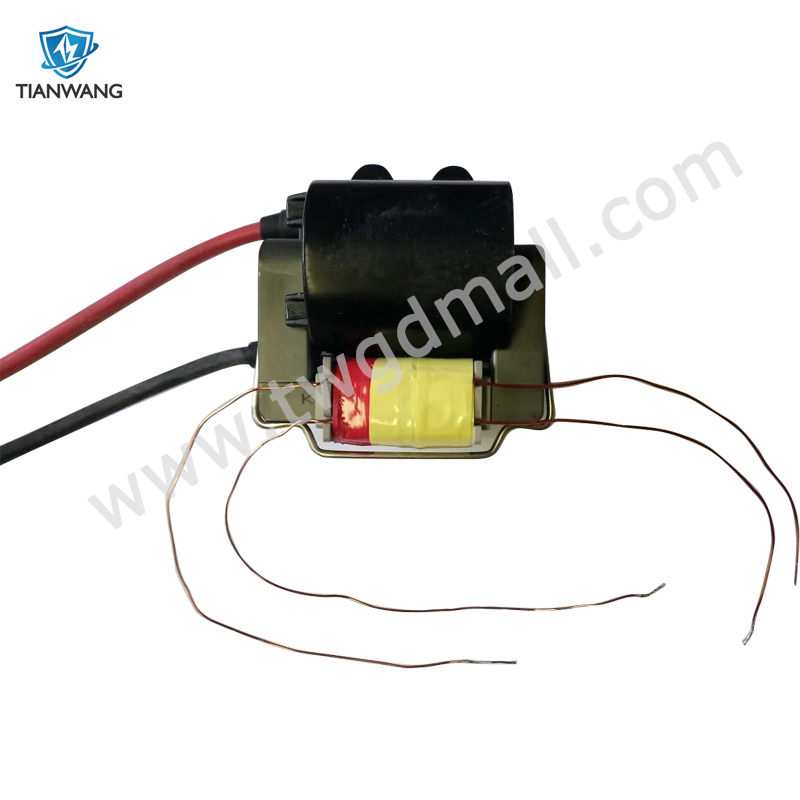

High Voltage Ignition Transformer for Range Hood
When a cooking appliance starts, ignition must be instant — no lag, no hesitation.
Our 300W high-voltage ignition transformer is engineered for kitchen range hoods, integrated stoves, gas burners and industrial cooktops, delivering reliable spark generation with long-term durability and consistent high-voltage output.
Why This Transformer Matters
Ignition failure is one of the main reasons for cooker malfunction.
This module solves that — with strong arc discharge, fast response and years of stable operation.
✔ High-energy ignition for rapid flame start
✔ Stable performance under continuous heat & oil fume exposure
✔ Low-noise waveform for better combustion efficiency
✔ Compact U-core design for easy system integration
A small component — that controls the first spark of every meal.
| Item | Specification |
| Power | 300W |
| Type | Single-Phase High-Voltage Transformer |
| Core Shape | U-Core Ferrite Structure |
| Frequency | 20-50KHZ |
| Primary Inductance | 170-170mH |
| Primary Wire Diameter | 0.5-0.6mm |
| Waveform | Meander |
| Secondary Output 1 | 20V P-P/0.7A/0.5mH/0.5-0.6mm Wire |
| Secondary Output 2 | 30KV DC/0.005A Max |
| HV Cabel | 0.5m Integrated High-Voltage Line |
| Note | All the parameters can be customized |
| Feature | Benefit in Real Use |
| 50 W High-Output Power | Strong and instant ignition even in high-humidity kitchens |
| 25–50 kHz Frequency Range | Efficient energy conversion with minimal loss |
| Meander Voltage Waveform | Clean ignition pulse & extended electrode life |
| Dual Secondary Output Design | 20V low-voltage circuit + 30kV high-voltage ignition line |
| Encapsulated HV Structure | Resistant to moisture, oil, temperature shocks |
| 0.5 m High-Voltage Cable Included | Safe, stable discharge path for easy installation |
Built for Kitchen Professionals
Whether you manufacture range hoods, integrated stoves or gas ignition systems, this transformer delivers the stable spark performance required by premium appliance brands.
Suitable for:
✔ Household Range Hoods
✔ Commercial Kitchen Exhaust Systems
✔ Gas Stove/Fire Ignition Modules
✔ Integrated Cooking & Heating Units
✔ OEM ODM Custom Built Appliances
OEM · ODM · Full Custom Engineering
Need higher output? Longer HV cable? Different winding configuration?
We provide structural redesign, customized winding, potted HV insulation, connector terminals, and batch production services.
Bring us your ignition transformer application — we build the transformer behind it.
