DC 6V High Voltage Pulse Generator
We supply DC 6V High Voltage Pulse Generator.
We devoted ourselves to high voltage generator Module many years.
We devoted ourselves to high voltage generator Module many years.
ꁆ
ꁇ
High voltage generator for security apparatus
We have been engaged into the research and development of various high voltage generators for security apparatus
since foundation, and after over 30 years' effort, now we have more than 1000 types of product which are extensively used
in electric batons, and security equipment, explosionproof device: electric shock fetter, electric gloves, shields, stun gun,
taser, etc
After many years' practice, our products have won lots of loyal customers because high voltage output, stable working
After many years' practice, our products have won lots of loyal customers because high voltage output, stable working
performance and low damage rate.

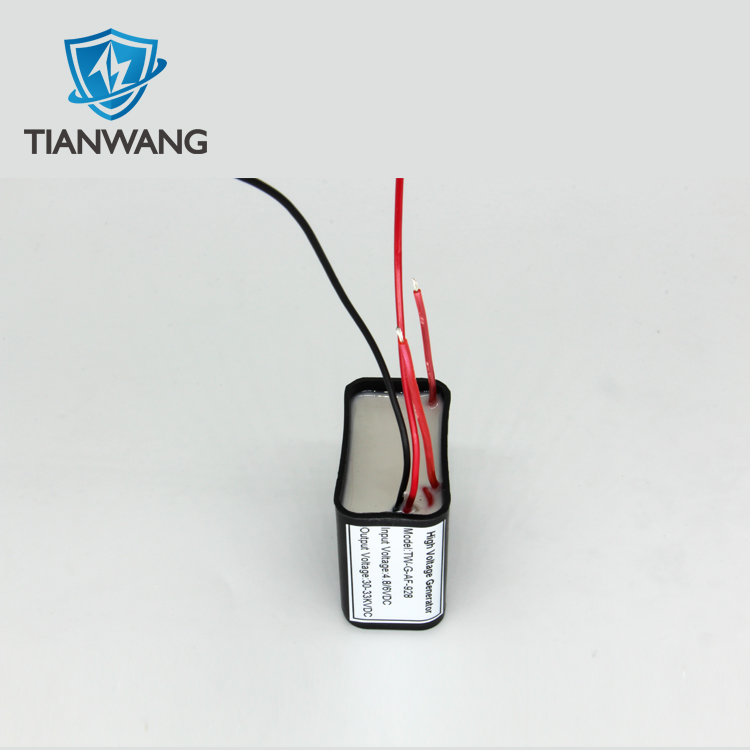

| Product name |
High Voltage DC Power Supply |
|
Model |
TW-G-AF-928 |
|
Input Voltage |
6VDC |
|
Output voltage |
33KVDC |
|
Working Current |
3A |
|
Igniting distance |
18mm |
|
Input Line Diameter&Length |
1.2±0.03 & 90mm |
|
Output Fire Line Diameter&Length |
1.6±0.03 & 35mm |
|
Output Earth Line Diameter&Length |
1.6±0.03 & 35mm |
|
Size |
L42.5mm×W38mm×H23mm |
|
Weight |
65±1 |
1. This module is a high voltage generator made of the circuit composed of components and high voltage transformer,
which can be used as a high voltage source for student science experiment, electronic instrument, negative ion
generator, etc.
2. The arc distance should be tested from short to long. It is strictly forbidden to exceed the maximum arcing
distance of the module. Because the high voltage energy cannot be released, the module is easily damaged.
3. The module has high power and inner heat dissipation is not good, so it can not work for long time.
Warning:
Experimental test of the arc distance from short to long, Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure, can easily damage the module. )
Should avoid the use of high voltage generator without load (without arc).
Continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged module.
