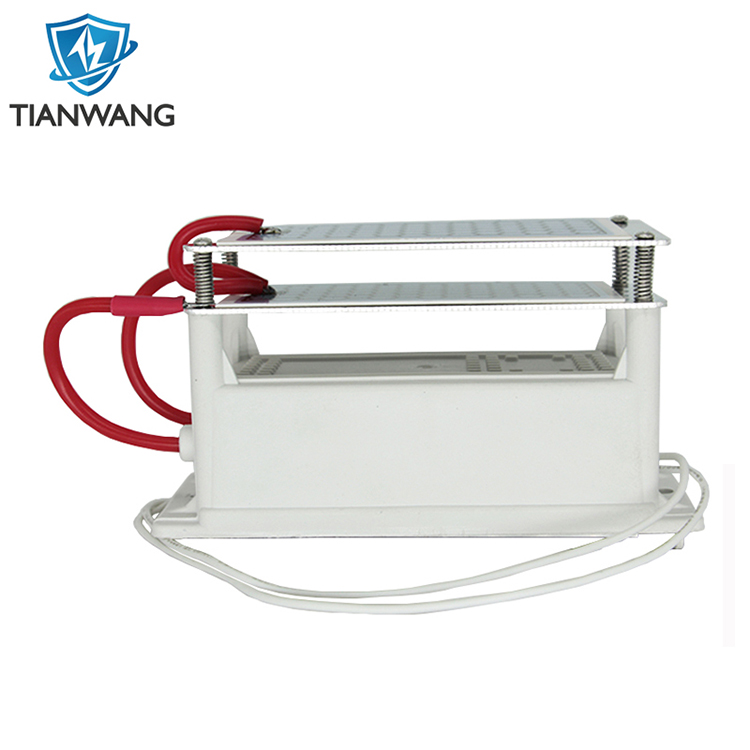

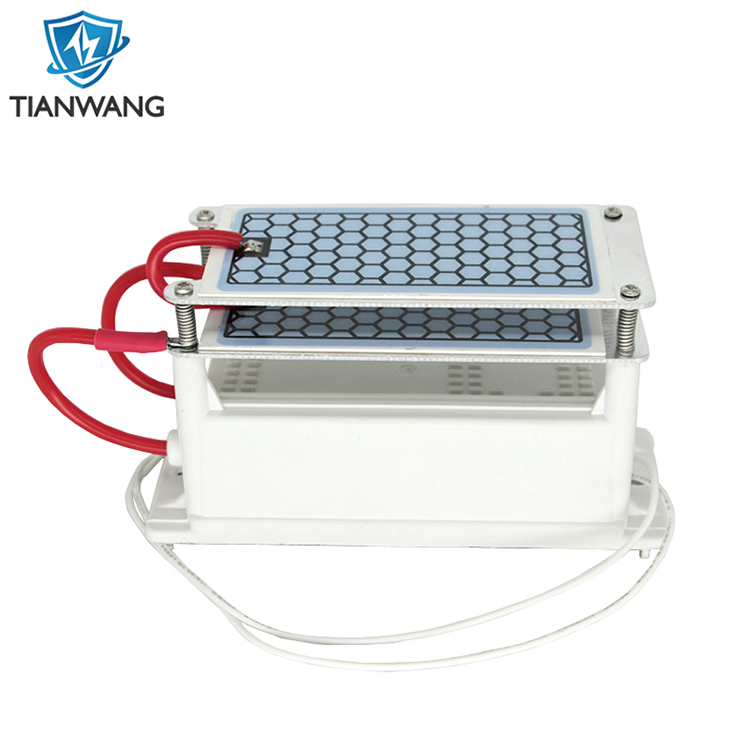

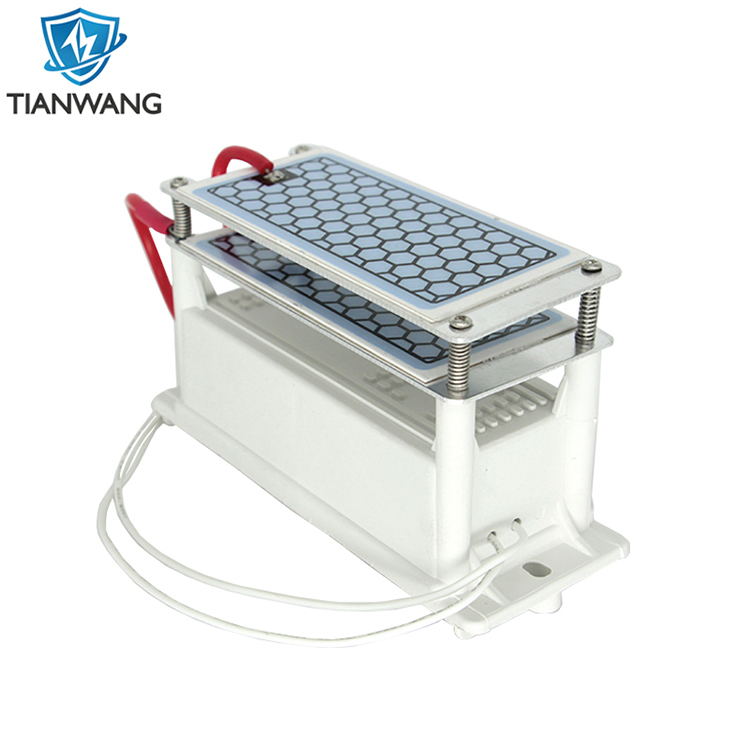

10g Portable Ozone Generator Air Purifier
We supply home ozone generator.We devoted ourselves to ozone generator many years,
covering most of Europe and Asian market.We are expecting to become your long term partner in China.
covering most of Europe and Asian market.We are expecting to become your long term partner in China.
This ozone generator can work with AC110/220V power supply, and the grams of ozone produced can be 5 grams, 10 grams, 15 grams or 20 grams. The product use area is 20-100 square meters, and the product can work between minus 15 degrees Celsius and 55 degrees Celsius.
| Product name |
10g Portable Ozone Generator Air Purifier |
|
Model |
TW-G-CY-220V 10G |
|
Input Voltage |
AC 220V/110V |
|
Ozone Output |
5-6g/h |
|
Ozone Plate temperature |
105℃±10% |
|
High Voltage Generator temperature |
60℃±10% |
|
Working environment |
humidity60% |
|
Continuous working time |
≤30minutes |
|
Power |
70W |
|
Size |
L145mm*W56mm*H80mm |
|
Box weight |
530g |
|
Suitable area |
50~100m² |
|
Carton Size |
54*35.5*34cm(50pieces) |
|
Weight |
430g±5g |
|
Big Carton Weight |
28KG |
Advantage:
1. High-voltage and high-frequency corona discharge, small size transformer, low consumption rate of electricity.
2. Epoxy potting, Damp proof, Waterproof, Corrosion proof transformer.
3. Easy to maintain and install.
4. Long-life ceramic plates are made through green production on 96% aluminum oxide ceramics.
Application :
Home air purifier is widely used in
1.Pet house to sterilize the bacteria and eliminate odor.
2.Fruit shop to keep fruits fresh and longer the shelf life.
3.Refrigerator to get rid of bad odor.
4.Electronic shoe cabinet to destroy airborne microbes etc.
Attention:
1. When using this ozone generator, better to use an electrical fan. and strictly forbid people working in the room with ozone in high concentration. The output high voltage is dangerous. you are strictly forbidden to touch it in any way when it is working.
2. Please stop the device working after 25 minutes’ using if without fan,or the device will be too heat to burn down.
3. Should unplug the power cord first before cleaning.Please clean the ceramic plate with ethyl alcohol every month,and use it when it’s fully dry.
4. Don’t rain or splash it to avoid a fire or electric shock.
5. Don’t use or store it in high humidity/high temperature.
After QC, our warehouse team will do packing.
First is keeping products safe at warehouse and during shipping. We do a lot work to make sure this.
Also we will make notes for important datas, for example quantity, size, weight and so on.
Q: How many ozone generators are in a box?
A: 50 pieces per box.
Q: Can it be customized?
A: We are a manufacturer, we can customize products according to the parameters required by customers.
Q: What is the working principle of the ozone generator?
A: The ozone high-voltage package is a process of converting oxygen into ozone by using the principle of high-voltage discharge. That is, after the ozone high voltage package is powered by the power supply, it outputs a high voltage of about 15kV, and then the high voltage is applied to the high voltage electrode with an insulator and a certain gap in the middle, and the passing dry air or oxygen is passed through to form a corona discharge. Ionization collision polymerization into O3 molecules.
