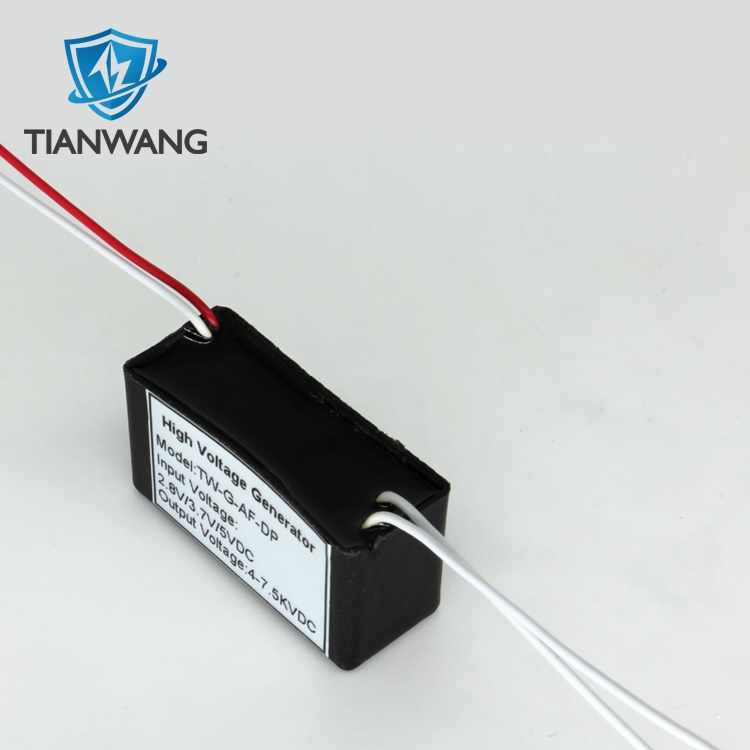

Boost Step-up Power Module for Science Experiment
This DC 3V Boost Step-up Power Module is widely used in scientific experiments, physical scales, VR haptic glove, beauty equipment, mouse traps, air purifiers,
electrostatic adsorption devices, animal husbandry, electric mosquito swatters, beauty spot moles and many other fields.
electrostatic adsorption devices, animal husbandry, electric mosquito swatters, beauty spot moles and many other fields.
This multi-functional high voltage generator is widely used in scientific experiments, physical scales, VR haptic glove, beauty equipment, mouse traps, air purifiers, electrostatic adsorption devices, animal husbandry, electric mosquito swatters, beauty spot moles and many other fields. The module is high voltage pulse output, small volume, high efficiency, discharge intensity is violent.
The working principle of the high-voltage generator is that it is powered by DC power sources of different volts, and the transformer is driven by the oscillating circuit to boost voltage once, and voltage is boosted twice by the voltage doubler rectifier module, and finally a DC high voltage discharge is formed.

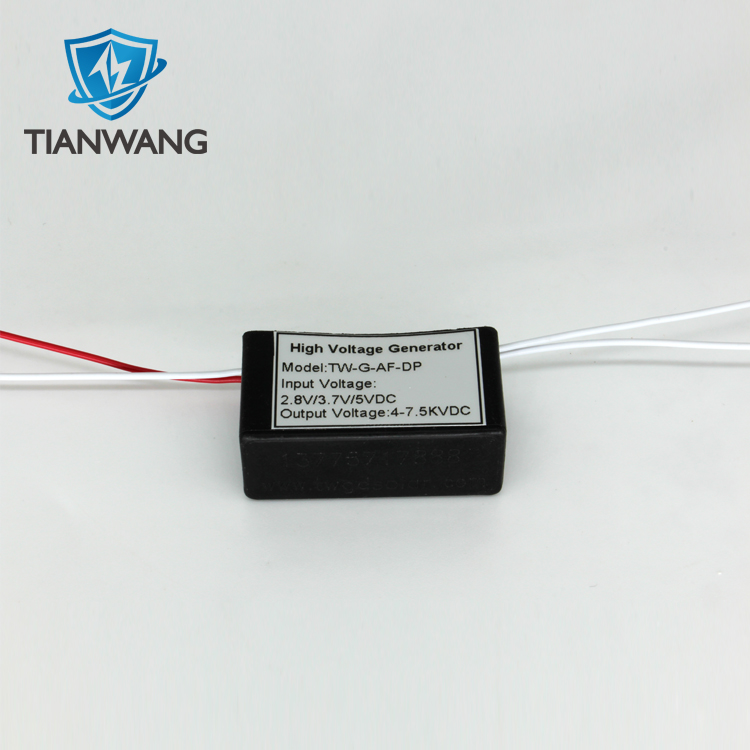

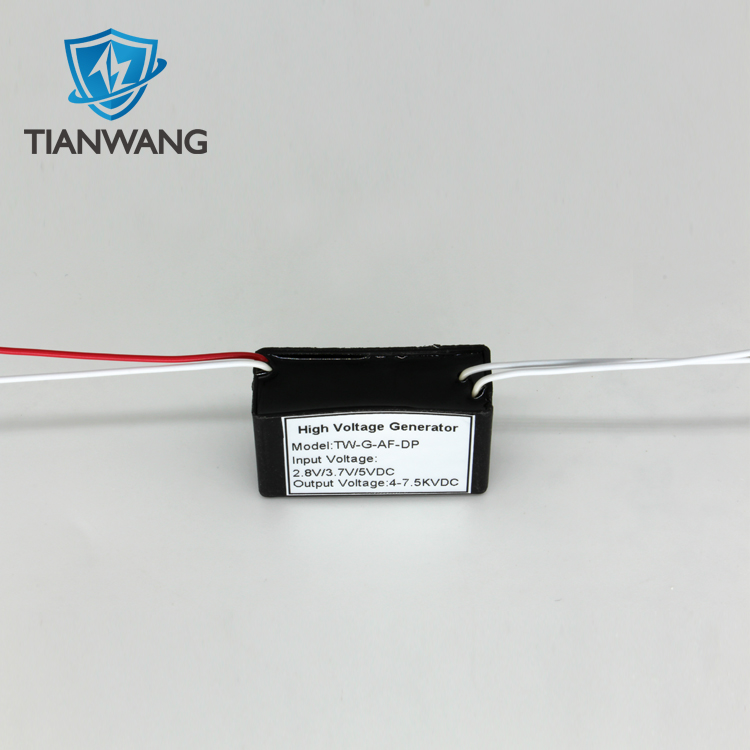

| Product name |
High voltage dc power supply |
|
Model |
TW-G-AF-DP |
|
Input Voltage |
3.7VDC |
|
Output voltage |
7KVDC |
|
Igniting distance |
5mm |
|
Working Current |
800mA |
|
Size |
L41mm×W24mm×H15.5mm |
| Input Line Length |
70mm |
|
Output Cable Length |
95mm |
|
Weight |
30±1g |

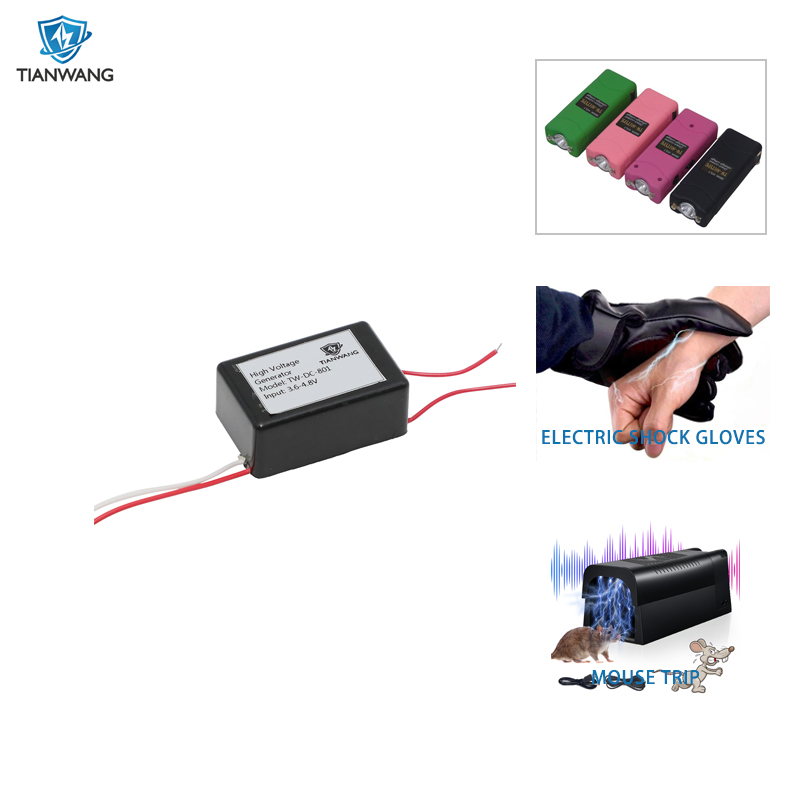

Application: VR haptic glove, Electronic Fireworks, Electrostatic Adsorption, Scientific Experiment, Mousetrap
This is electronic mosquito swatter accessories, internal epoxy resin encapsulated integrated high voltage generator.
It'll release a certain amount of negative oxygen ions, can produce a high voltage when sterilization, but also purify the air.
It'll release a certain amount of negative oxygen ions, can produce a high voltage when sterilization, but also purify the air.
Feature:
01. With rich production experience and technical capabilities, each product has been carefully produced and tested, and is committed to providing customers with good products and services.
02. The high voltage transformer adopts imported electronic components with high pressure resistance and long life, double-layer insulated wire, high temperature resistance, anti-leakage, and good safety performance.
03. The high voltage transformer shell is made of anti-aging, good insulation PP material, and epoxy resin vacuum packaging that meets the ROHS standard.
Generated by high voltage boost circuit about 10kV (current is less than 10 microamps, harmless to humans and animals), arc distance of about 5mm, electrostatic field with a strong adhesive force between the two grids between the double grid, when mosquitoes time flies and other pests close to the grid, the resulting electrical short circuit current forthwith death.
Why choose us?
1. After you make order, we will follow up the whole process and update it to you. Collecting goods, loading containers and tracking goods transport information for you.
2. Any of our products you are interested, or any customized orders you wish to place, any items you want to buy, Please let us know your requirements. Our team will do our best to help you .
Q:Can the high voltage module be customized as our need, such as put on our logo?
A:Surely our high voltage generator can be customized as your need, put on your logo is also available.
Q: Can the high voltage generator be ignited multiple times?
A: Our high voltage generator works intermittently, and it can fire continuously for 2-3 minutes each time.
Q: How to wire the boost step up power module ?
A: Connect the red wire to the positive pole and the white wire to the negative pole.
Q: How many volts is the high voltage generator input?
A: The conventional input of our high voltage generator is 3.7VDC, 4.8VDC, 7.2VDC/AC, 12VDC/AC, if you need other parameters, you can contact customer service for sample customization.
Q: How long is the high voltage dc generator warranty?
A: One year warranty for non-artificial damage.
