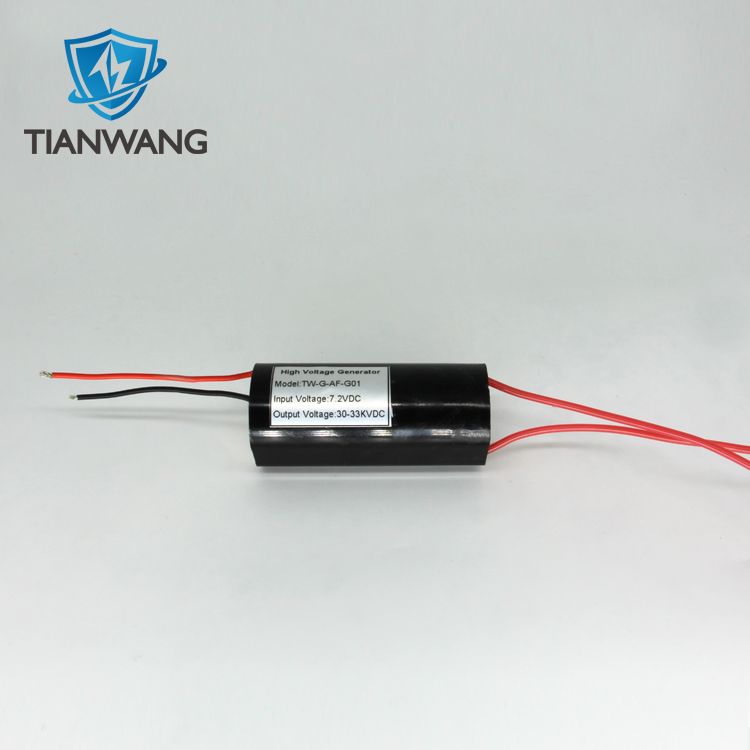

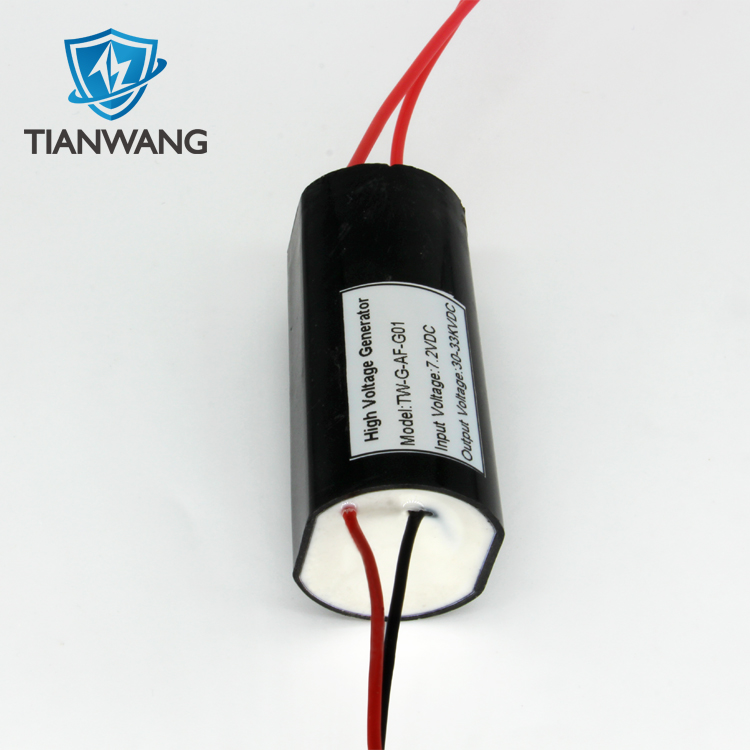

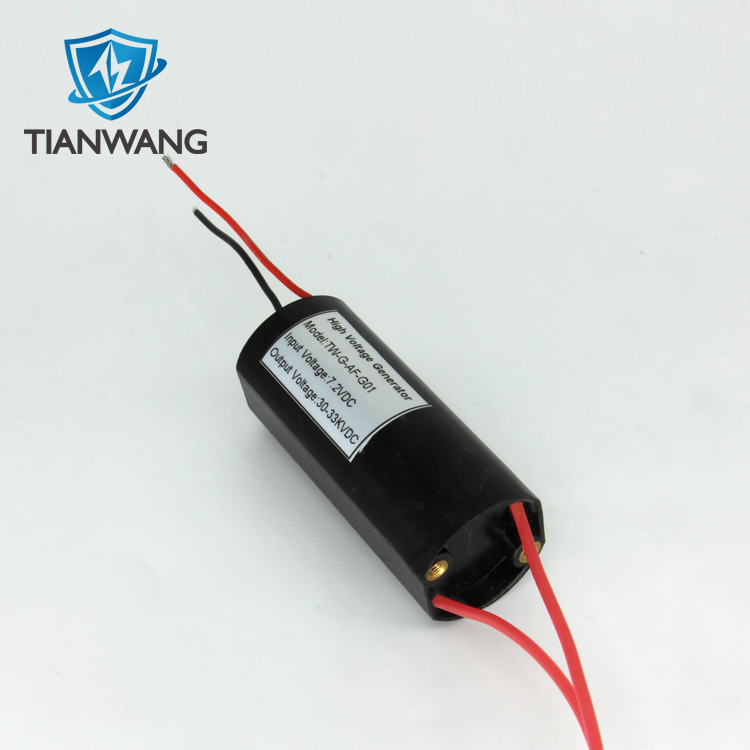

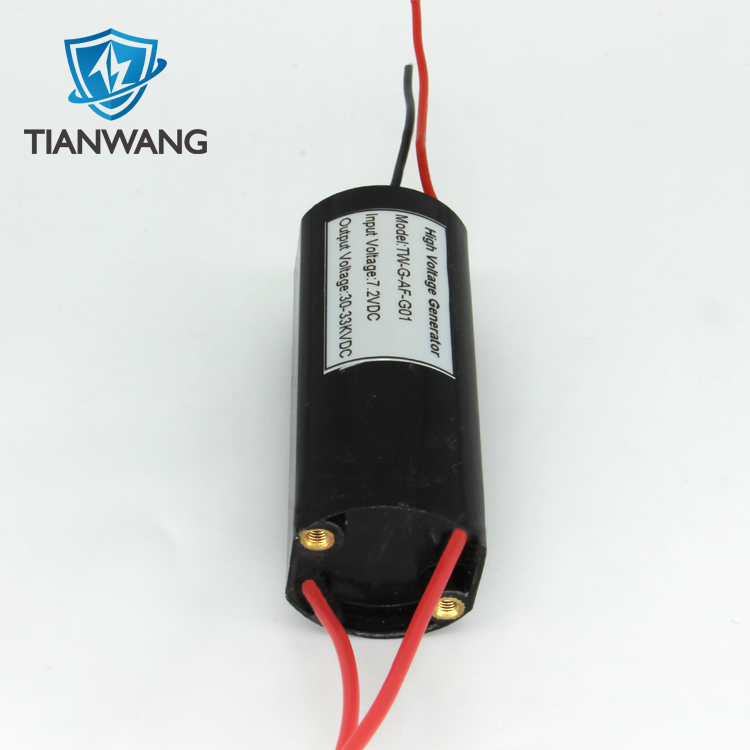

DC 7.2V High Voltage Generator Boost Inverter Power Module
We supply DC 7.2V High Voltage Generator Power. We devoted ourselves to high voltage generator
many years,covering most of American and Europe market. We are expecting to become your long term partner in China.
many years,covering most of American and Europe market. We are expecting to become your long term partner in China.
This security high voltage generator is widely used in various fields such as electronic protective equipment, security equipment, security flashlights, taser guns, high voltage power grids, farm power grid electric fences, electronic shields, protective gloves, spark plug testing and so on.
The working principle of boost inverter is that it is powered by DC power sources of different volts, and transformer is driven by the oscillating circuit to boost voltage once, and voltage is boosted twice by the voltage doubler rectifier module, and finally a DC high voltage discharge is formed.
| Product name |
step up boost transformer |
|
Model |
TW-G-AF-G01 |
|
Input Voltage |
7.2VDC |
|
Output voltage |
33KVDC |
|
Igniting distance |
20mm |
|
Working Current |
3A |
|
Size |
L65mm×W29.5mm×H27mm |
| Input Line Diameter | 2±0.03 & 90MM |
| Output Line Diameter | 2±0.03 & 90MM |
| Input Line Length | 180MM |
| Output Line Length | 225MM |
|
Weight |
75±1g |
Features:
*01. With rich production experience and technical capabilities, each product has been carefully produced and tested, and is committed to providing customers with good products and services.
*02. The high voltage step up transformer adopts imported electronic components with high pressure resistance and long life, double layer insulated wire, high temperature resistance, anti leakage, and good safety performance.
*03. The high voltage boost power module shell is made of anti-aging, good insulation PP material, and epoxy resin vacuum packaging that meets the ROHS standard.
*04. This module is a finished module for high voltage inverter transformer/booster with scientific input. After inputting
DC 7.2V input to the input terminal, DC high voltage of about 33KV can be obtained at the output end (about 1-2 cm arc). , pay attention to the ignition function.
Tianwang High voltage Generator Product scope:
Farming and Forestry Machine
Mist and Fog Machine
Gas Burner, Automatic Electronic Gas Burner
Natural Gas, Fuel burner, Oil boiler
Electrostatic Sprayer
Wedding Industry
Insect Killer, Mosquito swatter
Security Equipment
Household Air Purifier
Negative Ion Generator
We can design and manufacture transformers regarding to customer request. Tell us the specification of transformer you
want, we will do sample for you to test.
1.Your inquiry related to our products or prices will be replied in 24hours.
2.Well-trained and experienced staffs to answer all your enquiry in fluent English
3. OEM&ODM, any your customized high voltage generator we can help you to design and put into product.
4. Protection of your sales area, ideas of design and all your private information
5.The ability of monthly develop new product can help you enlarge your market.
2.Well-trained and experienced staffs to answer all your enquiry in fluent English
3. OEM&ODM, any your customized high voltage generator we can help you to design and put into product.
4. Protection of your sales area, ideas of design and all your private information
5.The ability of monthly develop new product can help you enlarge your market.
Q. Can the ignition coil be ignited multiple times?
A:Our high pressure package works intermittently, and it can fire continuously for 2-3 minutes each time.
Q. How to wire the high voltage generator?
A:Connect the red wire to the positive pole and the white wire to the negative pole.
Q. How many volts is the high voltage package input?
A:The conventional input of our high voltage package is 3.7VDC, 4.8VDC, 7.2VDC/AC, 12VDC/AC, if you need other parameters, you can contact customer service for sample customization.
Q. How long is the high pressure package warranty?
A:One year warranty for non artificial damage.
