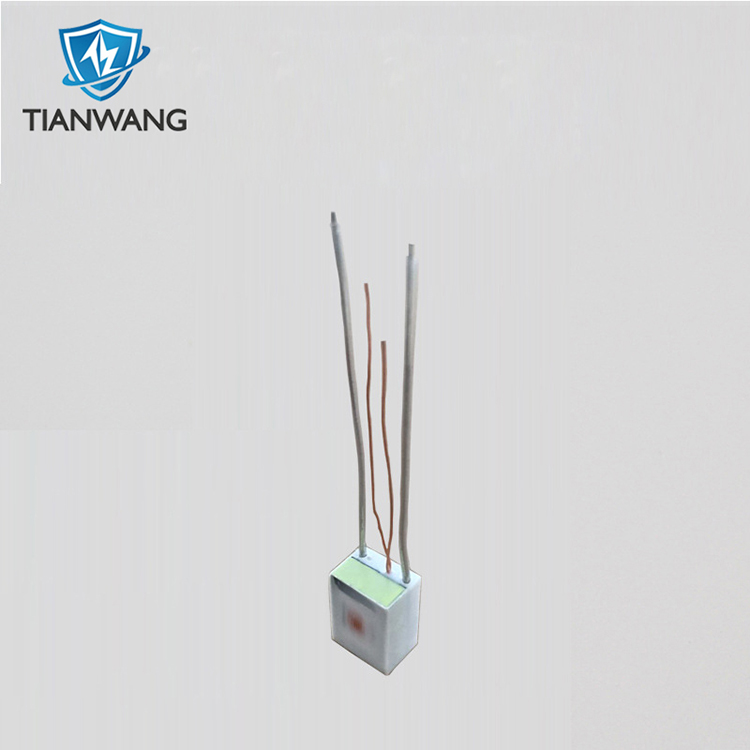

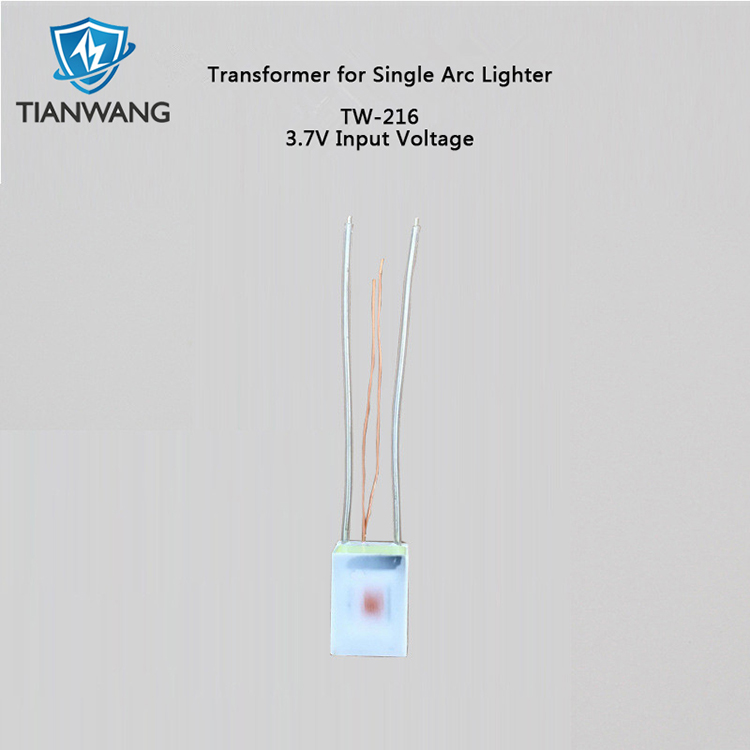

7.5KV High Voltage Generator Arc Ignition Coil
many years,covering most of Europe and US market.We are expecting to become your long term partner in China.
The arc ignition high voltage inverter module is widely used in arc lighters.The item suitable for school scientific research projects and moxibustion instruments, with large quantity and favorable price. In addition, we provide detailed material.
| Product name |
7.5KV High Voltage Generator Arc Ignition Coil |
|
Model |
TW-G-DH-216 |
|
Input Voltage |
3.7VDC |
|
Output voltage |
7.5-8.5KVDC |
|
Material |
Skeleton, Copper wire, ferrite core, epoxy, insulating sleeve |
|
Igniting distance |
6-6.5mm |
|
Battery Capacity |
＞200mAh |
|
Current |
1.8-2A |
|
Size |
L11mm×W7.9mm×H15mm |
|
Charging voltage |
5V±10% |
|
Weight |
12g |
Feature:
1. We have multi-size high voltage transformer skeleton to meet the requirements of most products on the market.
2. We adopt imported electronic components with high voltage resistance and long service life, double-layer transparent Teflon insulated wire, high temperature resistance, leakage resistance, and safety is guaranteed.
3. The shell is made of anti-aging, insulation PP material, and epoxy resin vacuum encapsulation that meets ROHS standard. Every high voltage transformer undergo strict quality inspection to meet the requirements of stable performance.
Application：

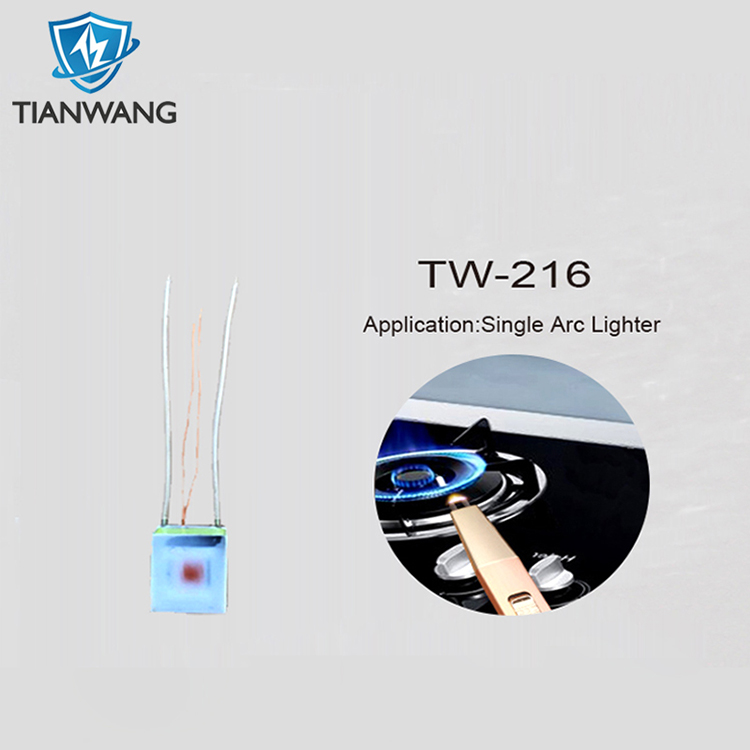

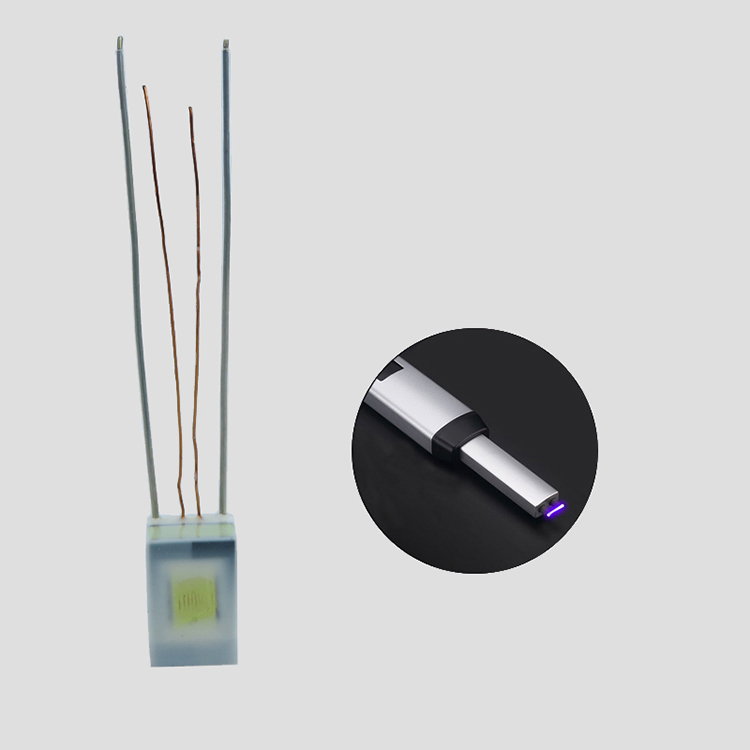

The arc ignition high voltage inverter module is widely used in arc lighters.The item suitable for school scientific research projects and moxibustion instruments, with large quantity and favorable price. In addition, we provide detailed material. The generated arc can easily ignite flammable materials such as paper and candles
