12v high voltage electrostatic sprayer generator

we provide 12v high voltage electrostatic generator. We 've worked on electrostatic generators for years,
Covers most European and American markets. We look forward to being your long-term partner in China.

HighVoltageElectrostaticNegativeIonGenerator

ꁆ ꁇ

Send Inquiry

PRODUCT INTRODUCTION

Low-Voltage High-Output Electrostatic Sprayer

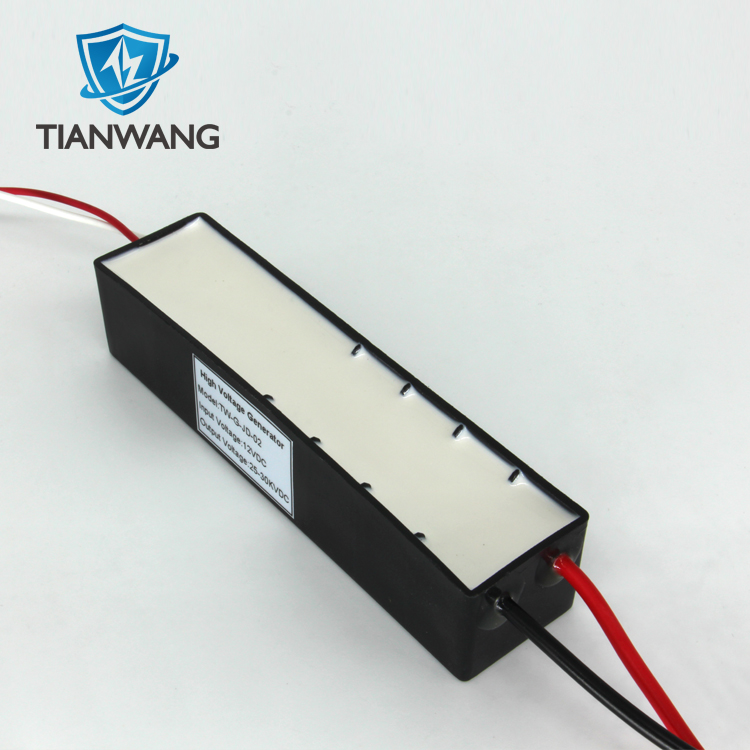

This is a special electrostatic high voltage generator developed for electrostatic sprayers, which can be used for handheld, backpack, handle and other electrostatic sprayers. It can also be used for large electrostatic spraying equipment such as unmanned aerial vehicles. We can also customize the high voltage electrostatic generator according to your unique needs.

Tianwang high-voltage electrostatic generator has been developed for many years, and has cooperated with many electrostatic sprayer manufacturers and matured, and has been well received by customers in terms of quality and electrostatic effect

Product name	electrostatic generator negative ion generator
model	TW-G-JD-01
input voltage	12VDC
output voltage	28KVDC
power	1.8W
operating current	150 ± 10MA
product size	L120 mm × w29 mm × H25mm mm
Length of the input line	290mm
Output Line Length	500mm
weight	157 ± 1g
Input Wire Diameter	& phi;0.8±0.25mm copper core: & phi; 0.15mm x 16 pieces
Output wire diameter (positive)	& phi;1.0±0.25mm copper core: & phi; 0.15mm x 7 pieces
Output wire diameter (negative)	& phi;1.0±0.25mm copper core: & phi; 0.15mm x 20pcs

Atomization and Spraying Technology

high voltage electrostatic generator is the main accessory of electrostatic sprayer to generate electrostatic effect.

The function is as follows:

1. Good electrostatic effect: The electrostatic high-voltage generator can generate high-voltage static electricity, so that the ejected liquid is fine mist, carries high-voltage static electricity, and has a strong electrostatic adsorption effect.

2. Stable operation: It can work continuously for 10 hours with stable voltage.

3. Long life: Imported components are adopted, which greatly improves the life of the product.

4. Support customization: Support customers to customize sizes and parameters to meet customers' requirements for products.

5. After-sales peace of mind: The 12v electrostatic high-voltage generator is guaranteed for one year for non-human damage, so there is no need to worry about product quality.

Adjustable Spray Pattern Generator

Uniform Coating Application

Agricultural Pest Control Equipment

Industrial Coating and Painting

advantages:

we are a manufacturing plant in the whole industry chain-quality controllable

strong team arranges production according to orders and delivers on time.

. We accept tracking orders.

keep up with the latest market trends and bring you high quality and low price products.

our services:

we provide free technical services on electrostatic high voltage modules.

free on-site visit and introduction of our factory.

we provide process design and verification free of charge.

we can guarantee the timely delivery of samples and goods.

, all orders will be closely followed up by special personnel and customers will be notified in time.

Q: Can you customize it for your customers?

Answer: Yes, we can customize according to your needs, we have a R & D department, our designers can design for you, and our technicians can make prototypes.

: Can the electrostatic high voltage generator work continuously? How long?

Answer: The high-voltage electrostatic generator can work continuously for about 5-6 hours.

Q: Will there be numb hand feeling when electrostatic high voltage is installed in electrostatic sprayer equipment?

: Heavenly King has developed an electrostatic high-voltage power supply that will not numb hands. Of course, you also need correct wiring and improved equipment to better solve this problem.

: Is the adsorption effect of electrostatic generator obvious? Is it really useful?

Answer: After several years of product improvement, the adsorption effect, product characteristics, and the shortcomings of numbing hands have been basically improved. Using the sprayer of the Tianwang electrostatic high-voltage module, the surface and back of the object will be sprayed with liquid, and the front and back will be dyed with liquid. The ratio is about 30% to 40%.
