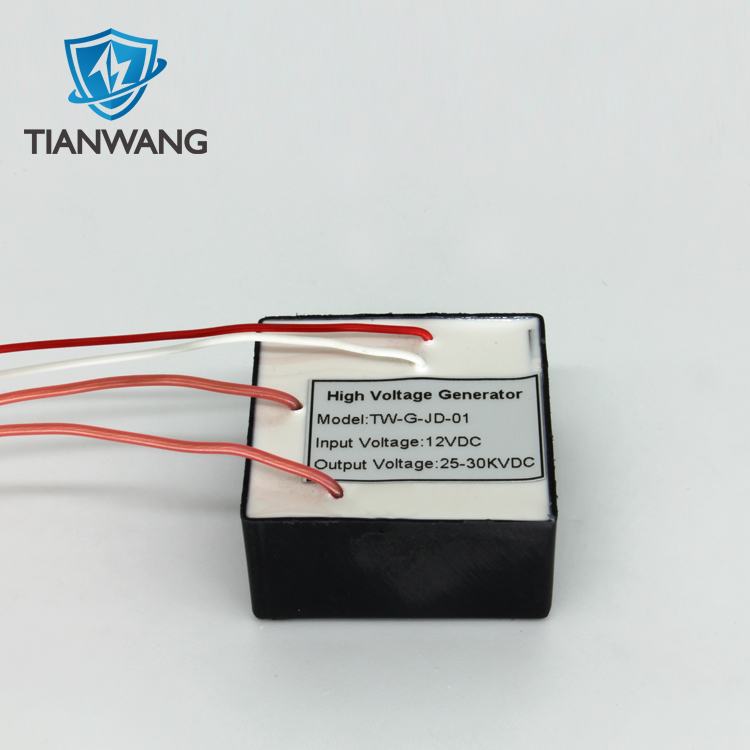

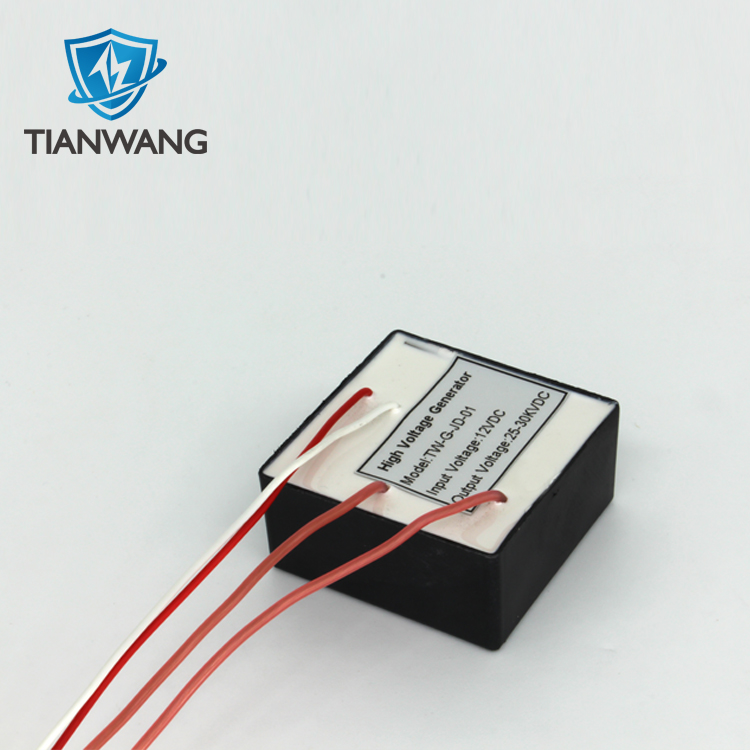

small electrostatic high voltage package
Covers most markets in Europe and the United States. We look forward to being your long-term partner in China.
| Product name |
small electrostatic generator |
|
model |
TW-G-JD-01 |
|
input voltage |
12VDC |
|
output voltage |
18KVDC |
|
power |
12 watts |
|
operating current |
140 ± 10MA |
|
product size |
L42 mm × w42 mm × H21mm mm |
|
Length of the input line |
250mm |
|
Output Line Length |
350-400mm |
|
weight |
40±1 grams |
|
Input Wire Diameter |
& phi;1.4±0.25mm |
|
Output wire diameter (positive) |
& phi;2.45±0.25mm |
|
Output wire diameter (negative) |
& phi;2.45±0.25mm |
function:
01. After years of market research, Tianwang high voltage electrostatic generator has been continuously adjusted according to customer requirements. At present, the electrostatic adsorption effect has been adjusted to a very significant level.
02. The electrostatic high-voltage package adopts epoxy resin vacuum package, which has good waterproof and anti-aging properties. Double-layer insulated wire, no leakage, anti-aging, safer. We use imported electronic components, high voltage resistance, long service life, low damage rate, stable performance, factory direct sales, strict inspection, and controllable quality.
03. The high-voltage electrostatic generator has developed several sizes and specifications, suitable for various electrostatic sprayers, and supports customization.
application:
electrostatic adsorption and air conditioning, knapsack sprayer, hand-held sprayer and other electrostatic devices;
plastics, printing and packaging industrial equipment, meltblown cloth electret, etc.
