High Voltage Electrostatic Sprayer Accessories

we provide high voltage electrostatic generators. We have been committed to high-voltage DC generators for many years,
Covers most European and American markets. We look forward to being your long-term partner in China.

ꁆ ꁇ

Send Inquiry

PRODUCT INTRODUCTION

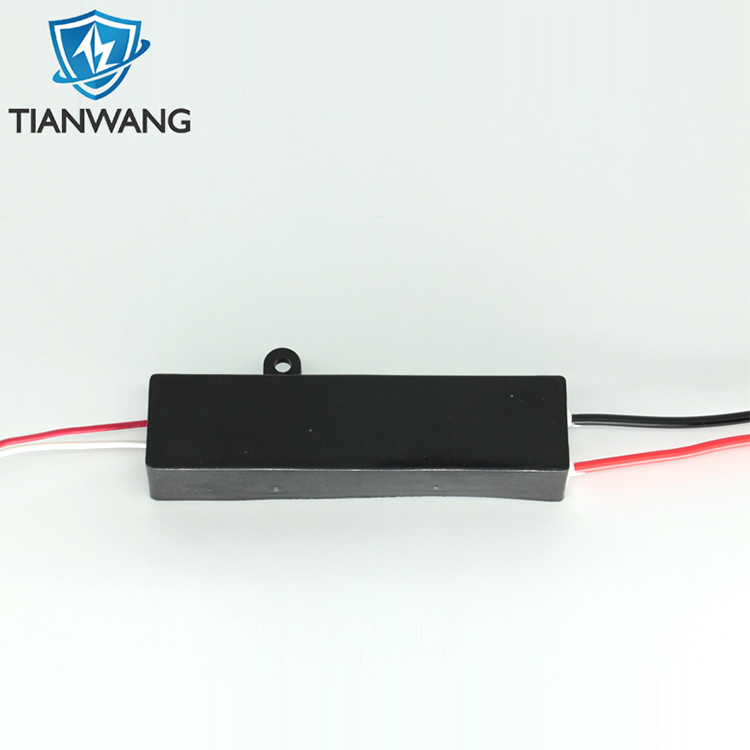

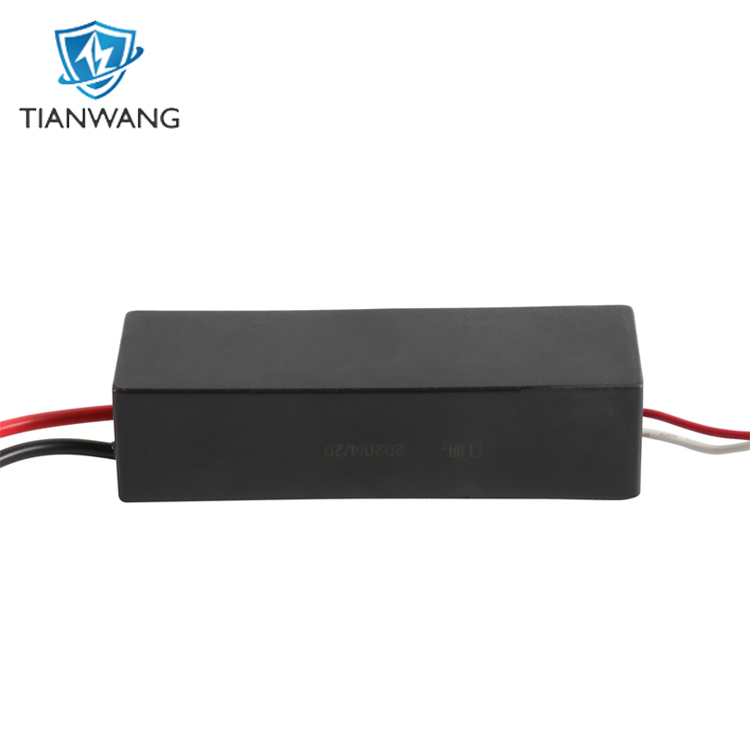

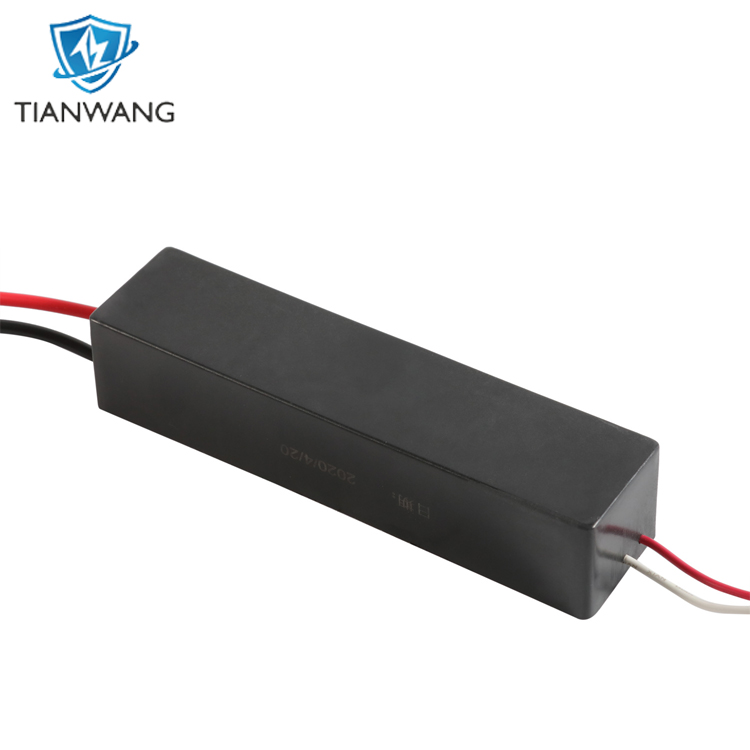

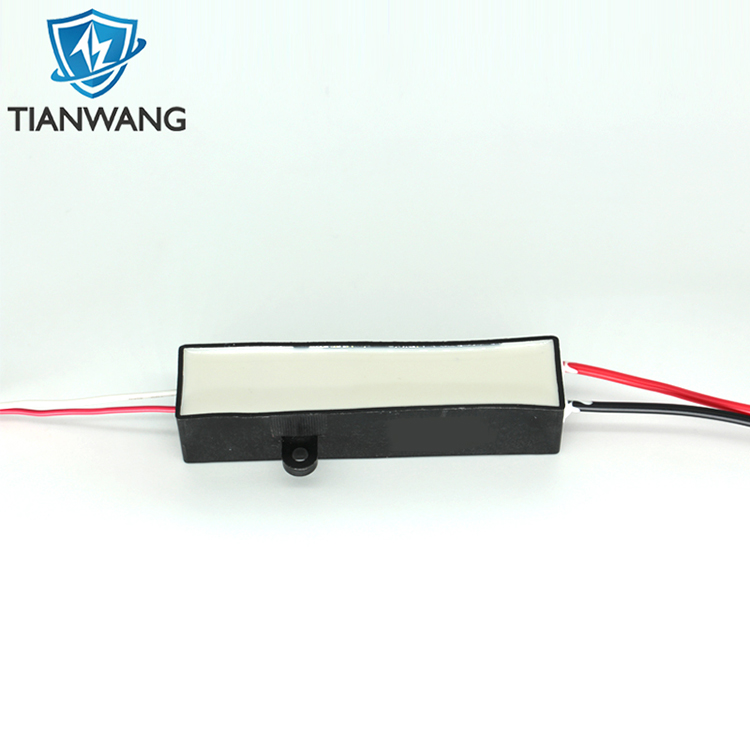

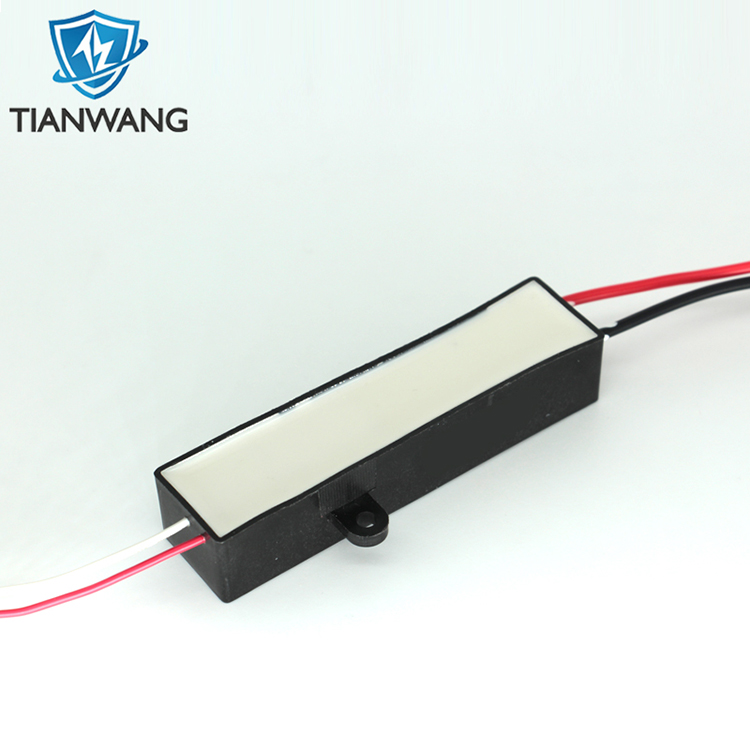

This is a special electrostatic high voltage generator developed for electrostatic sprayers, which can be used for handheld, backpack, handle and other electrostatic sprayers. After a continuous test process, we developed a high voltage generator with obvious electrostatic effect. TW-JD-03 electrostatic sprayer fittings. Since the successful product development, many sprayer manufacturers have applied in their products and the response is very good.

can also be used for large electrostatic spraying equipment such as unmanned aerial vehicles. We can also customize the high voltage electrostatic generator according to your unique needs.

Project name	electrostatic sprayer accessories
input voltage	3.7V/12V/24V/220V
output voltage	17-25kvdc (customizable)
power	12 watts
operating current	100 ± 10MA
product size	L109 mm × w29 mm × h26 mm
Length of the input line	290mm
Output Line Length	500mm
weight	185 ± 1g
Input Wire Diameter	& phi;0.8±0.25mm copper core: & phi; 0.15mm x 16 pieces
Output wire diameter (positive)	& phi;1.0±0.25mm copper core: & phi; 0.15mm x 7 pieces
Output wire diameter (negative)	& phi;1.0±0.25mm copper core: & phi; 0.15mm x 20pcs

Usage: The red wire is connected to the positive electrode of the battery. The white wire connects the cathode. Regardless of the positive and negative output lines. The adjustable resistance faces the high tension wire, and the other faces the ground wire.

applications: electrostatic adsorption and air conditioning and other electrostatic devices, backpack sprayer, hand-held sprayer

Note: The small red and black line is the input, the red line is the positive input of the 220 volt power supply, the black line is the negative input, the thick red line is the high voltage positive output, and the thick black line is the high voltage negative output.

1. We have a complete product production chain, including all accessories inside the product.

2. We have a professional research and development department, constantly use new technologies to develop new products and provide timely solutions to meet customer needs.

3. Our experienced sales team will maintain efficient, close and long-term service, whether in sales or after sales.
