DC 4.8V High Voltage Generator Boost Inverter Module

We supply Small Pulse DC 4.8V High Voltage Generator Boost Inverter Module. We devoted ourselves to high voltage dc generator many years,
covering most of American and Europe market.We are expecting to become your long term partner in China.

ꁆ ꁇ

Send Inquiry

PRODUCT INTRODUCTION

High Voltage Output Module

High voltage pulse Generator

This module is a high-voltage inverter for the science production, the finished module of the transformer/booster
After inputting DC4.8V voltage at the input terminal, DC high voltage of tens of thousands of volts can be obtained at the output end.
It can output high voltage pulse current, small size and high efficiency.

It can be used for negative-ion generator, electronic instrument, and science experiment.

The peripheral circuit is simple, simply connect to switch and battery, and the discharge intensity is great.

Efficient Boost Inverter

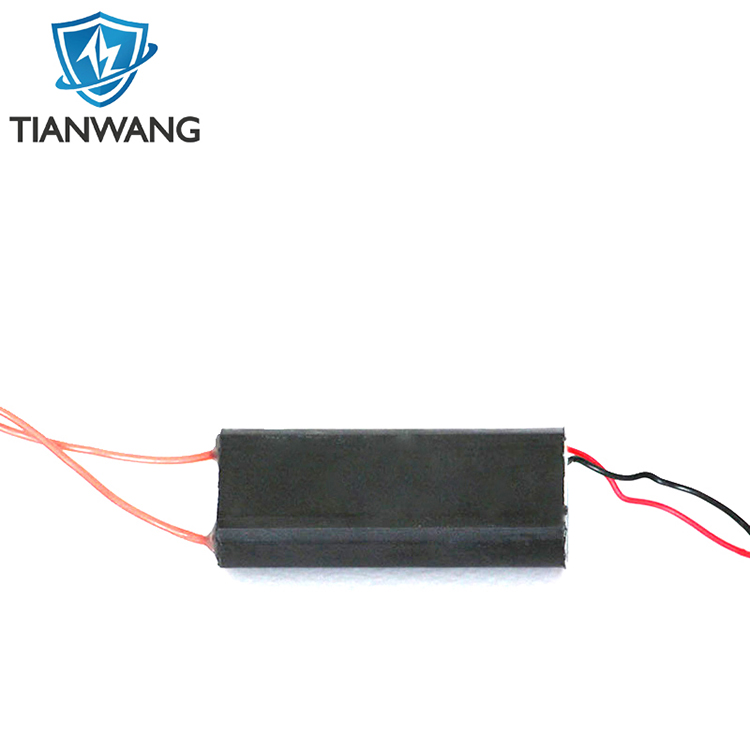

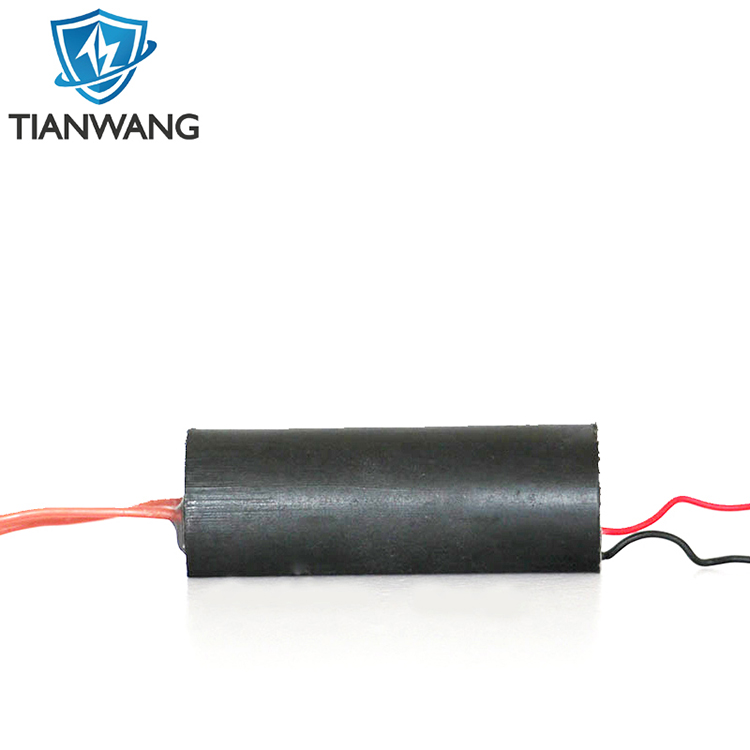

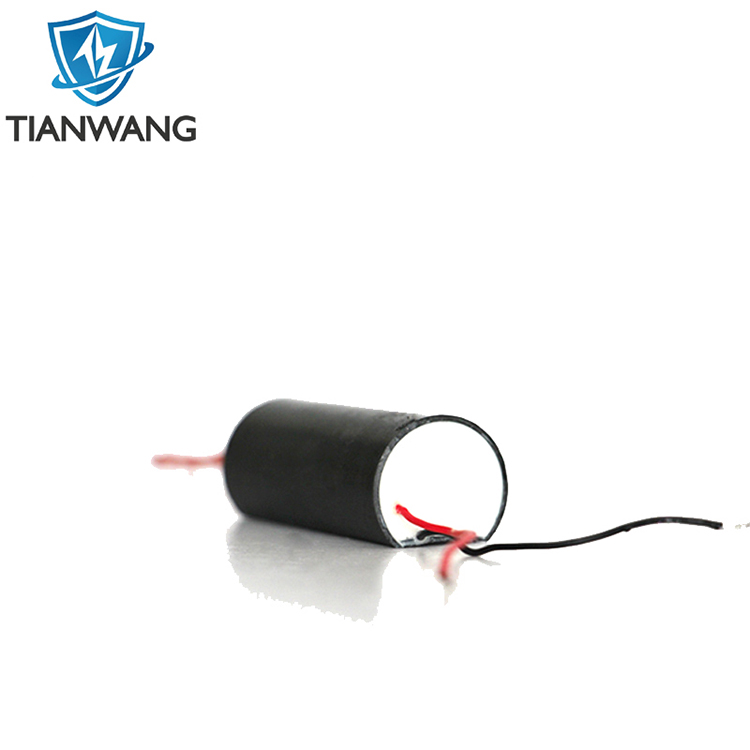

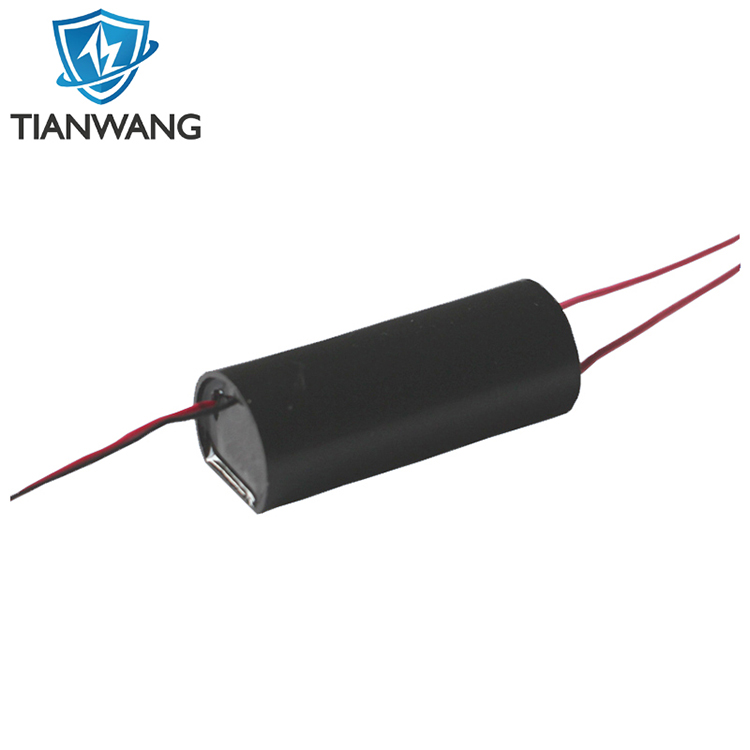

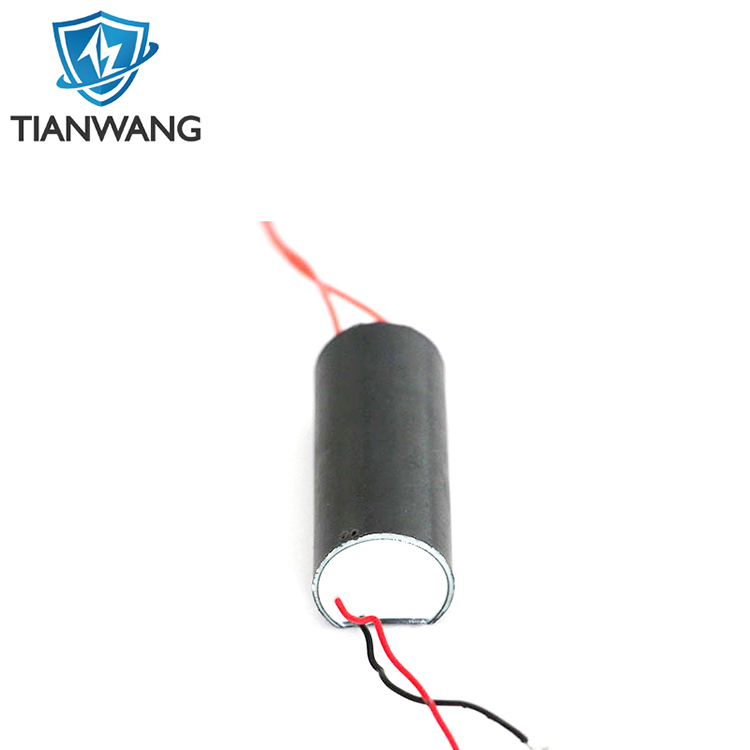

Product name	pulse ignition coil
Model	TW-G-AF-1101
Input Voltage	4.8VDC
Output voltage	30KVDC
Working Current	3A
Igniting distance	14mm
Input Line Diameter	1.2±0.03mm
Input Copper wire	0.15 mm x 11Φ root
Output Line Diameter	1.6±0.03 MM
Output Copper wire	0.15 mm x 7 Φ root
Input Line Length	72MM
Output Line Length	120MM
Size	L25xW21.5xH71 MM
Weight	60±1g

Compact High Voltage Generator

1.This module is a high voltage generator made of the circuit composed of components and high voltage transformer,

which can be used as a high voltage source for student science experiment, electronic instrument, negative ion generator, etc.

2. Based on the coil principle, the module outputs high-voltage pulse, featuring small volume, high efficiency and fierce

discharge intensity.

3. The module is divided into input end and output end. The red and black wires are the input end, and red one is positive pole, black one is negative pole. The output end is two high voltage wires in the same color. High voltage arcs can be generated by connecting the input end to the battery.

4. Avoid power-on when no load under high voltage. The distance of high voltage discharge end should be adjusted

properly before power-on, and the arc distance of the output end is proportional to the voltage and capacity and the used battery.

5. The arc distance should be tested from short to long. It is strictly forbidden to exceed the maximum arcing distance of the module. Because the high voltage energy cannot be released, the module is easily damaged.

6. The module has high power and inner heat dissipation is not good, so it can not work for long time.

Features:

This module generate very high voltage,can be seen inside a police taser guns (stun gun). DC 3V - 7.2V can generate 20-100KV DC high voltage (about 1-2 cm arc) at the output can be used as high school science experiments , electronic equipment, negative ion generator, high voltage source to use when making small science.

Scientific Experiment Power Supply

Electronic Instrument Power Module

Warning:

Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. )

Should avoid the use of high voltage generator without load (without arc).

Continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged module.

Tianwang is specialized in the R&D and production of high voltage generator high voltage dc pulse generator for 30 years. We have fully automatic production machines and strict quality inspections. The product production cycle is short and the quality is guaranteed. The products sold have stable performance, long life, and are not easy to damage.

Security Equipment Power Source
