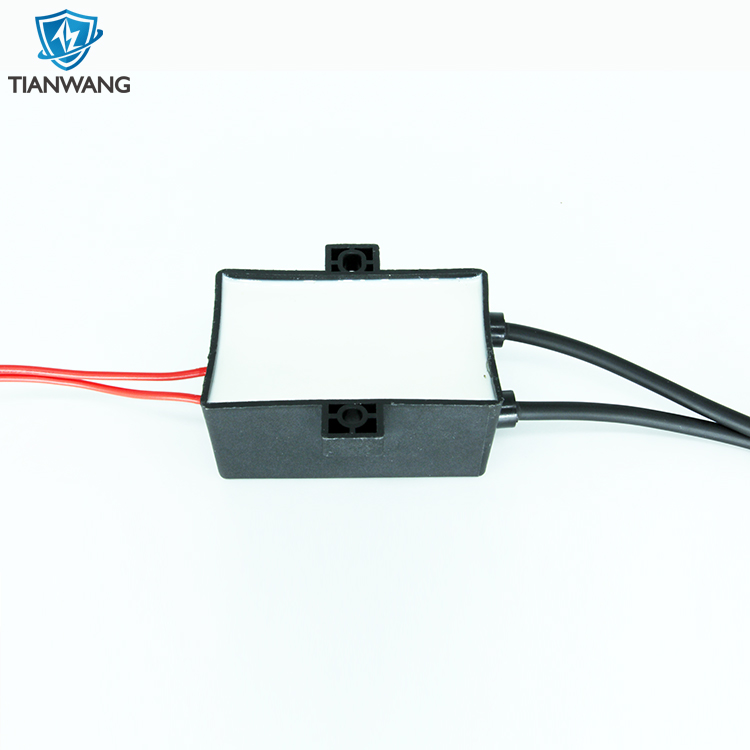

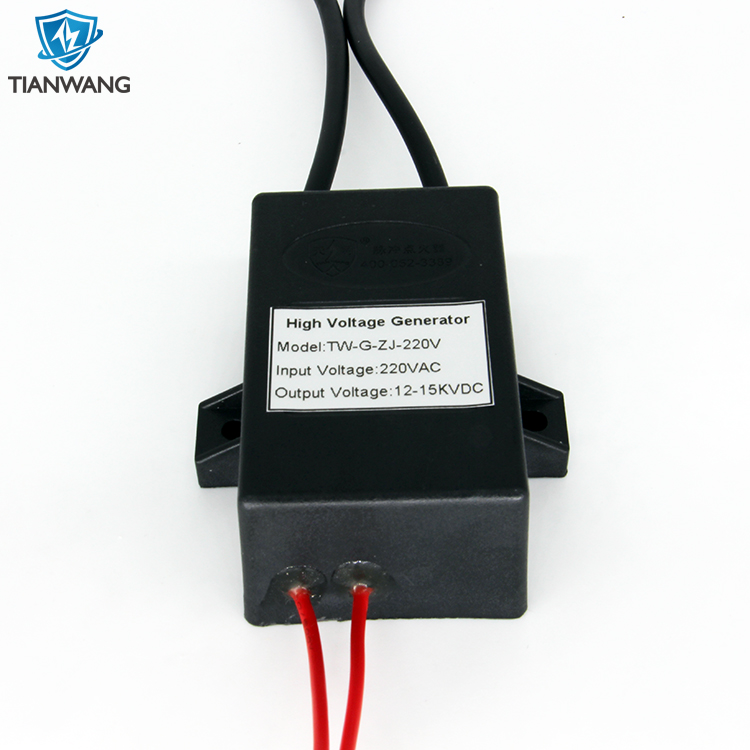

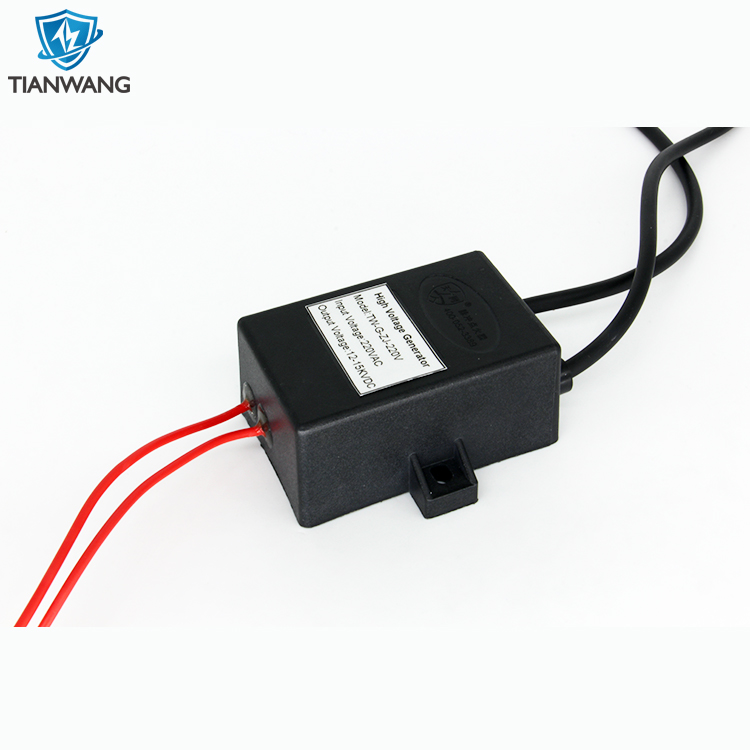

AC 220V High Voltage Electronic Gas Igniter
covering most of American and Europe market. We are expecting to become your long term partner in China.
This 220V pulse igniter is characterized by small size and high weight. This series of electronic igniters have high-efficiency ignition performance, single-pole or double pole high-voltage output, various connection and fixing systems, and the product will not be damaged after a few minutes of continuous ignition. These igniters are used in different applications according to their electrical characteristics, and can quickly ignite combustible gases such as liquefied gas, natural gas, alcohol, gasoline, and diesel.
|
Product name
|
AC 220V Electronic Gas Igniter
|
| Model |
TW-G-ZJ-220v |
|
Input Voltage
|
220 V
|
|
Output voltage
|
12-15KVDC
|
|
Discharge distance
|
8-12MM
|
|
Size
|
L66.5*W43*H30.5MM
|
|
Working Frequency
|
50HZ
|
|
Weight
|
107±1g
|
|
Input wire length |
300mm |
|
Output wire length |
800mm |
|
Input wire diameter |
Φ2.2±0.5mm Copper core wire: Φ0.15mm×24 pieces |
|
Output wire diameter |
Φ5.5±0.5mm Copper core wire: Φ0.15mm×7 pieces |
|
Output wire diameter |
Φ5.5±0.5mm Copper core wire: Φ0.15mm×31 pieces |
|
Note |
*The above parameters are manual/instrument measurement, there will be 10% error, please understand. |
1. It adopts waterproof, anti aging, and anti leakage epoxy resin potting process packaging, which improves the life and stability of the igniter, and at the same time, enables the product to be used normally in a relatively harsh environment, in humid, low temperature and other environments. There will be no short circuit or leakage phenomenon, which improves the safety of the product to a certain extent.
2. Made of imported components, the igniter has a stable working voltage, and the damage rate within one year is not more than 1%.
3. High voltage output, instant ignition, new technologies developed by cooperating, assisting, and researching with many customers ensure stable, efficient and high quality product.
3.Various payment term to choose:T/T,Western Union,Paypal
4.High quality/safe material/competitive price
5.Small order available
6.Quickly response
7.More safe and fast transport
8.OEM design for all customers
Q:How long does the igniter work?
A: It can be fired continuously for several minutes.
Q: How about the package?
A: The pulse igniters are packaged in a standard custom made outer carton, 250 pcs per carton.
Q:Can the high voltage module be customized as our need, such as put on our logo?
A:Surely our can be customized as your need, put on your logo is also available.
