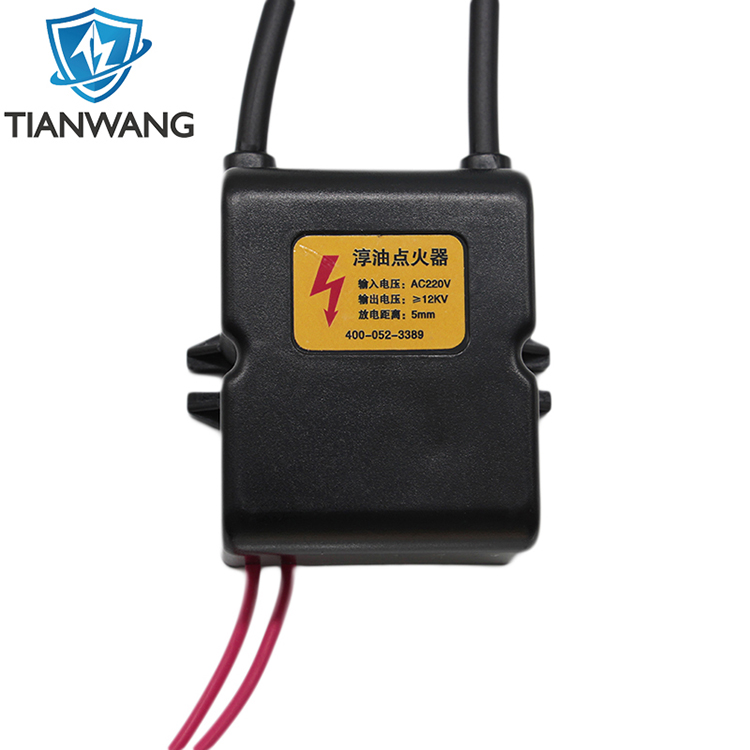

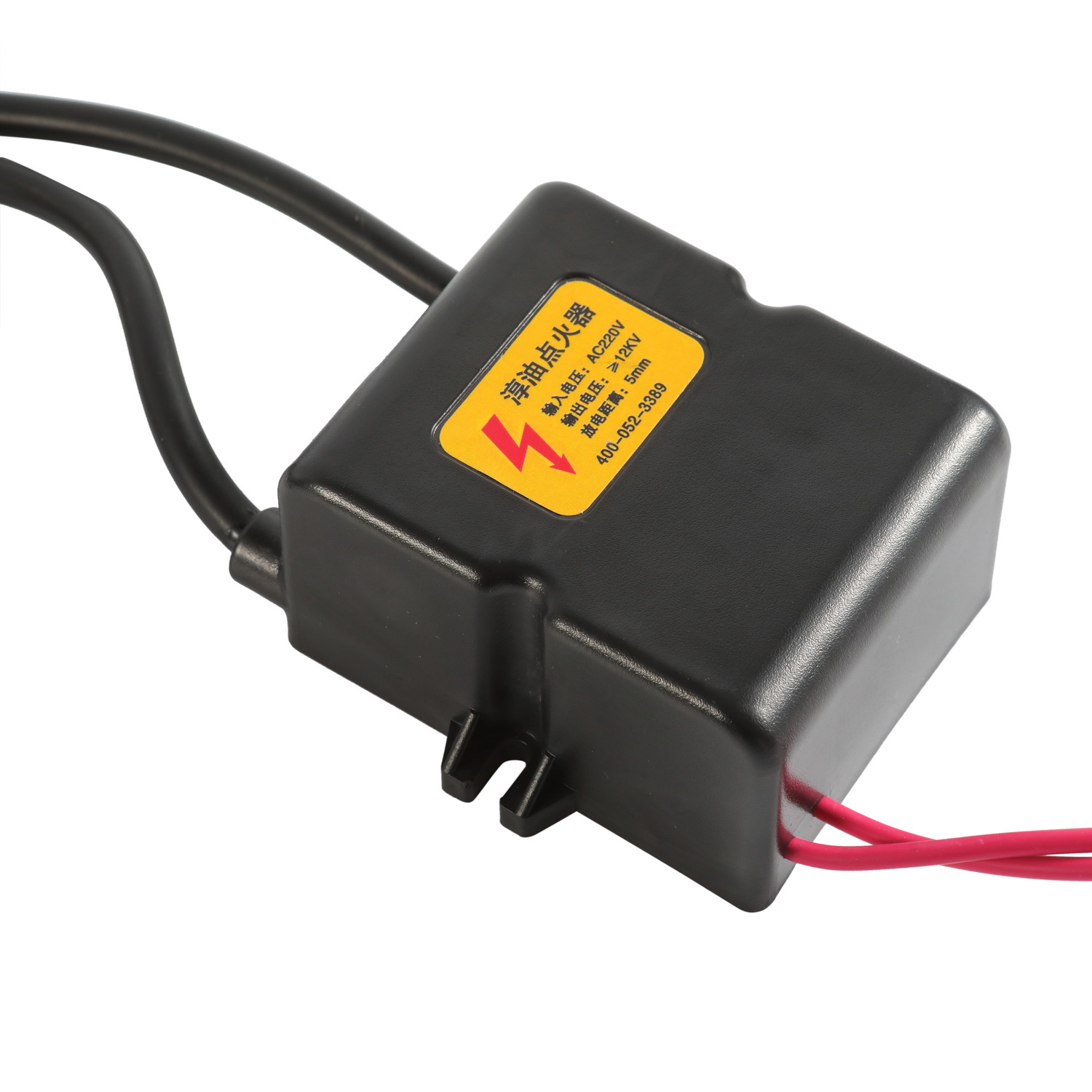

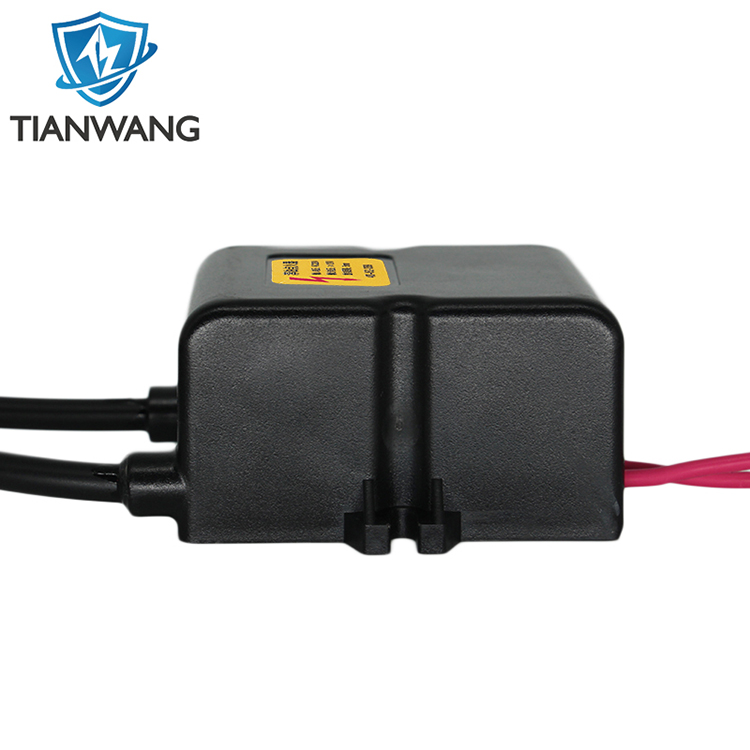

AC 220V High Voltage Fuel Oil Burner Igniter
and Europe market. We are expecting to become your long term partner in China.
This fuel oil pulse igniters have high efficiency ignition performance, single pole or double pole high voltage output, various connection and fixing systems, and 220V oil burner igniter continues to ignite without damage. These igniters have different applications according to their electrical characteristics, and can quickly ignite combustible gases such as liquefied gas, natural gas, alcohol, gasoline, diesel, and alcohol oil.
Fuel Igniters are widely used in heating installations, wall-hung boilers, industrial boilers, iron and steel smelting and other fields.
|
Product name
|
AC 220V Fuel Oil Burner Igniter
|
| Model |
TW-G-CY-220v |
|
Input Voltage
|
220 V
|
|
Output voltage
|
12-15KVDC
|
|
Discharge distance
|
5-8MM
|
|
Size
|
L73*W73*H40MM
|
|
Input wire length |
500mm |
|
Output wire length |
500mm |
|
Input wire diameter |
Φ2.6±0.5mm Copper core wire: Φ0.15mm×24 pieces |
|
Output wire diameter |
Φ6.5±0.5mm Copper core wire: Φ0.15mm×7 pieces |
|
Weight |
410±1g |
Feature:
Tianwang gas furnace igniter is suitable for various types of fuel burners and burners, oil burners, floor heating, industrial boilers, furnaces, etc., which can ignite different fuel oils such as diesel, methanol and charcoal.
The characteristics of the fuel-oil igniter: can be installed in a variety of alcohol-oil stoves or other fuel equipment.
►1. It adopts waterproof, anti-aging, and anti-leakage epoxy resin potting process packaging, which improves the life and stability of the igniter, and at the same time, enables the product to be used normally in a relatively harsh environment, in humid, low temperature and other environments There will be no short circuit or leakage phenomenon, which improves the safety of the product to a certain extent.
►2. Made of imported components, the igniter has a stable working voltage, and the damage rate within one year is not more than 1%.
►3. High voltage output, instant ignition, new technologies developed by cooperating, assisting, and researching with many customers ensure stable, efficient and high quality product quality.
►4. Powerful, can directly ignite liquid fuel such as atomized heavy oil;
►5. Accept custom service
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.
Sale of services:
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract...
After-sales service:
1. Where to buy our products for one year warranty and life long maintenance.
2. 24-hour telephone service.
3. A large stock of components and parts, easily-worn parts.
