DC 12V to 11KV High Voltage Pulse Generator
We supply DC 12V to 11KV High Voltage Pulse Generator. We devoted ourselves to high voltage generator many years,covering
most of American and Europe market. We are expecting to become your long term partner in China.
most of American and Europe market. We are expecting to become your long term partner in China.

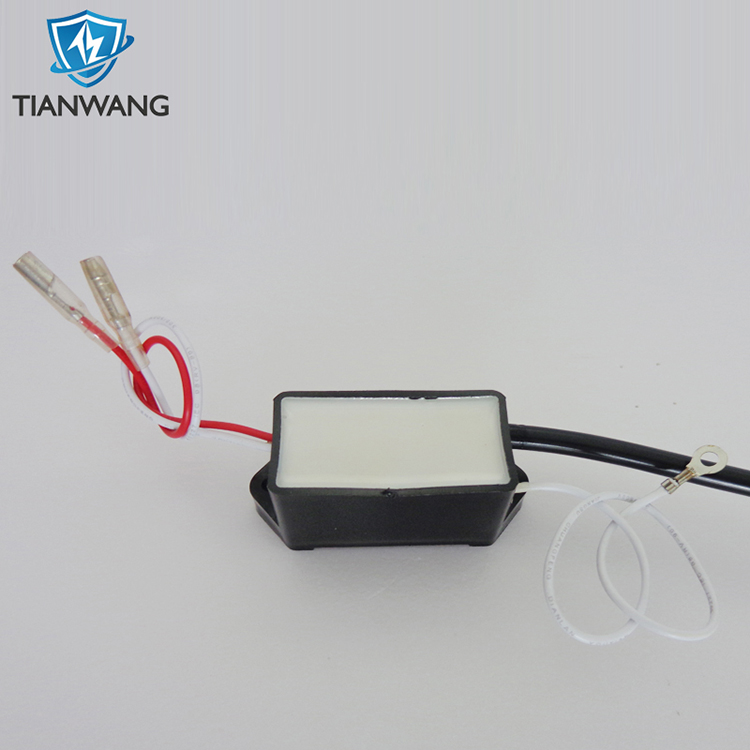

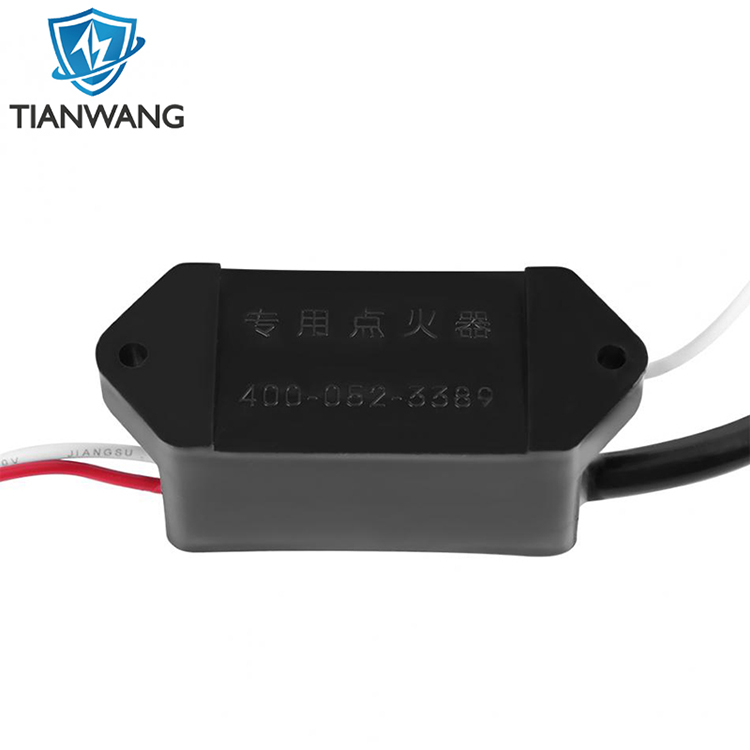

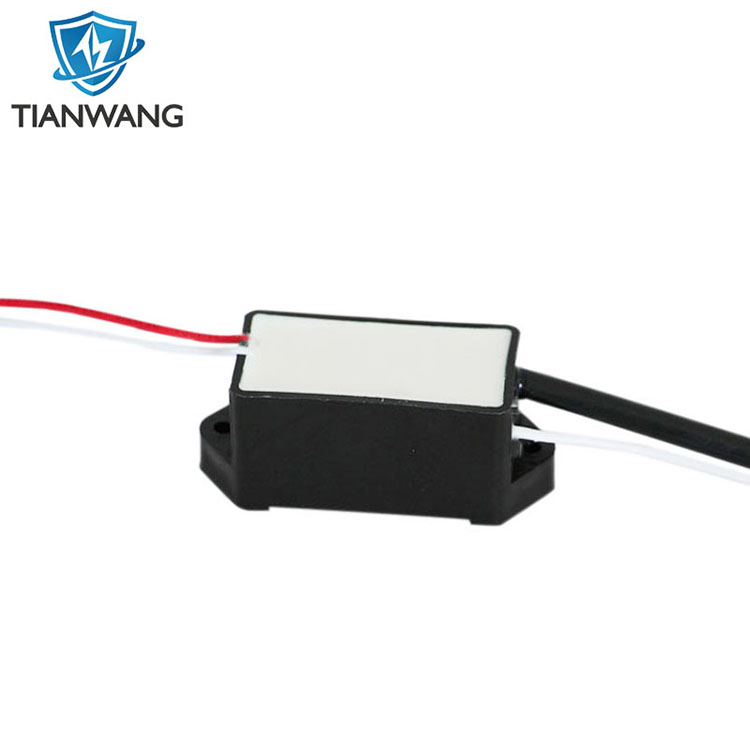

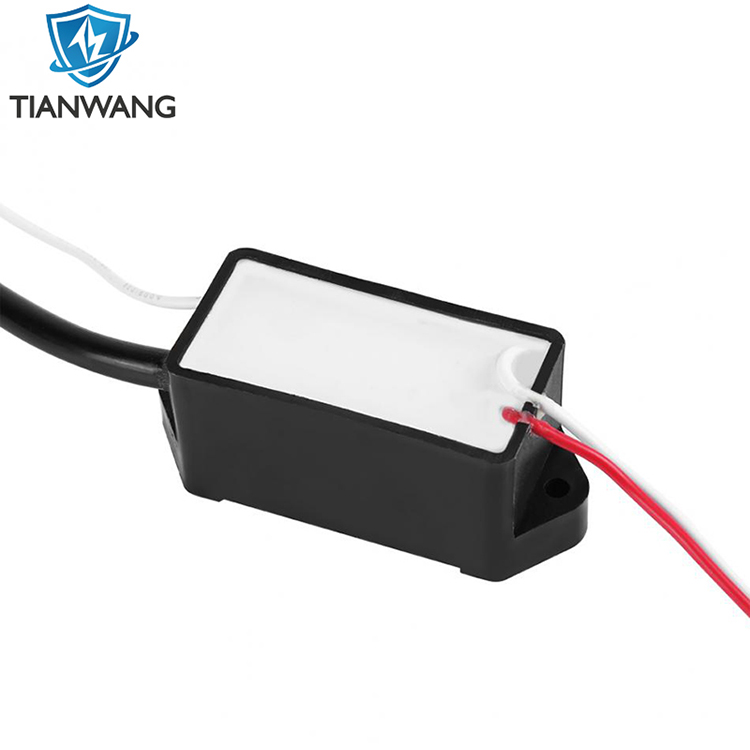

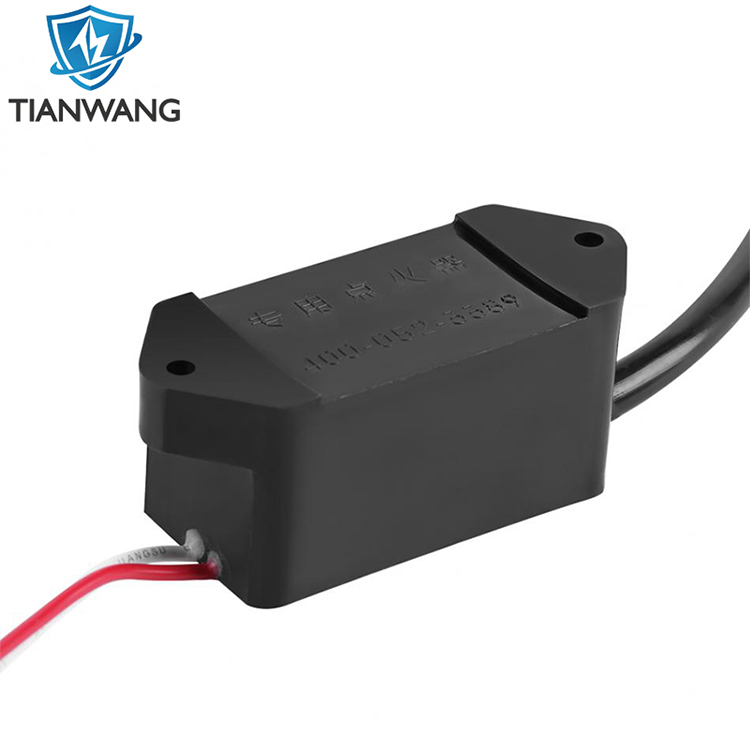

DC 12V Mist sprayer electronic igniter is applied to agricultural and forestry machinery products such as mist sprayers,
fog machines, pipe bending fog machines, unmanned sprayers, chain saws, lawn mowers, etc. This series of electronic igniters have high efficiency ignition performance, single-pole or double-pole high voltage output, various connection and fixing systems, and the product will not be damaged after a few minutes of continuous ignition.
The igniter has stable performance, controllable quality and the damage rate is less than 1% within one year.
This 12V igniter is also widely used to ignite a spark plug and forced ventilation burners for gas and light LPG burner, oil or heavy oil for civil and industrial applications. and other fields.
Support customization. Please feel free to contact us before making a reservation.
|
Product name
|
Mist Sprayer Igniter |
| Model |
TW-G-YWJ-01 |
|
Input Voltage
|
12V
|
|
Output voltage
|
11KVDC
|
|
Arc distance |
5-8MM
|
|
Size
|
L77*W58*H30MM
|
|
Working Current |
1000 mA |
|
Input Wire Color |
Red(positive), White(negative) |
|
Input line length |
200mm |
|
Output line length |
270-370mm |
|
Weight |
115±1g |
|
Remarks *The above parameters are manual/instrument measurement, there will be 10% error, please understand. |
|
Feature:
This module is a finished module of high voltage negative-ion generator.
It can output high voltage pulse current, small size and high efficiency.
The input voltage is DC12V and will output DC11kV high voltage.
It can be used for fog machine igniter, smoke sprayer igniter, electric gun salute, gas stove, etc.
The peripheral circuit is simple, simply connect to switch and battery, and the discharge intensity is great.
We have 30 years of experience in the production of high voltage generator and pulse igniter . There are more than 100 types of transformer specifications. The application fields include: agricultural and forestry machinery, mist sprayers, fog machines, drug sprayers, electronic wedding equipment, gas and oil boilers, floor heating, electric sprayers, scientific experiments, electrical equipment and other industries. High-voltage package can be divided into DC high-voltage generator, AC high-voltage generator, pulse high-voltage generator, arc ignition coil and other step-up transformers.
If there are special requirements, product parameters, product size drawings, design drawings, bills of materials, process flow, test indicators, etc. can be provided, and samples can also be customized.
Q. How long does the igniter work?
A: It can be fired continuously for several minutes.
Q. How to distinguish input and output lines and how to wire them?
A: The input wire is a thin red and white wire (red positive and white negative), and the output wire is a thick white and black wire (the white wire is grounded). The color of the wire can also be customized according to customer requirements. The red wire of the input wire is connected to the positive pole, and the white wire is connected to the negative pole.
Q. How about the package?
Mist sprayer igniters are all packed in a standard customized outer box, with a box of 300 pcs.
