DC 3.6V Boost Step Up Power Module
We supply DC 3.6V boost step up power module We devoted ourselves to high voltage power module many years,
covering most of American and Europe market.We are expecting to become your long term partner in China.
covering most of American and Europe market.We are expecting to become your long term partner in China.
This security high voltage generator is widely used in various fields such as electronic protective equipment, security equipment, security flashlights, taser guns, high-voltage power grids, farm power grid electric fences, electronic shields, protective gloves, spark plug testing and so on.
Its working principle is that the high-voltage generator is powered by DC power supplies of different volts, and the transformer is driven by an oscillation circuit to boost the voltage once, and the voltage is boosted twice by the voltage doubler rectifier module, and finally a DC high voltage discharge is formed.
Package included:

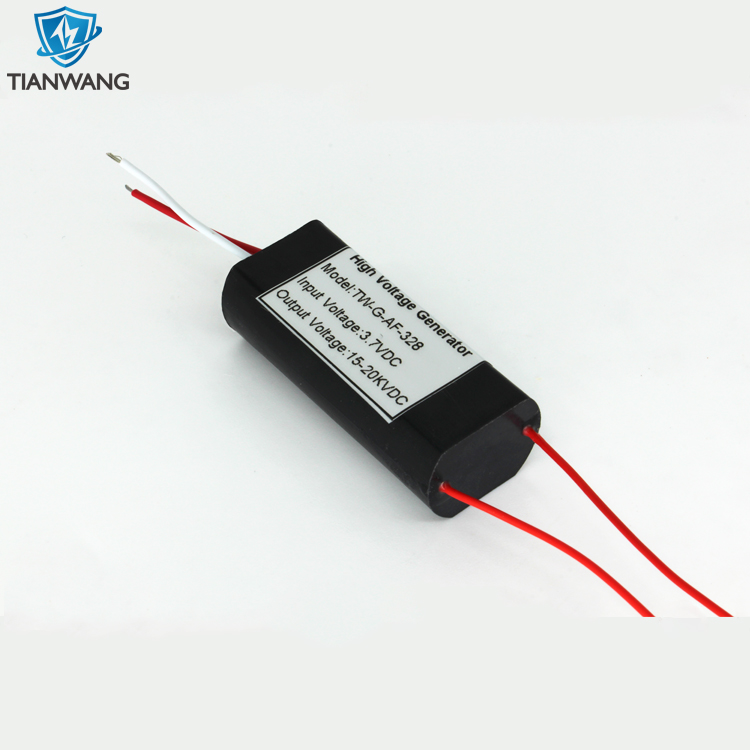

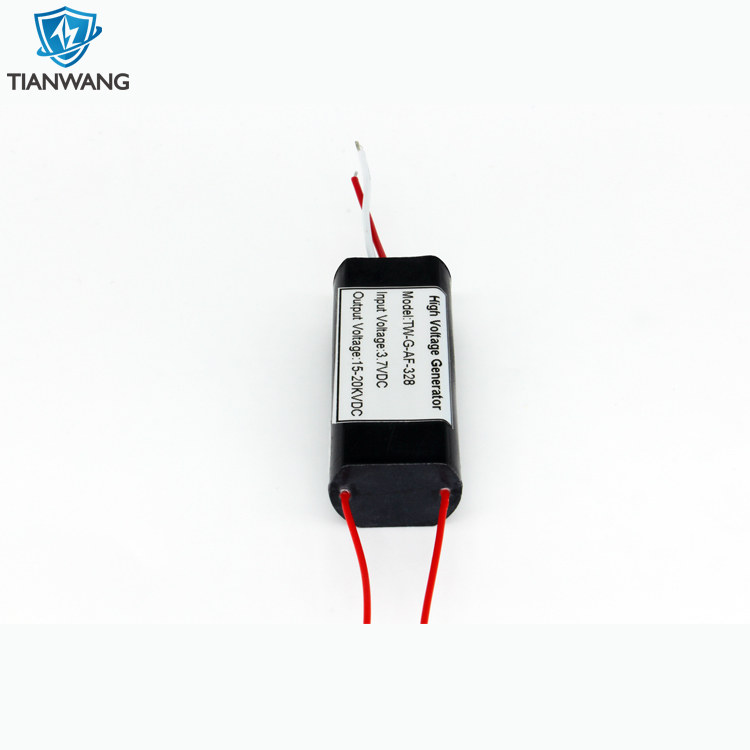

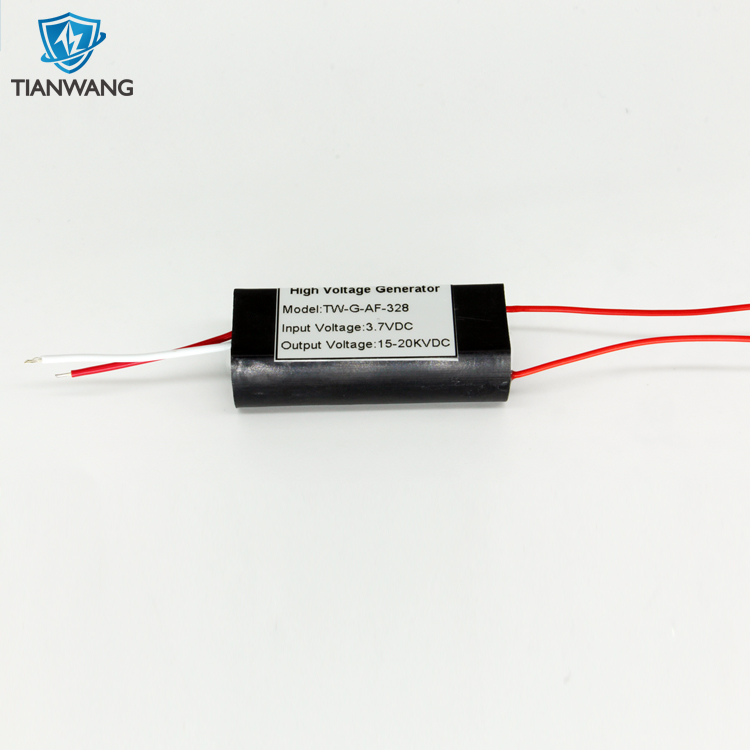

DC 3.6v Boost Step-up Power Module High-voltage Generator
| Product name |
step up power module |
|
Model |
TW-G-AF-328 |
|
Input Voltage |
3.6VDC |
|
Output voltage |
15-20KVDC |
|
Igniting distance |
10mm |
|
Working Current |
2400mA |
|
Size |
L41mm×W24mm×H15.5mm |
| Input Line Length |
45（65）MM |
|
Output Cable Length |
45（65）MM |
|
Weight |
35±1g |
►01. Rich production experience and technical research and development capabilities, each product has been carefully produced and tested, and is committed to providing customers with high-quality products and good services.
►02. The high-voltage DC generator adopts imported electronic components with high voltage resistance and long life, double-layer insulated wires, high temperature resistance, anti-leakage, and good safety performance.
►03. The high-voltage step-up transformer shell is made of anti-aging, good insulation PP material, and epoxy resin vacuum packaging that meets the ROHS standard.
Application : Security equipment,Explosion-proof device:Electric shock fetter, Electric shock handcuffs,electric gloves,Shields,Stun gun,Taser
Advantage:
Tianwang has 30 years of experience in the R&D and production of high voltage module and igniters.
We have fully automated production workshops and strict quality inspections. The product production cycle is
short and the quality is guaranteed. The products sold have stable performance, long life, and are not easy to age.
.
1.Product quality control and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 12 hours;
4. OEM & ODM service are available;
5. Providing first-class after-sales services to the customers.
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 12 hours;
4. OEM & ODM service are available;
5. Providing first-class after-sales services to the customers.
Q:Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, and we have build up our company since 1990.
Q:Where is your factory located?
A:Our factory address is : No.5 Huaxiang Road Chengnan Development Zone, Jingjiang City, Jiangsu Province, China.
Q:How can i get to your factory?
A:Our factory is near shanghai Airport, we can pick you up in the airport.
Q:What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 10 pieces, we can send you catalog, warmly welcome you to come visit our company.
Q:Which level of quality are your products?
A:We have got CE, FCC, ISO, SGS, TUV, BSCI certificate so far.
Q：Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
