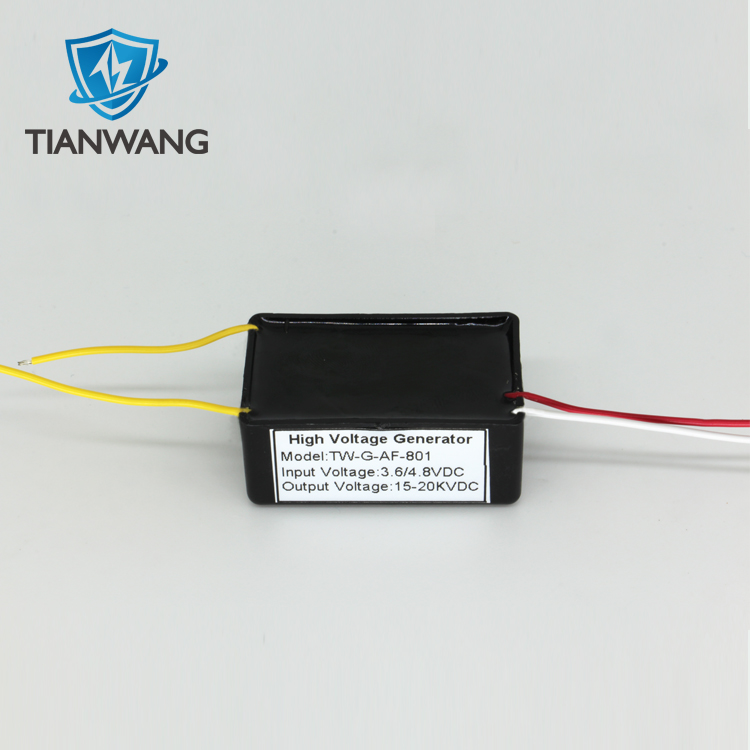

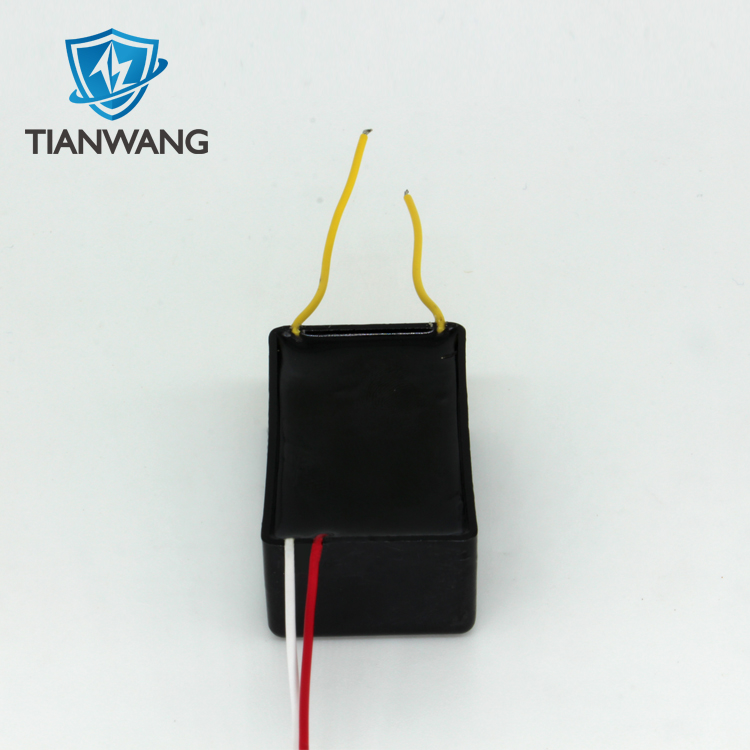

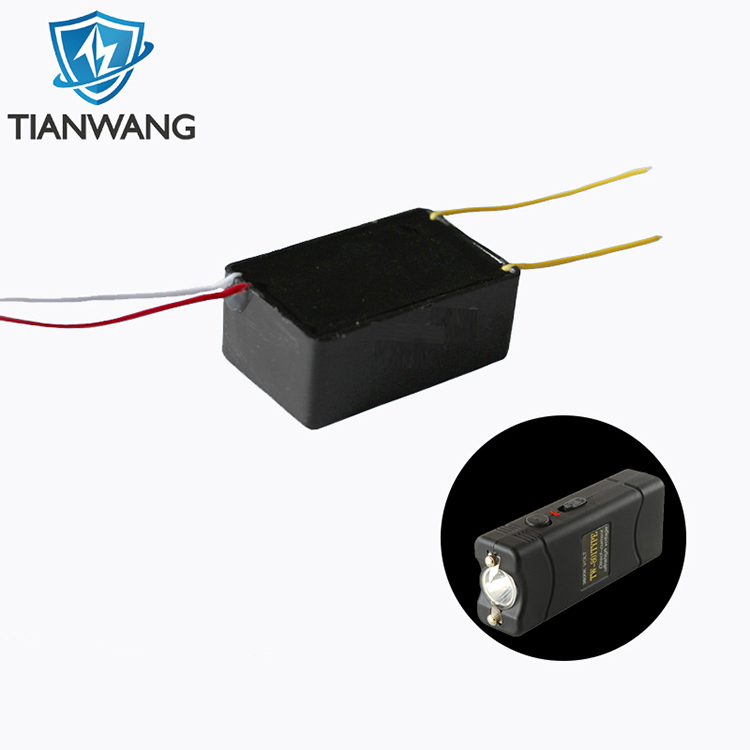

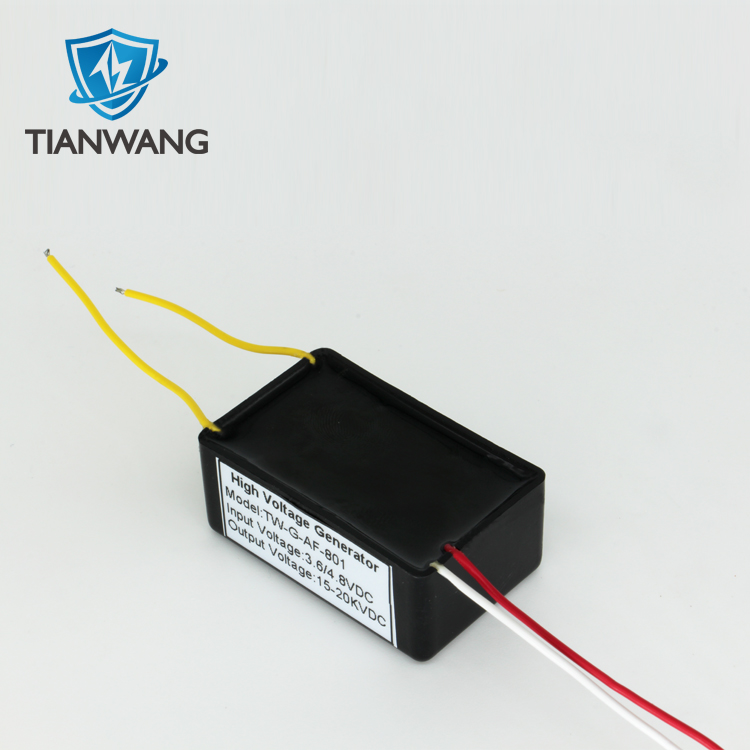

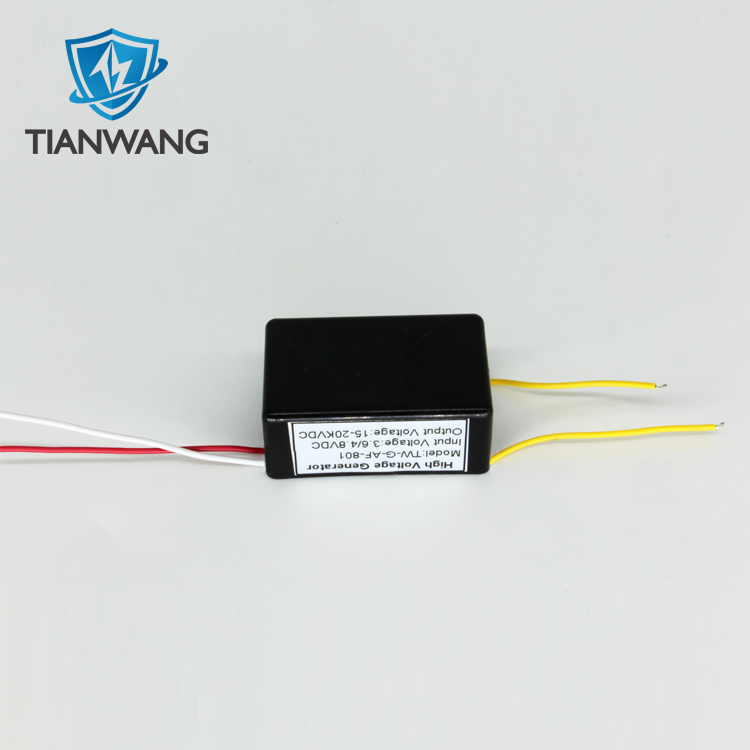

DC 4.8V High Voltage Transformer Generator
We supply DC 4.8V high voltage transformer generator. We devoted ourselves to step up module many years,
covering most of American and Europe market. We are expecting to become your long term partner in China.
covering most of American and Europe market. We are expecting to become your long term partner in China.
Package included:
High Voltage Pulse Generator DC 4.8V Super Arc Pulse Ignition Transformer Boost Step-up Module(Square Shape)
Description:
Description:
This boost generator is widely used in various fields such as electronic protective equipment, security equipment, security flashlights, taser guns, high-voltage power grids, farm power grid electric fences, electronic shields, protective gloves, spark plug testing and so on.
The working principle of the DC high-voltage generator is powered by DC power sources of different volts, the transformer is driven by the oscillating circuit to boost the voltage once, and the voltage is boosted twice by the voltage doubler rectifier module, and finally a DC high-voltage discharge is formed.
| Product name |
step up power module |
|
Model |
TW-G-AF-801 |
|
Input Voltage |
4.8VDC |
|
Output voltage |
20KVDC |
|
Igniting distance |
10mm |
|
Working Current |
1800mA |
|
Size |
L43mm×W26mm×H17mm |
| Input Line Length |
50 MM |
|
Output Cable Length |
60 MM |
|
Weight |
50±1g |
Features:
►01. Rich production experience and technical research and development capabilities, each product has been carefully produced and tested, and is committed to providing customers with high-quality products and good services.
►02. The high-voltage DC generator adopts imported electronic components with high voltage resistance and long life, double-layer insulated wires, high temperature resistance, anti-leakage, and good safety performance.
►03. The high-voltage step-up transformer shell is made of anti-aging, good insulation PP material, and epoxy resin vacuum packaging that meets the ROHS standard.
Application :
Security equipment,Explosion-proof device:Electric shock fetter, Electric shock handcuffs,electric gloves,Shields,Stun gun,Taser.
We have 30 years of experience in the production of high voltage generator. There are more than 100 types of high voltage transformer specifications. The application fields include: agricultural and forestry machinery, mist sprayers, fog machines, drug sprayers, electronic wedding equipment, gas and oil burner, floor heating, electric sprayers, scientific experiments, electrical equipment and other industries. High-voltage generator can be divided into dc high voltage generator, high voltage module, high voltage coil, pulse high voltage generator, high voltage arc transformer and other step-up transformers.
The continuous working time and ignition distance of each high voltage generator are different, and customers will also have a headache when choosing. You can call or consult online customers for inquiries, just bring the parameters you need: size, input and output voltage, input and output cable length, working current, ignition distance, etc. If there are special requirements, specifications, design drawings, materials, process flow, test indicators, etc. can be provided, and samples can also be customized.
.
1.We have many experience on OEM/ODM work.
1.We have many experience on OEM/ODM work. 2.We can customize high voltage electronic products as customer demand.
3.Technical service for assembling.
4.Variety types for selection, prompt deliver.
5.Well-equipped with extensive sales network.
6.Advanced production equipment and production technique.
7.Competitive Price (Factory direct price) with our good service.
8.Excellent quality testing equipment, 100% inspection on critical .
