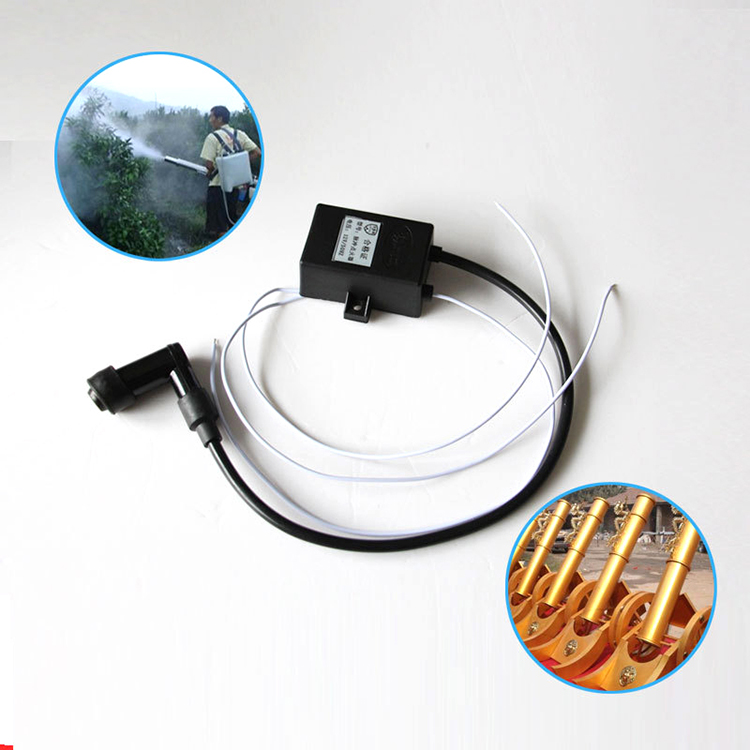

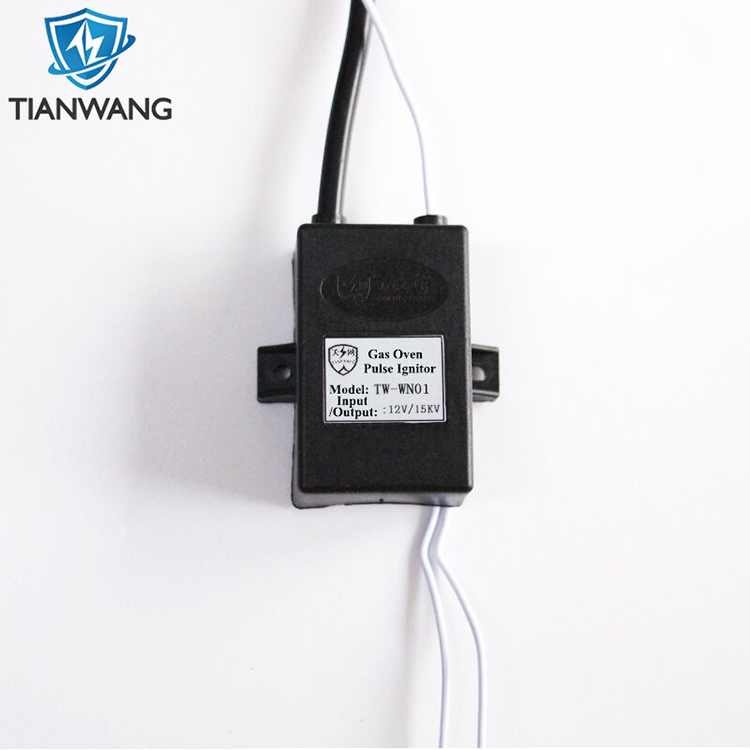

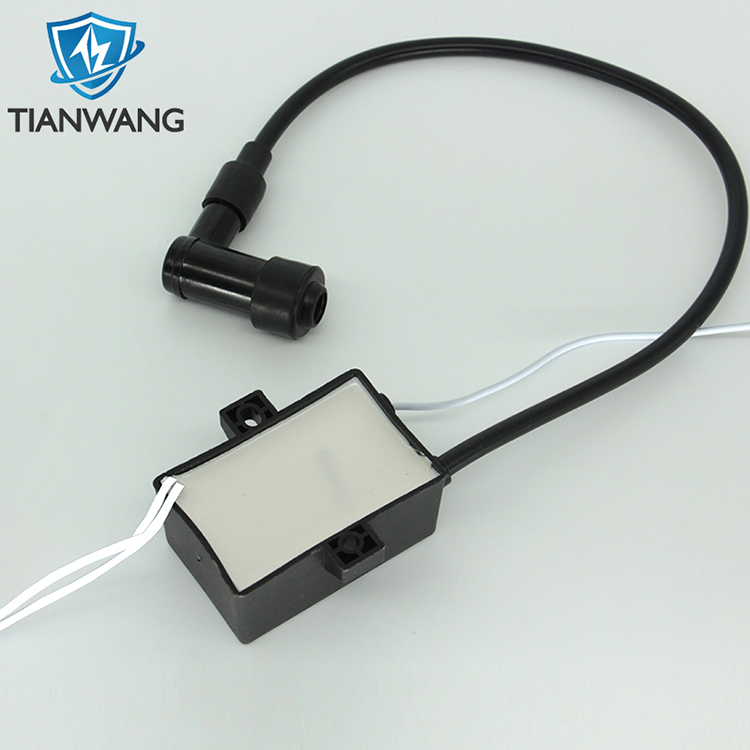

Wedding Igniter 12V Universal High Voltage Generator
covering most of American and Europe market. We are expecting to become your long term partner in China.
This 12V wedding electronic igniter is a high-tech inverter for scientific production, the finished module of transformer/booster
After inputting DC 12V voltage at the input terminal, tens of volts DC voltage can be obtained at the output end.
Can be used as a high-pressure source in scientific experiments, electronic salutes, electronic instruments, anion generators, and electronic firecrackers, boilers, iron and steel smelting and other fields.
The module is manufactured using the principle of tesla coil and outputs high-voltage pulse current, small volume and high efficiency.
The peripheral circuit is simple (only need to connect the switch, the battery can) the discharge intensity is fierce.
|
Product name |
Wedding igniter 12V DC universal high voltage generator |
|
Model |
TW-G-WN-01 |
|
Input voltage |
12 V |
|
Output voltage |
15KVDC |
|
Discharge distance |
8-12MM |
|
Size |
L66.5mm×W43mm×H30.5mm |
|
Current |
≥100mA |
|
Weight |
165±1g |
|
Output Cable Length |
36cm |
|
Input line length |
200mm |
|
Output line length |
400mm |
|
Input wire diameter |
Φ2.2±0.5mm Copper core wire: Φ0.15mm×24 pieces |
|
Output wire diameter |
Φ2.2±0.5mm Copper core wire: Φ0.15mm×7 pieces |
|
Output wire diameter |
Φ6±0.5mm Copper core wire: Φ0.15mm×31 pieces |
|
Remarks *The above parameters are manual/instrument measurement, there will be 10% error, please understand |
|
Features:
►1. It adopts waterproof, anti-aging, and anti-leakage epoxy resin potting process packaging, which improves the life and stability of the igniter, and at the same time, enables the product to be used normally in a relatively harsh environment, in humid, low temperature and other environments There will be no short-circuit or leakage phenomenon, which improves the safety of the product to a certain extent.
►2. Made of imported components, the pulse igniter has a stable working voltage, and the damage rate within one year is not more than 1%.
►3. High voltage output, instant ignition, new technology developed by cooperating, assisting, and researching with many customers,
ensure stable and efficient product quality.
Working mode: When the power is turned on, electric spark is generated, and electric power is not turned off, and electric spark continues.
Packaging: epoxy resin vacuum packaging, moisture, shock, corrosion, temperature resistance.
