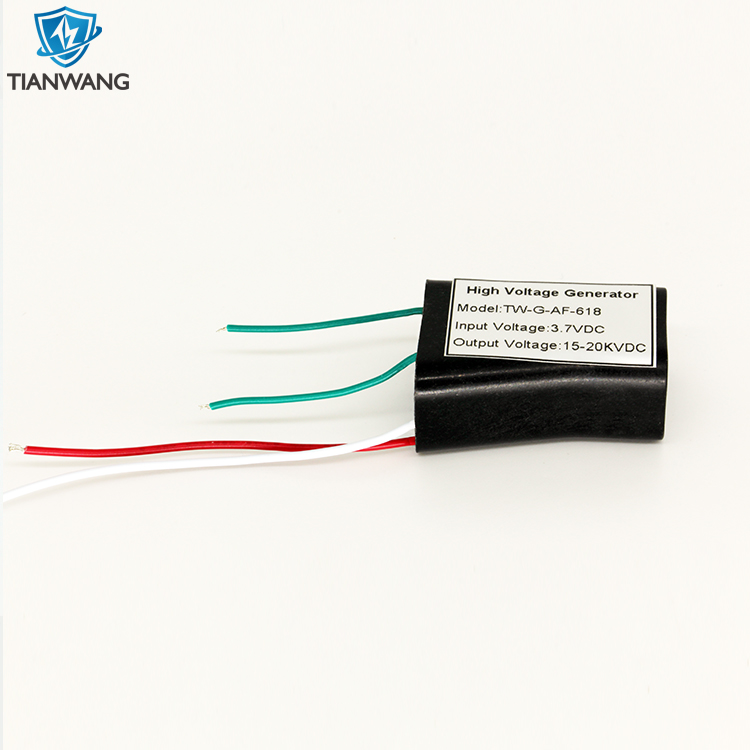

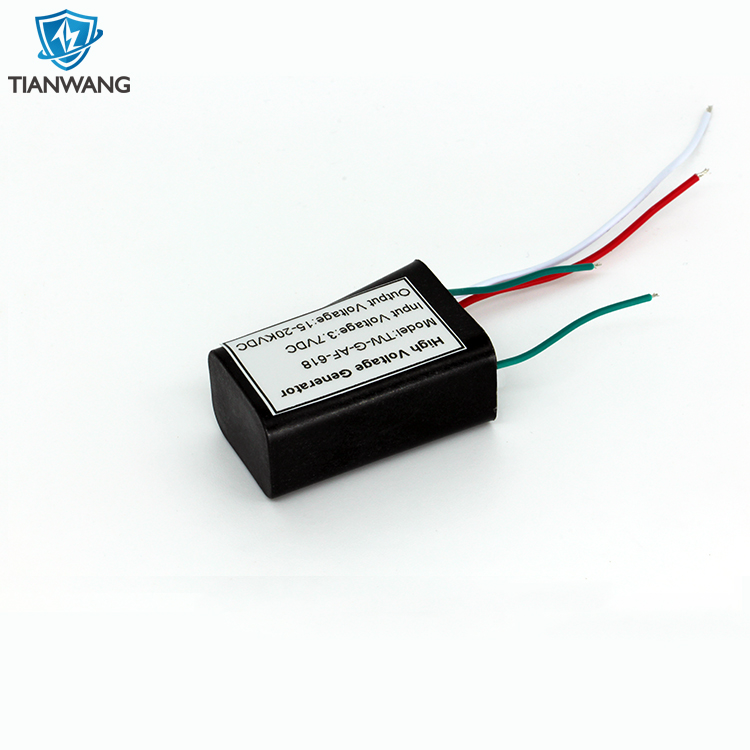

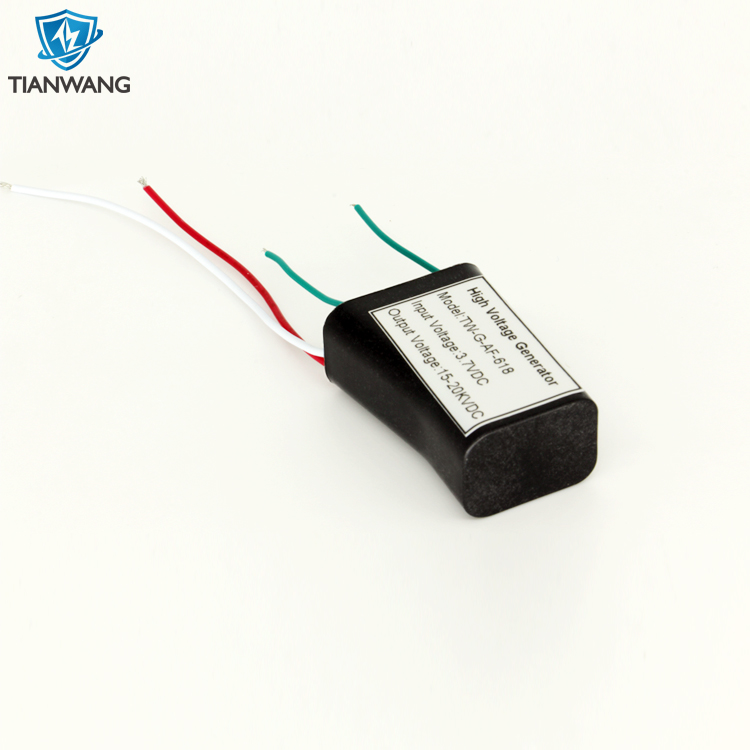

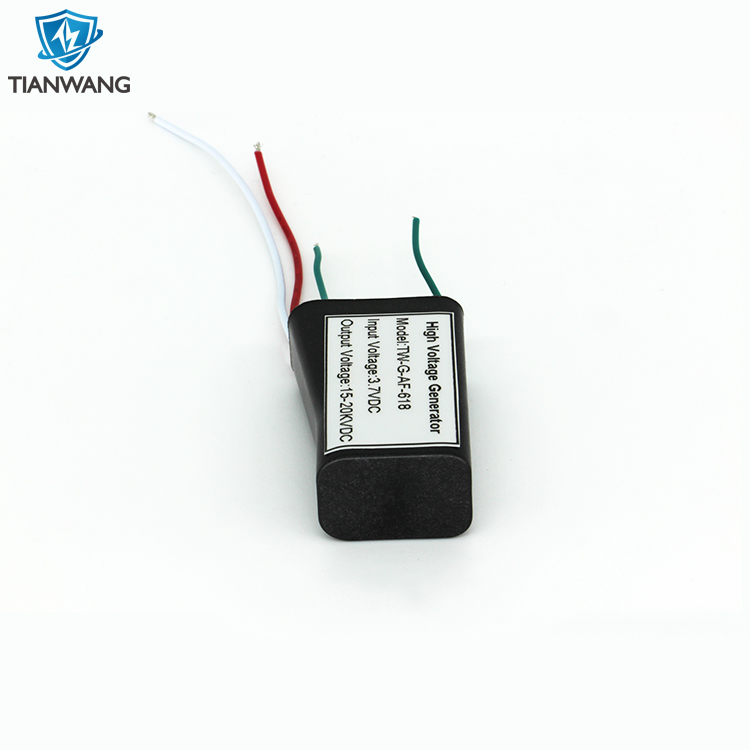

DC 4.8V High voltage arc generator for taser
We supply DC 4.8V High voltage arc generator for taser. We devoted ourselves to many years,covering
most of American and Europe market. We are expecting to become your long term partner in China.
most of American and Europe market. We are expecting to become your long term partner in China.
The working principle of the high voltage inverter generator is that it is powered by DC power sources of different volts, and the transformer is driven by the oscillation circuit to boost the voltage once, and the voltage is boosted for the second time by the voltage doubler rectifier module, and finally a DC high voltage discharge is formed.
This module is a high voltage booster module/high voltage generator made by high voltage transformer through a circuit composed of components. It can be used for student science experiments/electronic instruments/anion generators/science small production.
| Product |
high voltage generator taser |
| Model |
TW-G-AF-618 |
|
Input voltage |
4.8 VDC |
|
Output voltage |
14 KVDC |
|
Discharge distance |
8MM |
|
Working current |
3000MA |
|
Input line diameter |
1.2±0.03MM |
|
Output line diameter |
1.6±0.03 MM |
|
Input line length |
75 MM |
|
Output line length |
65 MM |
|
Weight |
30.7±1g |
|
Remarks *The above parameters are manual/instrument measurement, there will be 10% error, please understand |
|
Features:
The high voltage booster module outputs high voltage pulses, small size, high efficiency, and violent discharge intensity.
Application :
Security equipment,Explosion-proof device:Electric shock fetter, Electric shock handcuffs,electric gloves,Shields,Stun gun,Taser
Jiangsu Tianwang Solar Technology Co., Ltd. was established in 1990. The company specializes in R&D and production of high voltage coils, electronic igniters, pulse transformers, and used in electric electrostatic sprayers, fog machines, electronic lighters, insecticidal lamps etc.. High voltage accessories for products such as gas and oil equipment, ozone generators, and security equipment. The company has a complete product production chain, advanced production equipment and professional R&D department. The experienced sales team can provide timely solutions to meet customer needs and provide long-term, efficient and close sales service. We have fully automatic production equipment, rich production experience and technical capabilities, and has sophisticated inspection equipment to create good products for customers.
The company can provide exclusive customized services. Due to the different product requirements of each customer, we will have professional sales staff to connect with you to clearly grasp your needs and do our best to meet your needs. The company has a number of technical personnel, providing customized design, product proofing, professional testing, to solve your worries. Look forward to working with you.
Q1:Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, and we have build up our company since 1990.
Q2:Can you produce high voltage booster module as our requirements?
Yes, OEM is available. We have professional team to do anything what you want from us.
Q3.Is the sample available?
Yes, we are providing free of samples are available for you to check the quality once confirmed after 1~2day.
Q4.Is there the products tested before shipping?
Yes, of course. All of our high voltage inverter generator we all will has been 100%QC before shipping.
We test every batch every day.
