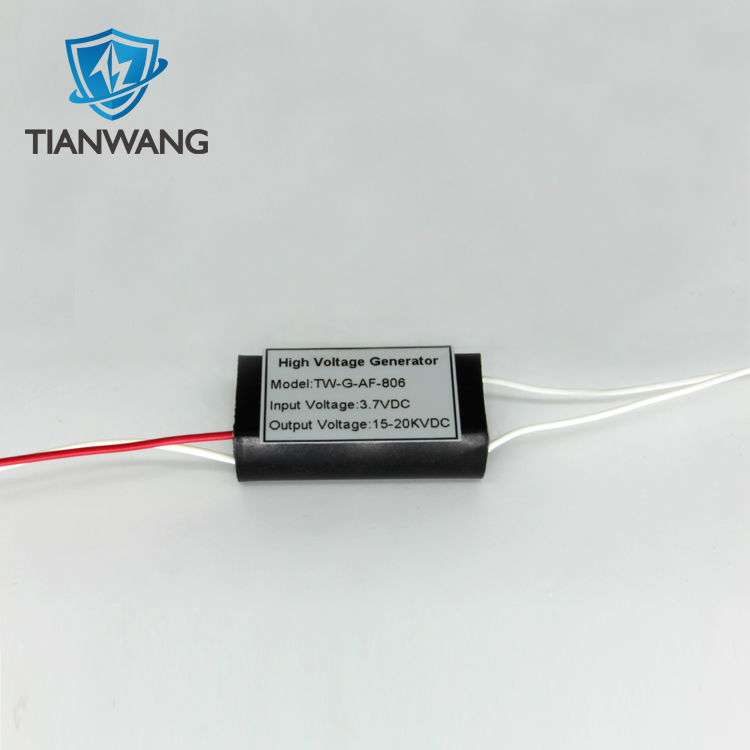

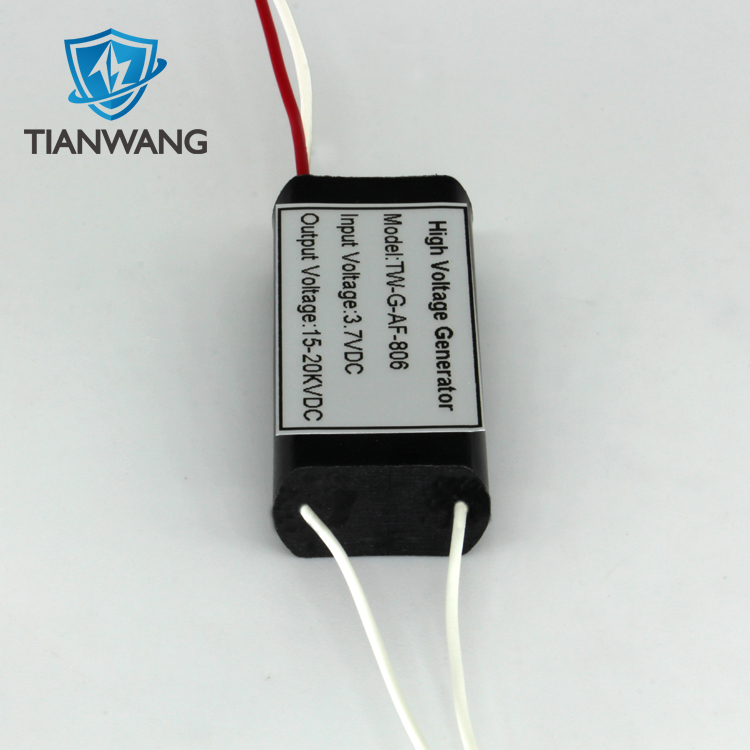

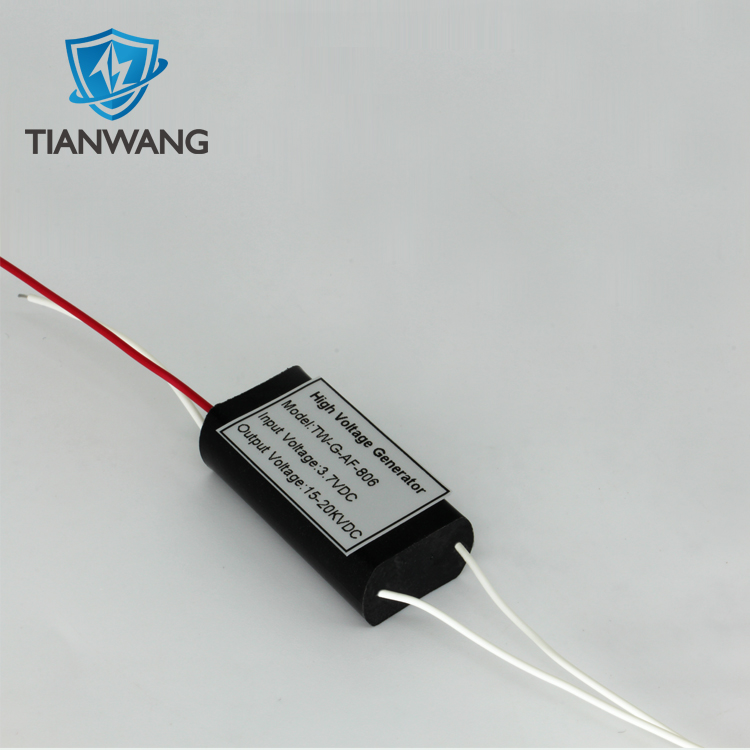

DC 3.7V to 20000V Boost Step-up Power Module High-Voltage Generator
The input voltage of high voltage generator is DC 3.7V, and output DC20KV，the input and output voltage can be customized
ꁆ
ꁇ
The input voltage of high voltage generator is DC 3.7V, and output DC20KV，the input and output voltage can be customized
The distance between high pressure discharges is 10 mm-20 mm. Please use it intermittently, continuous work does not allow more than 2-3 minute and the output side does not allow shorting.
This security high voltage generator is widely used in various fields such as personal protection products,self protection devices,self-defense items,high school scientific experiments,high-voltage power grids, farm power grid electric fences, electronic shields, protective gloves and so on.
| Product | DC 3.7V to 20000V Boost Step-up Power Module High-Voltage Generator |
| Model |
TW-G-AF-806 |
|
Input voltage |
3.7VDC |
| Product Size | 42*22*14mm |
|
Output voltage |
20 KVDC |
|
Discharge distance |
18MM |
|
Working current |
≥2800MA |
|
Input line diameter |
1.2±0.03MM |
|
Output line diameter |
1.2±0.03 MM |
|
Input line length |
70 MM |
|
Output line length |
110 MM |
|
Weight |
65±1g |
|
Remarks *The above parameters are manual/instrument measurement, there will be 10% error, please understand |
|
Features:
Small size , high efficiency, simple external circuit (just plug in the switch , the battery can be)
Application :
personal protection products,self protection devices,self-defense items,high school scientific experiments,high-voltage power grids, farm power grid electric fences, electronic shields, protective gloves and so on.
1. We have produced high-voltage generators for 30 years and the product performance is stable;
2. Small volume, light weight, convenient transportation;
3. The circuit board is used inside the product to replace the traditional electronic components, which has long service life and fast delivery.
1. If your existing technical parameters do not meet our needs, is there any solution
We support customization, which can be customized according to your needs.
2. What if problems occur during installation?
We have been producing high voltage module for more than 30 years and have a professional technical team. If you have any questions, please feel free to contact us and let us solve them together with you.
