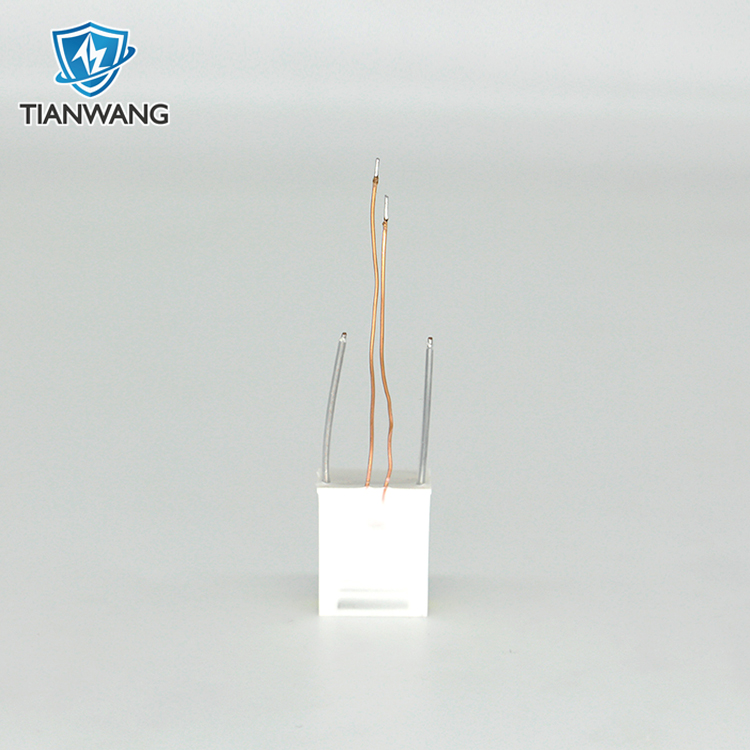

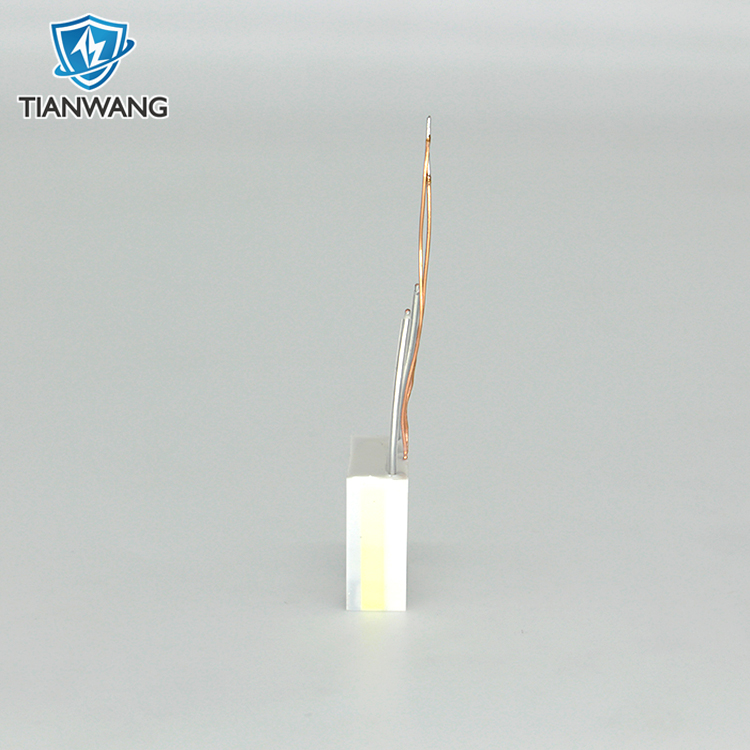

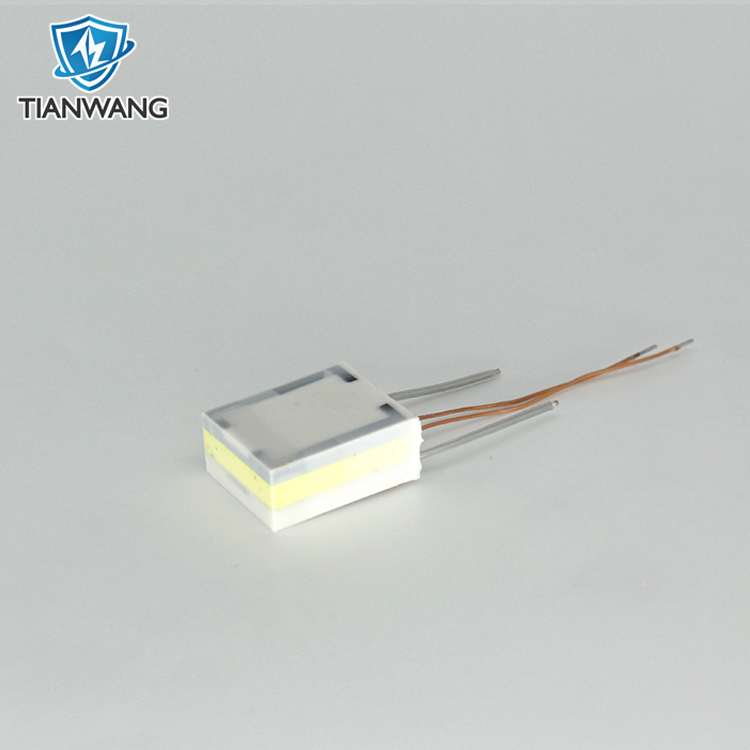

12V high power arc ignition lighter coil parts
experiments and moxibustion instruments. It is also suitable for heaters etc. The pulsed arc can easily ignite flammable materials such as paper and candles.
This is pulse arc lighter (smoke detector) kit. Its use is an instant spot device. Its size is very small. This DIY electronic lighter can be used for research and study by electronic enthusiasts.
TW-G-DH-202 high power arc generator module can be used as accessories for electric arc lighters, scientific
experiments and moxibustion instruments. It is also suitable for heaters etc. The pulsed arc can easily ignite flammable materials such as paper and candles.
The arc generator module needs to be connected to the battery and the drive board to work. Compared with traditional ignition methods, arc ignition has the characteristics of safety, environmental protection and wind resistance.
|
Product name |
12V high power arc ignition lighter coil parts |
|
Model |
TW-G-DH-202 |
|
Input Voltage |
DC12V |
|
Output voltage |
1.8KV |
|
Material |
Ferrite Core, bobbin, copper wire, epoxy |
|
input power |
57W |
|
Current |
4.8A |
|
Size |
L22.8mm×W18.5mm×H9.5mm |
|
Weight |
10.2g |
|
Packing |
Standard Carton |
|
Input line length |
40mm |
|
Output line length |
40mm |
Features:
01. The arc produced by this 12V high power arc ignition lighter coil parts is like a ball of fire, which is intensively ignited, making it easier to ignite combustibles.
02. The use of high voltage resistant, long-life electronic components, double-layer transparent Teflon insulated wire, high temperature resistance, anti-leakage, and safer.
03. The product adopts anti-aging, good insulation PP material shell, and then is vacuum sealed with epoxy resin that meets ROHS standards.
04. Stable performance and check on every level. Each of our arc lighter transformer will go through strict quality inspection
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
A:We control product quality by IQC, and 100% quality testing before packing and delivery. We had passed ISO9001 certificate report.
