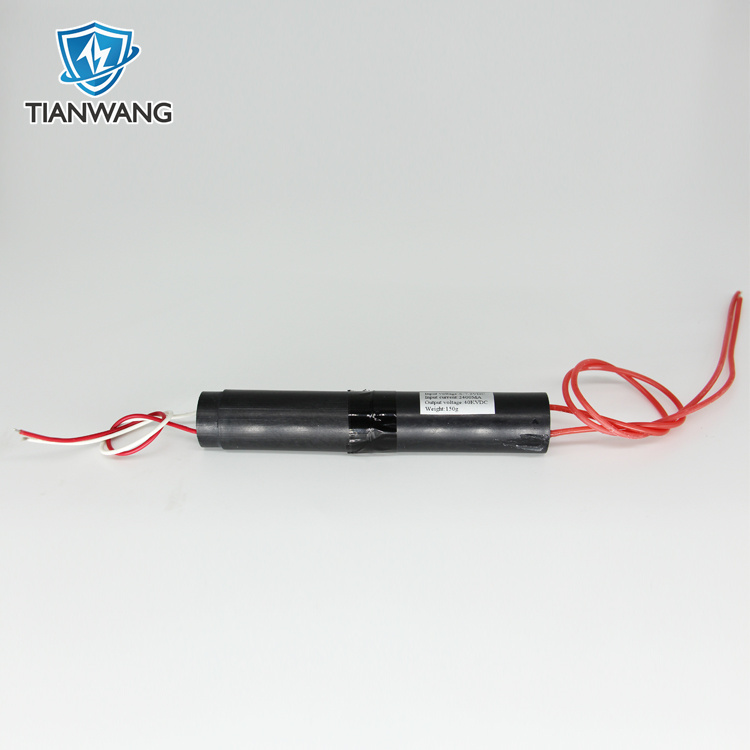

DC 6-7.2v to 400kV Boost Step-up Power Module
★input voltage: DC 6 V to 7.2 V. Current: 2400mA.
★High pressure type: the type of pulse current.Output voltage: 400000 v(Please pay attention to safety).
★High pressure discharge distance between: 30 mm.

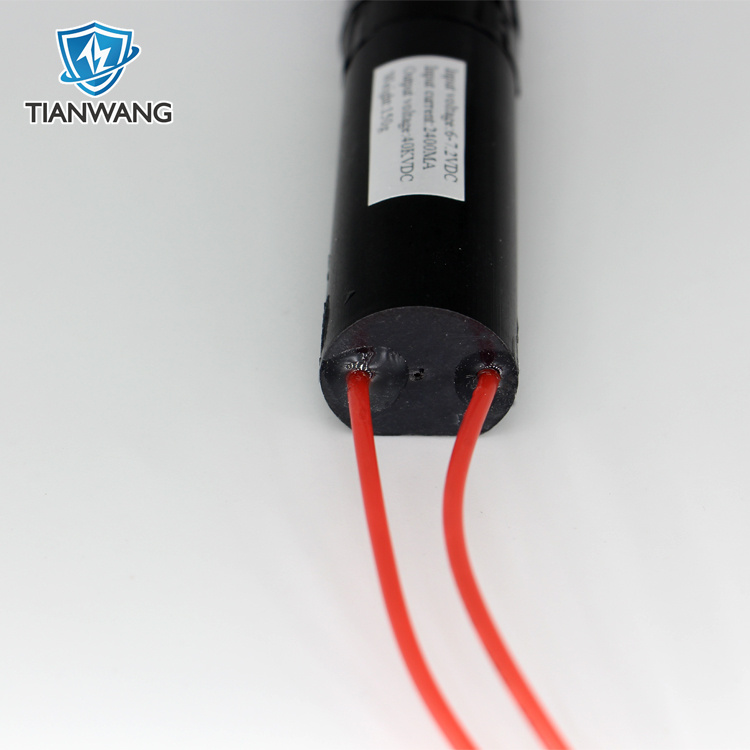

★The output high voltage wire length: 320 mm.Input power cord length: 220 mm (the red line is positive).
★High pressure type: the type of pulse current.Output voltage: 400000 v(Please pay attention to safety).
★High pressure discharge distance between: 30 mm.
★The output high voltage wire length: 320 mm.Input power cord length: 220 mm (the red line is positive).
| Product Name | High Voltage DC Power Supply |
| Model No. | TW-G-AF-M02 |
| Input Voltage | 6-7.2 VDC |
| Output Voltage | 400KVDC |
| Weight | 150g |
| Current | 2400mA |
| Igniting distance | 30mm |
| Input Line Diameter&Length | Φ2.0±0.03mm & 220mm |
| Output Fire Line Diameter&Length | Φ2.2±0..03mm & 320mm |
| Size | L 135×Disc 24.5×Flat 22mm |
Descriptions:
This boost generator is widely used in various fields such as electronic protective equipment, security equipment, security flashlights, taser guns, high-voltage power grids, farm power grid electric fences, electronic shields, protective gloves, spark plug testing and so on.
The working principle of the DC high-voltage generator is powered by DC power sources of different volts, the transformer is driven by the oscillating circuit to boost the voltage once, and the voltage is boosted twice by the voltage doubler rectifier module, and finally a DC high-voltage discharge is formed.
We have 30 years of experience in the production of high voltage generator. There are more than 100 types of high voltage transformer specifications. The application fields include: agricultural and forestry machinery, mist sprayers, fog machines, drug sprayers, electronic wedding equipment, gas and oil burner, floor heating, electric sprayers, scientific experiments, electrical equipment and other industries. High-voltage generator can be divided into dc high voltage generator, high voltage module, high voltage coil, pulse high voltage generator, high voltage arc transformer and other step-up transformers.
The continuous working time and ignition distance of each high voltage generator are different, and customers will also have a headache when choosing. You can call or consult online customers for inquiries, just bring the parameters you need: size, input and output voltage, input and output cable length, working current, ignition distance, etc. If there are special requirements, specifications, design drawings, materials, process flow, test indicators, etc. can be provided, and samples can also be customized.
Q:Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, and we have build up our company since 1990.
Q:Where is your factory located?
A:Our factory address is : No.5 Huaxiang Road Chengnan Development Zone, Jingjiang City, Jiangsu Province, China.
Q:How can i get to your factory?
A:Our factory is near shanghai Airport, we can pick you up in the airport.
Q:What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 10 pieces, we can send you catalog, warmly welcome you to come visit our company.
Q:Which level of quality are your products?
A:We have got CE, FCC, ISO, SGS, TUV, BSCI certificate so far.
Q：Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
