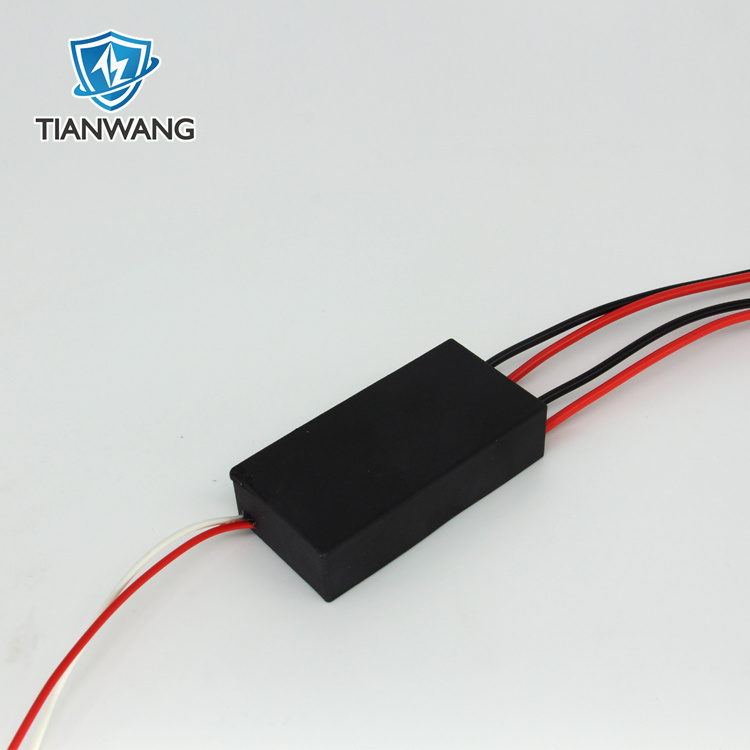

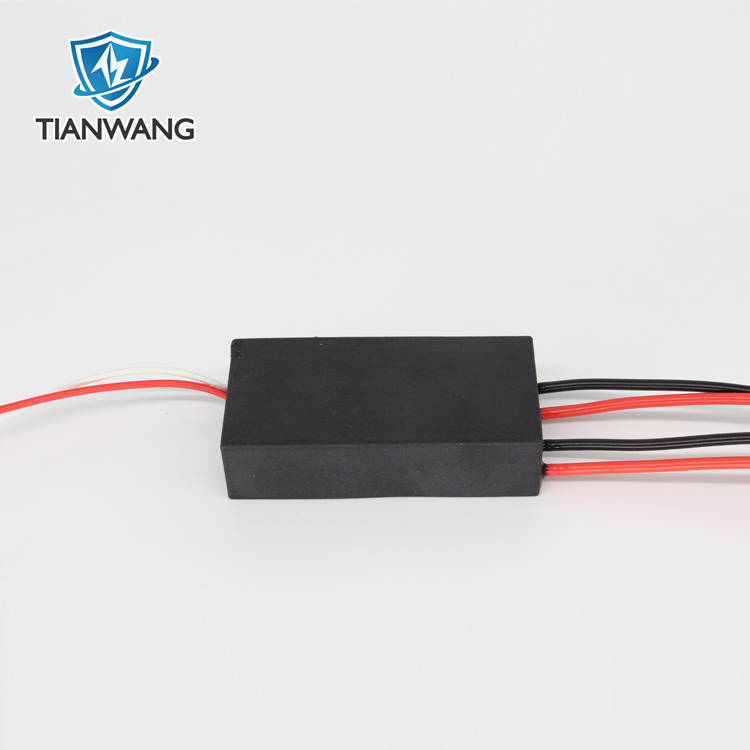

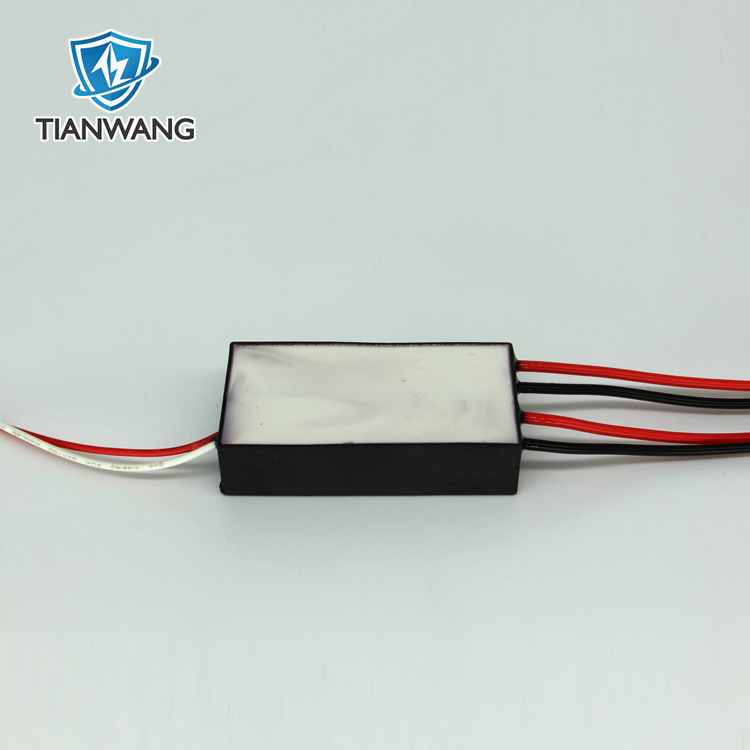

DC 7.4V Dual Arc High Voltage Inverter
This dual arc ignition coil is powered by 7.4V input voltage, through the oscillation circuit to drive the transformer for a primary boost, through the double voltage rectifier module for a secondary boost,it can produce 30KV dc high voltage discharge.
The input voltage of step up boost coil is DC 7.4V, and output DC30KV，the input and output voltage can be customized.
| Product | DC 7.4V Dual Arc High Voltage Inverter |
| Dimension | L80mm×W40mm×H20mm |
| Input voltage | 7.4V |
| Output voltage | 30KV |
| Current | 5600mA |
| Ignition distance | 13mm |
| Length of input line | 125（130）mm |
| Length of output line | 150 mm |
| Diameter of input line | Φ1.2±0.03mm |
| Diameter of output line | Φ2.5±0.03mm |
| Notes:The above parameters are manual/instrument measurement, there will be 10% error, please understand. | |
★input voltage: DC 7.4 V. Input current: 5.6 A.
★High pressure type: the type of pulse current.Output voltage: 30000 v(Please pay attention to safety).
★High pressure discharge distance between: 10 mm - 20 mm.
★The output high voltage wire length: can be customized.

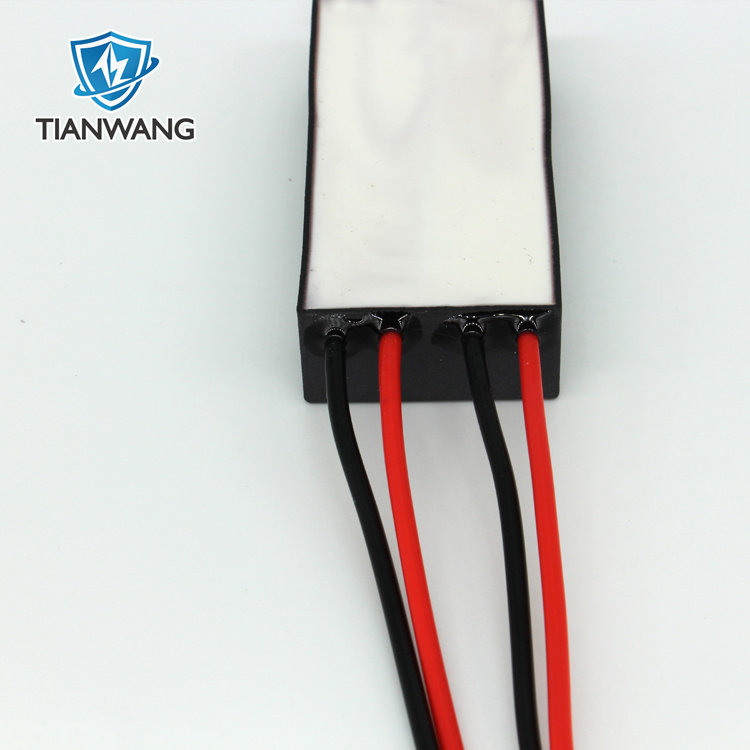

★Wiring: Red and white power connection red line:"+" white line "-"
output : the other side ,red line:"+" black line "-"
Notice:
- The arc ignition inverter should avoid the use of electricity in high voltage no-load .
- Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure are not a voltage as high as possible , you must provide enough current.
1.Question:Can this run continuously?
Answer:It will overheat and burn out if it's run for too long.
2.Question:What is the spark length?
Answer:10-13mm.
3.Do you accept Customization?
Yes,We are manufacturer with 30 years experience in developing and producing different kinds of high voltage generators.
After reading your requirements,our engineer will recommend the right one for you.
