High Voltage Generator Arc Ignition Step Up Boost Coil Module Lighter Accessories

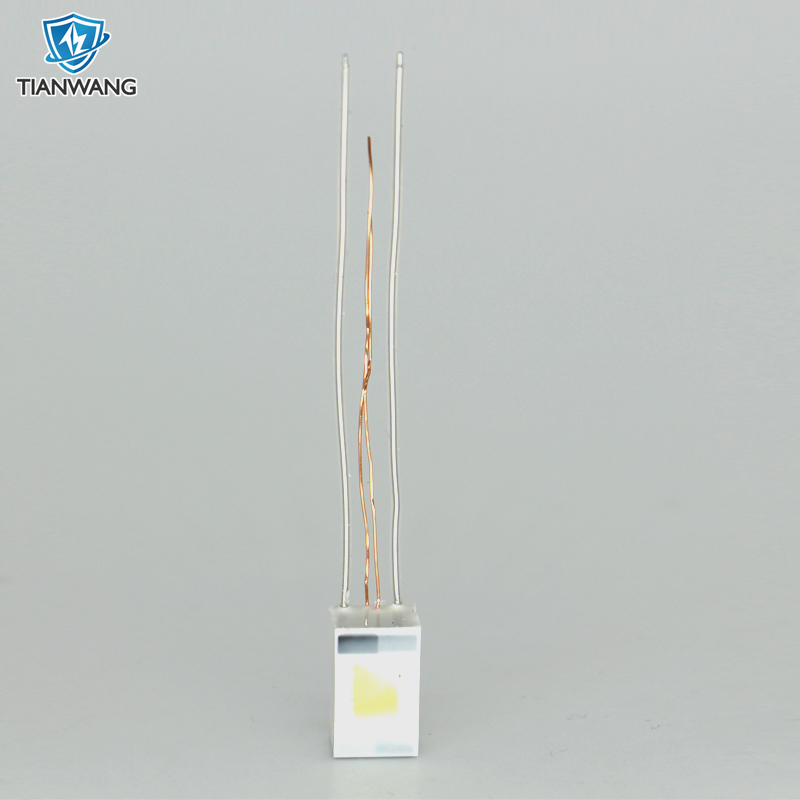

This TW-G-DH-226 mini arc generator transformer is mainly used for candle lighter, usb cigarette lighters, moxibustion instruments, scientific experiments, magic props, negative-ion generator, gas and fuel equipment. You can quickly ignite paper, cigarettes, alcohol, fireworks, candles and other combustible objects.
The high voltage arc generated by the PCB board can electric shock the animals, and the electronic beef nose rings can be used to drive animals, which is convenient for the ranch owner and farmers to manage.
"TIANWANG" can be equipped with a set of pulse arc lighter kit, which contains arc generator transformer, PCB boards, lithium batteries. Customized parameters. The quality is stable and durable.
|
Item name |
Arc generator transformer |
| Model | TW-G-DH-226 |
|
Input voltage |
3.7V |
|
Output voltage |
7KV |
|
Working frequency |
18-20KHZ |
|
Discharge distance |
6mm-6.5mm |
|
Length of input line |
58mm |
|
Material |
Teflon copper wire |
|
Copper wire temperature resistance |
150℃ |
|
Size of electronic lighter module |
L9.5xW15xH7.9mm |
|
Weight |
4g |
Note:
Please allow 0-3mm error due to manual measurement. Make sure you do not care before you bid.

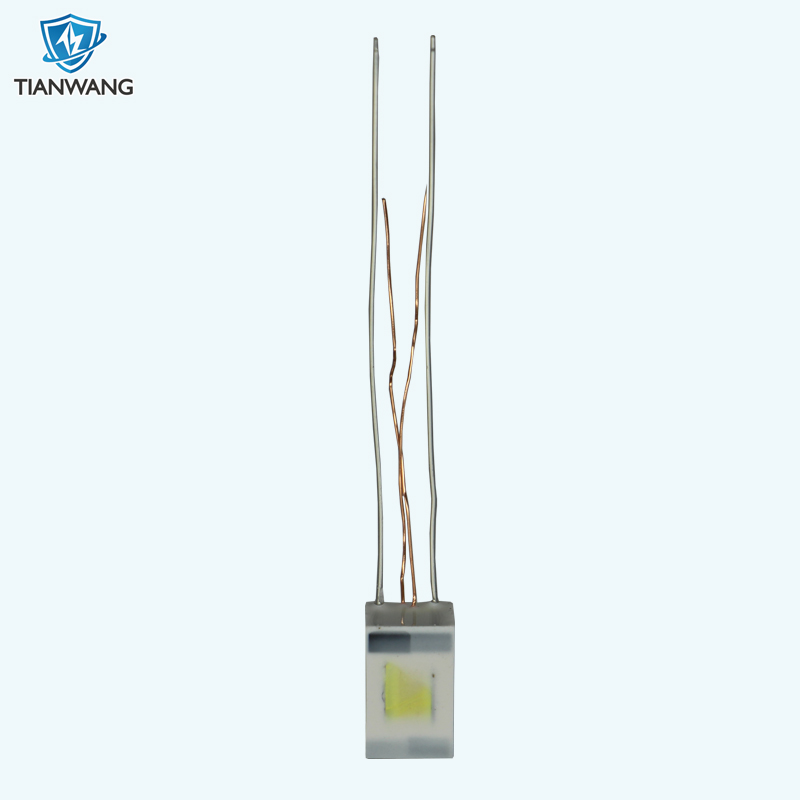

Features and application of flyback transformer plasma lighter :
Electronic lighter module, smaller volume
1. TIANWANG has 32 years of producing various high voltage generators. The experience of pulse igniter is experienced. The high voltage arc generator uses a fully automatic winding machine . The product performance is stable and the quality is reliable.
2. High voltage arc generator coil has a variety of specifications of skeleton to meet different size needs.
3. High voltage arc generator coil adopts electronic components with long life, double -layer transparent iron fluorine insulation wires, high temperature resistance, leakage electricity, and safer.
4. The product uses anti aging and insulated PP material shells, and then encapsulates the ROHS standard epoxy resin vacuum packaging.
5. Each of our electronic lighter module will undergo strict quality testing.
Q1.How your quality guarantee?
We have 100% quality guarantee to customers. We will be responsible for any quality problem.
Q2.Is the sample available?
Yes, we are providing free of samples are available for you to check the quality once confirmed after 1~2day.
