Stable Performance Arc Igniter Module For Plasma Beauty Apparatus Flame Torch Electronic Ignition

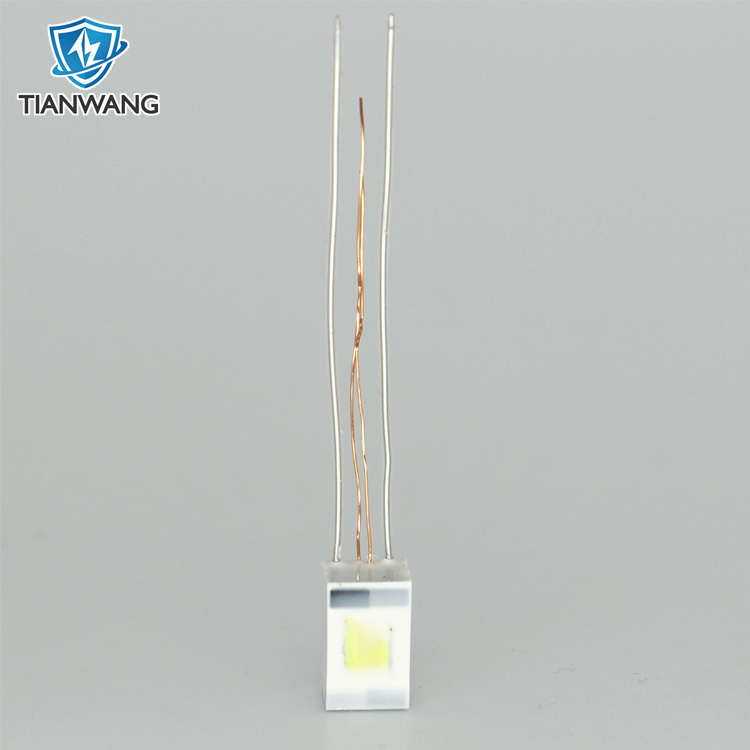

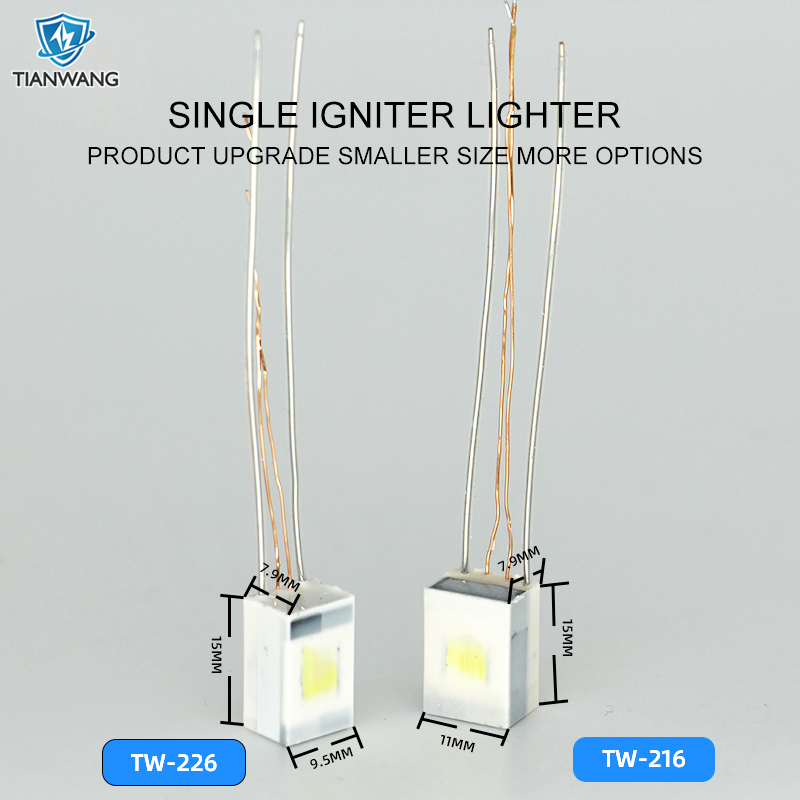

TW-226 is a new arc igniter module developed by Tianwang in 2022. Compared with TW-216, this electric arc igniter is smaller in size and can be applied to more products. The TW-226 arc generator transformer is used as electronic equipment,lighter accessories, customers can design lighter and smaller rechargeable lighter products.
| Single Arc Transformer |
TW-226 | Input Voltage(V) | 3.2-4.2 |
| Working Current(A) | 1.8-2 | ||
| Rated Power(W) | 9.3--10.4 | ||
| Output Voltage(KV) | 7.5-8.5 | ||
| Working Frequency(KHz) | 18-20 | ||
| Arc Distance(mm) | 6-6.5 | ||
| Length of Input Wire(mm) | 40(Customizable) | ||
| Length of Output Wire(mm) | 40(Customizable) | ||
| Size | 9.5MM×7.8MM×15MM | ||
| Material of High Voltage Wire | Teflon copper wire |
TW-226 is widely used in charging lighters, arc igniter, moxibustion instrument igniter, magic props, or other gas and fuel equipment.
TW-226 cigarette lighter transformer is widely used in various ignition devices, which can easily ignite flammable substances such as paper, fuel oil, combustible gas, candles, fireworks, wormwood and so on.
