Latest Design Arc Generator Coil

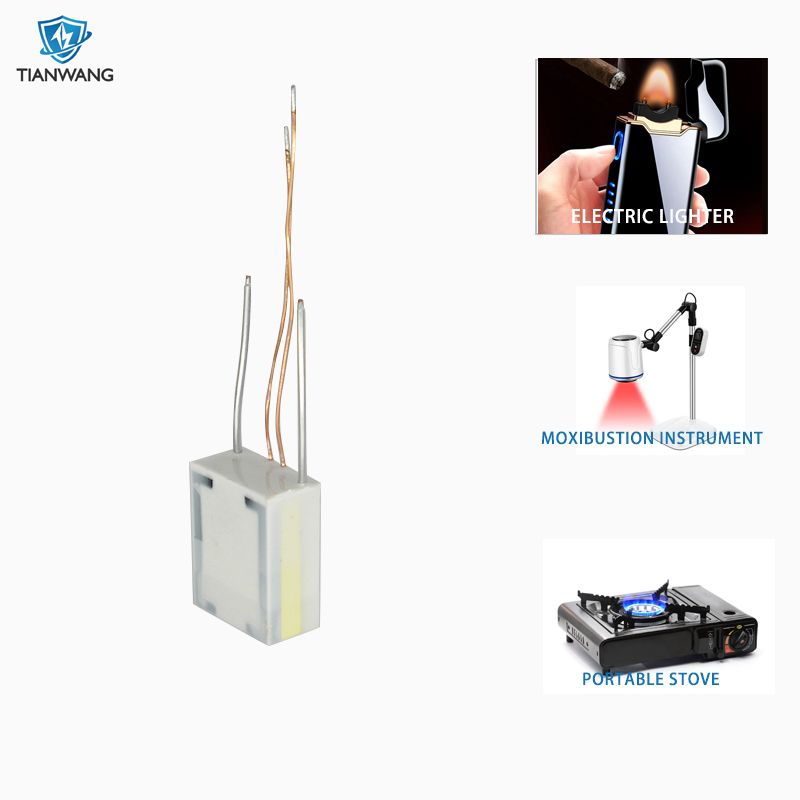

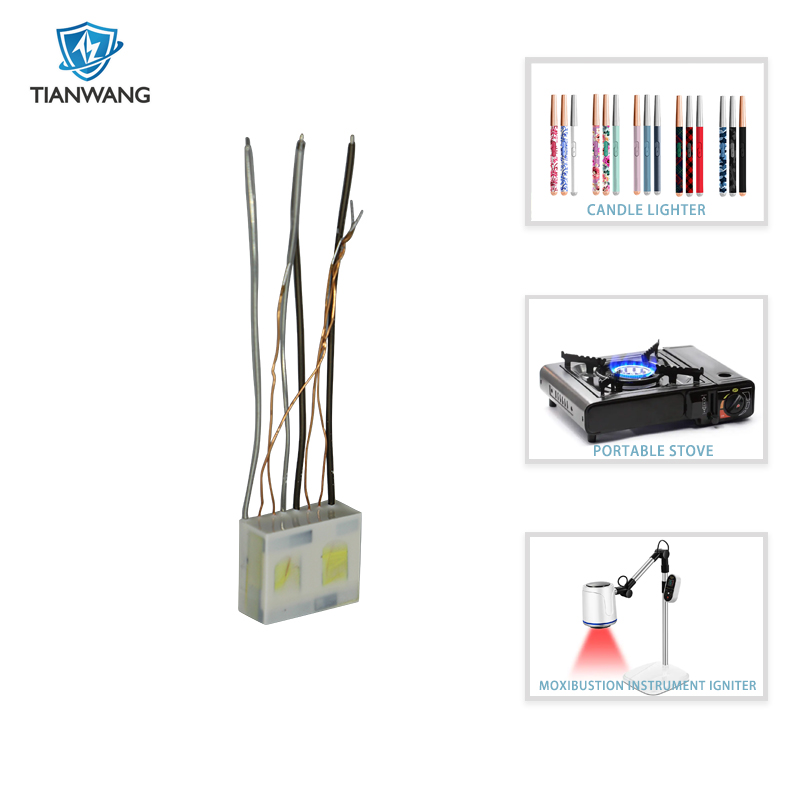

This Arc Igniter Module product is our latest design. The size of cigarette lighter transformer is 18.8*15*7.8mm. this electric arc igniter allows customers to design smaller lighters and Dual Candle lighters.
| Input Voltage | DC3.2V-4.2V |
| Output Voltage | 7KV±2% |
| Working Current | 3-3.5A |
| Frequency | 18-20KHZ |
| Primary inductance | 18-18uh |
| Primary wire diameter | 0.03mm |
| Secondary inductance | 90-100mh |
| Secondary wire diameter | 0.33mm |
| Turns ratio | 1:100 |
| Duty cycle | 60% |
| Working temperature | -15℃-55℃ |
| Atmospheric pressure | 86kpa-106kpa |
| Product working humidity | 20%-80%(RH) |
| Working altitude | ＜3000m |
|

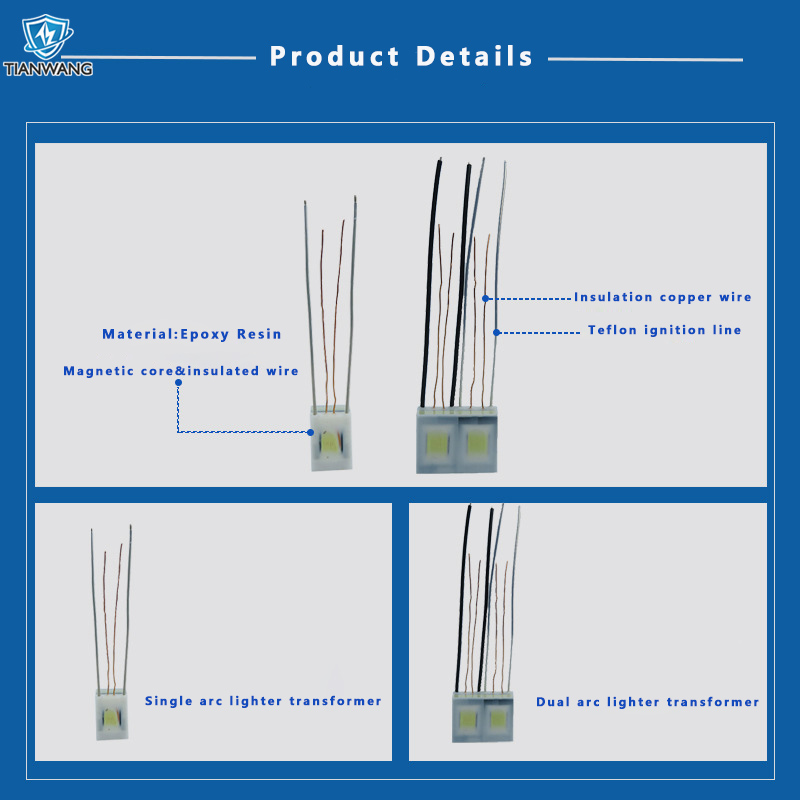

Item |
Feature |
Material |
|
Insulating glue |
High temperature white glue |
Epoxy resin |
|
Output |
φ1.1mm |
Teflon |
|
Input |
enameled wire |
Qa-2 |
|
Magnetic core |
Type E |
PC95 |
1.Do you have arc generator coil of other sizes?

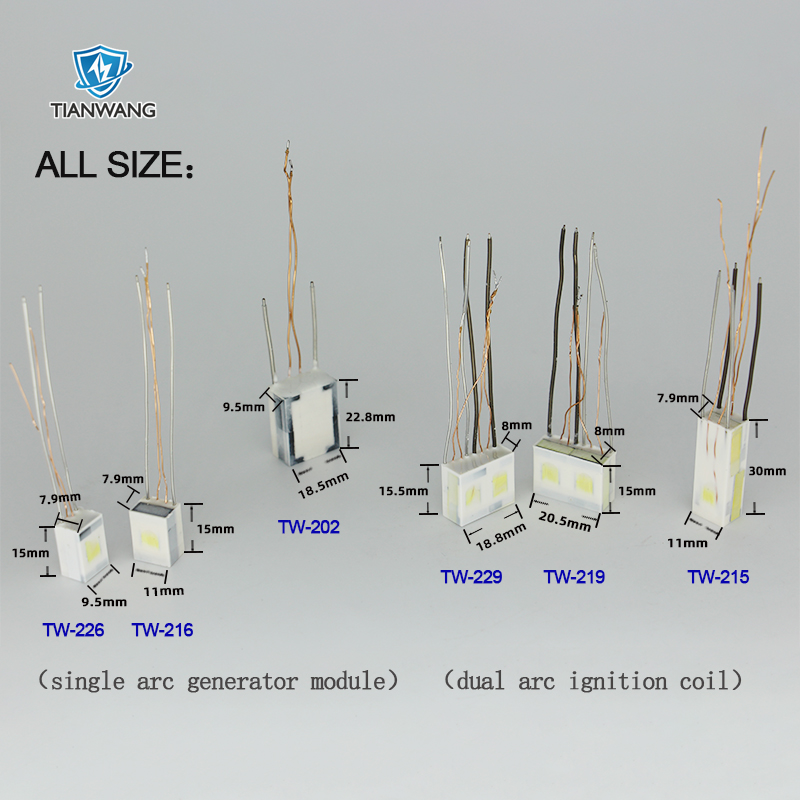

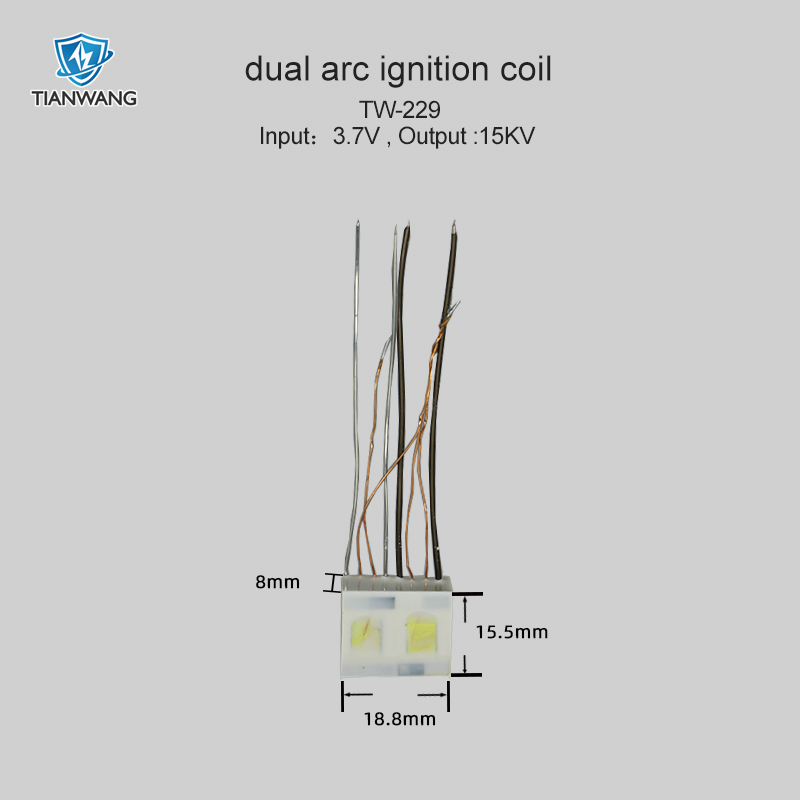

Yes, the following picture shows the detailed size of our products.
2.In addition to the existing size, can I customize the size?
Yes, then send your request to us, and we support customization.
3. Are you a factory?
Yes, we are a factory. Our factory has a production area of more than 20,000 square meters. We have 5 factories and more than 60 sets of fully automatic production equipment.

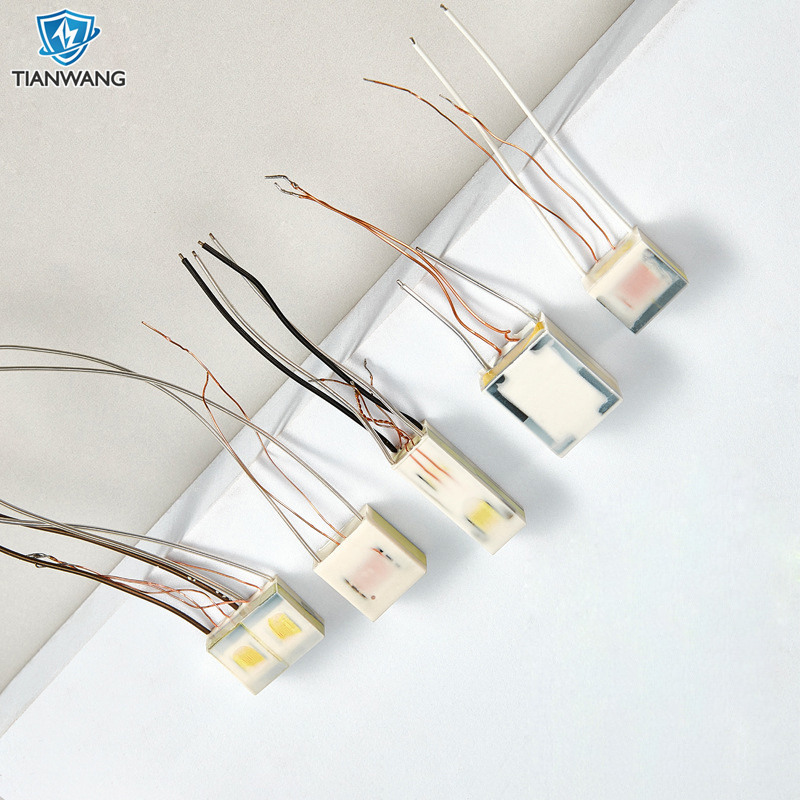

4. Do you have any other cigarette lighter transformer besides arc generator coil?
Yes, we have produced electric arc igniter for more than 30 years, and there are many different types of products,please feel free to contact with us,I will send catalog and product details to you.
