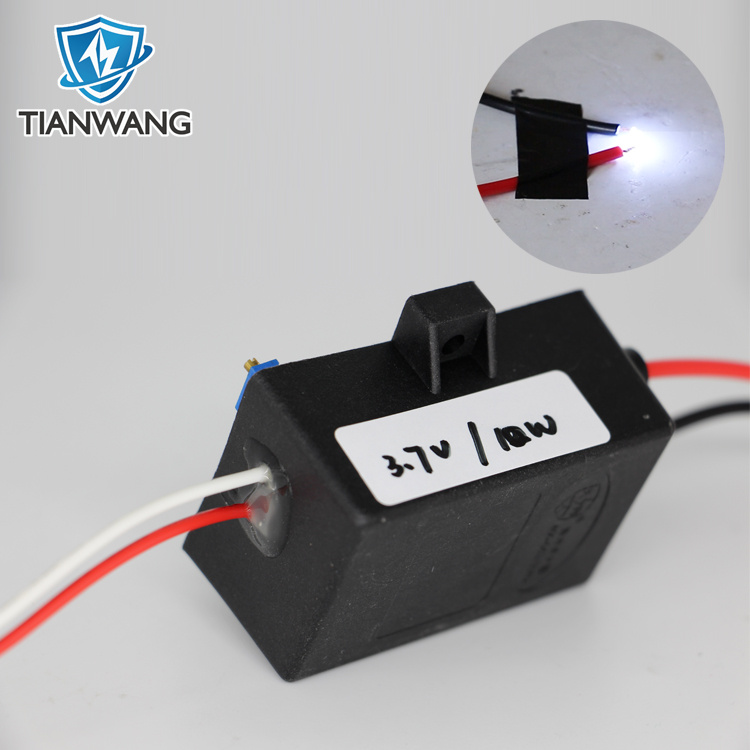

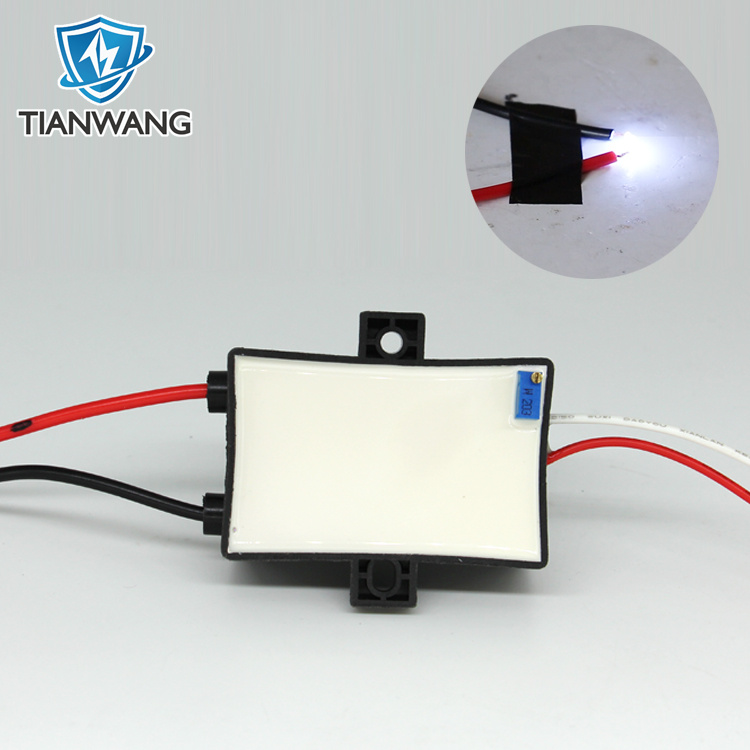

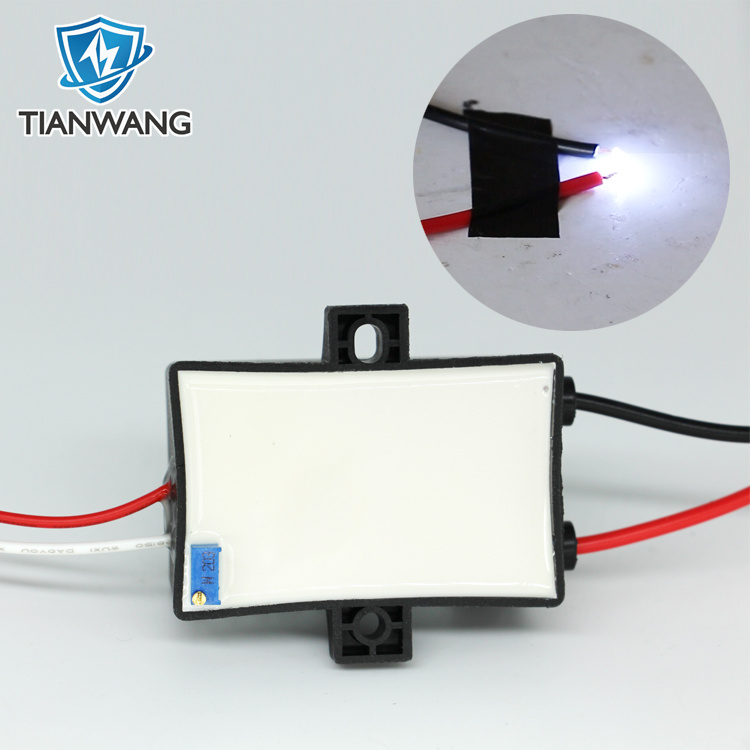

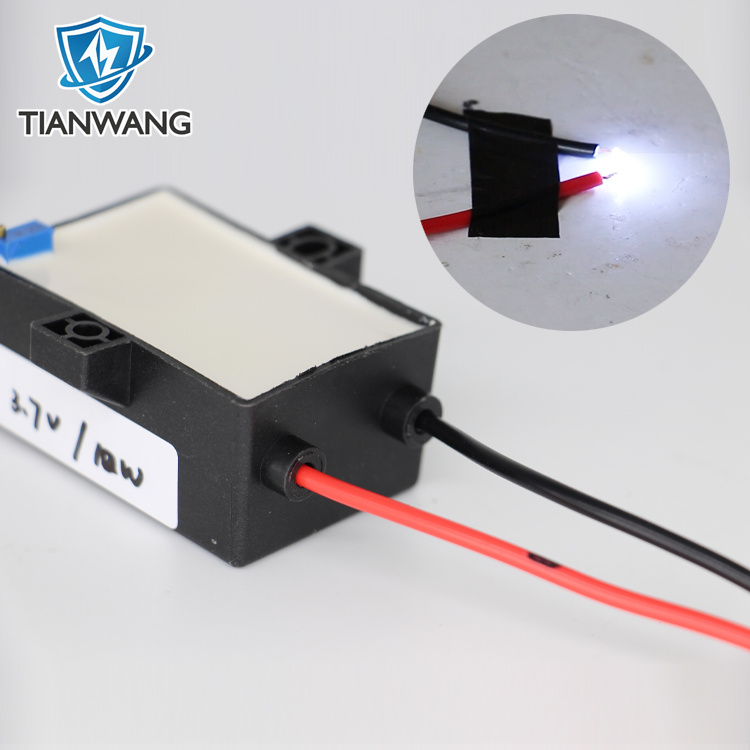

DC 3.7V 12V High Voltage Generator For Insecticidal Lamp
Jiangsu Tianwang high voltage generator for insecticidal lamp Manufacturer is a production-oriented enterprise mainly producing electronic high-voltage generators. It has been specialized in R&D and manufacturing of various step up transformer, Negative Ion Generator, dc high voltage generator,ozone generator module, and Insecticidal Lamp Transformer for 32 years. Pulse igniter, electrostatic generator and other high-voltage electronic products. Products are widely used in agriculture, forestry, industrial ignition, medical industry, safety protection, disinfection, plasma and other fields.
| Item No. | High voltage transformer for insecticidal lamp |
| Input Voltage | 3.7V |
| Output Voltage | 11KV |
| Working Current | 2.7A |
| Maximum Power | ≈10W |
| Dimension | 66*42.5*30 (±1mm) |
| Power Line | Φ2.0×250 (±5mm) |
| Output Line | Φ3.0×250 (±5mm) |
| Output Voltage Regulation | The voltage has been adjusted to the maximum. When the voltage is reduced, it must be adjusted counterclockwise. When the voltage is increased, it must be adjusted clockwise. |
| Item No. | High voltage transformer for insecticidal lamp |
| Input Voltage | 12V |
| Output Voltage | 9.5KV |
| Working Current | 0.75A |
| Maximum Power | ≈10W |
| Dimension | 66*42.5*30 (±1mm) |
| Power Line | Φ2.0×250 (±5mm) |
| Output Line | Φ3.0×250 (±5mm) |
| Output Voltage Regulation | The voltage has been adjusted to the maximum. When the voltage is reduced, it must be adjusted counterclockwise. When the voltage is increased, it must be adjusted clockwise. |
Application Areas:
Agricultural,Garden,Animal Husbandry,Electronic Fence,City and Countryside,Insecticide Lamp
1. What is the delivery time?
Normally, 1-5 working days after payment;
Special requirement orders, delivery time is negotiable.
2.Why should you buy from us not from other suppliers?
Jangsu Tianwang Solar Technology Co., Ltd. is a professional distributor of high voltage power modules. Since its establishment, the company has been adhering to the business philosophy of "product first, reputation first, efficiency first, service first.
3.what is the warranty?
1-2 years warranty according to different products.
1-3 months to replace new items for free.
All products are tested strictly for 2-3 times before leaving factory. we have earned very good reputation in quality,Certified by the ISO9001.
