Newest Design 12V High Pressure Voltage New Energy Fuel Oil Igniter for Fuel Burner

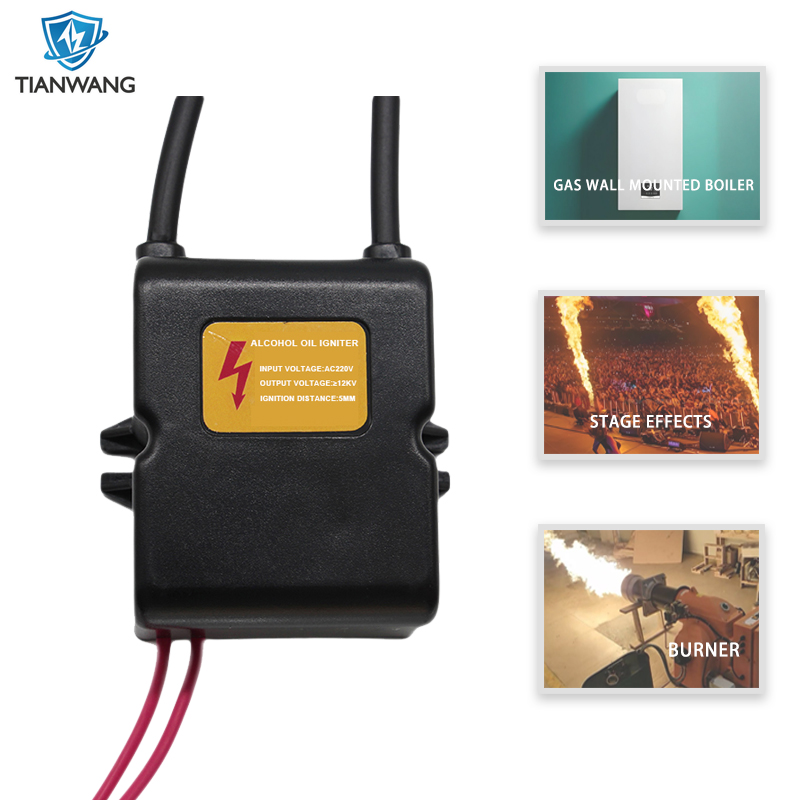

Pulse igniters are widely used in oil furnaces, ovens, various stoves, heating installations, wall-hung boilers, industrial boilers, iron and steel smelting and other fields.

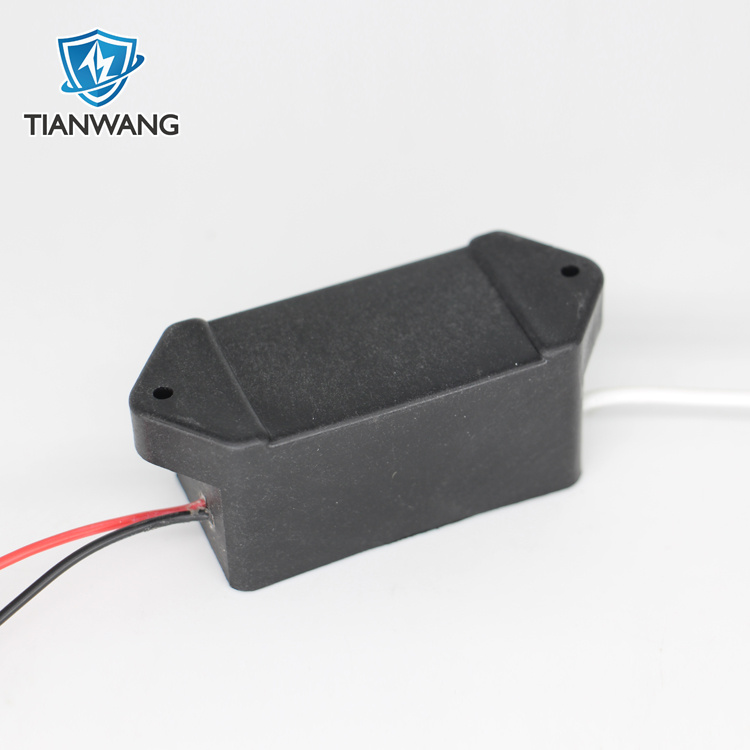

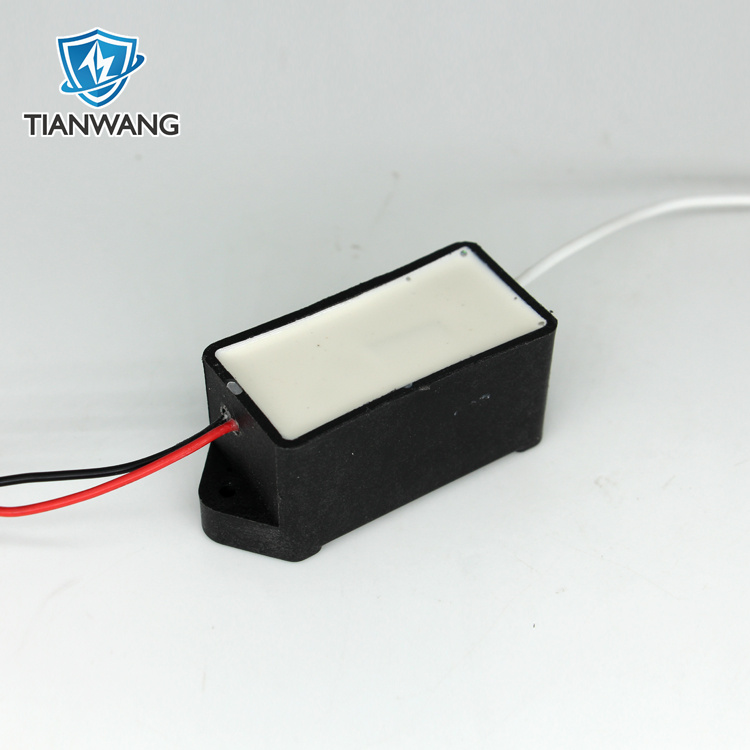

This 12V pulse igniter for gas stove features small form factor and light weight. This series of high-voltage igniters has high-efficiency ignition performance, unipolar or bipolar high-voltage output, various connection and fixing systems, and the product can continue to ignite for several minutes without damage. This burner ignition transformer can be used in different applications according to their electrical characteristics, and can quickly ignite combustible gases such as LPG, natural gas, alcohol, gasoline, diesel, etc.
Gas stove electric igniter is widely used in oil furnaces, ovens, various stoves, heating installations, wall-hung boilers, industrial boilers, iron and steel smelting and other fields.
| Item No. | TW-G-ZJ-12v |
| Dimension | L77mm×W32mm×H30mm |
| Input Voltage | 12V |
| Output Voltage | 11KV |
| Working Current | 1.8A |
| Power | 21.6W |
| Ignition Distance | 1-5mm |
| Length of Input Cable | 300mm |
| Length of Output Cable | 300mm |
| Diameter of Input Cable | Φ1.8±0.5mm Copper Core：Φ0.15mm×24 root |
| Diameter of Output Cable | Φ2.5±0.5mm Copper Core：Φ0.15mm×7 root |
| Strip Length | 3.5±0.5mm |
| Notes | *The above parameters are manual/instrument measurement, there will be 10% error, please understand |
1. This ignition transformer for gas burner is packaged with waterproof, anti-aging and anti-leakage epoxy resin potting process, which improves the life and stability of the pulse igniter. At the same time, the pulse igniter can be used in harsh environments. In normal use, short circuit and leakage will not occur in humid, low temperature and other environments, which improves the safety of pulse igniter products to a certain extent.
2. This high-voltage igniter is made of imported components. The working voltage of the high-voltage igniter is stable, and the damage rate within one year is not more than 1%.
3. This electronic igniter has high-voltage output and instant ignition. The new technology of cooperation, assistance and research and development with many customers ensures stable, efficient and high-quality product quality.
1. How long does the pulse igniter work?
Answer: The pulse igniter can ignite continuously for several minutes.
2. How to distinguish the input and output lines of the high-voltage igniter, and how to connect them?

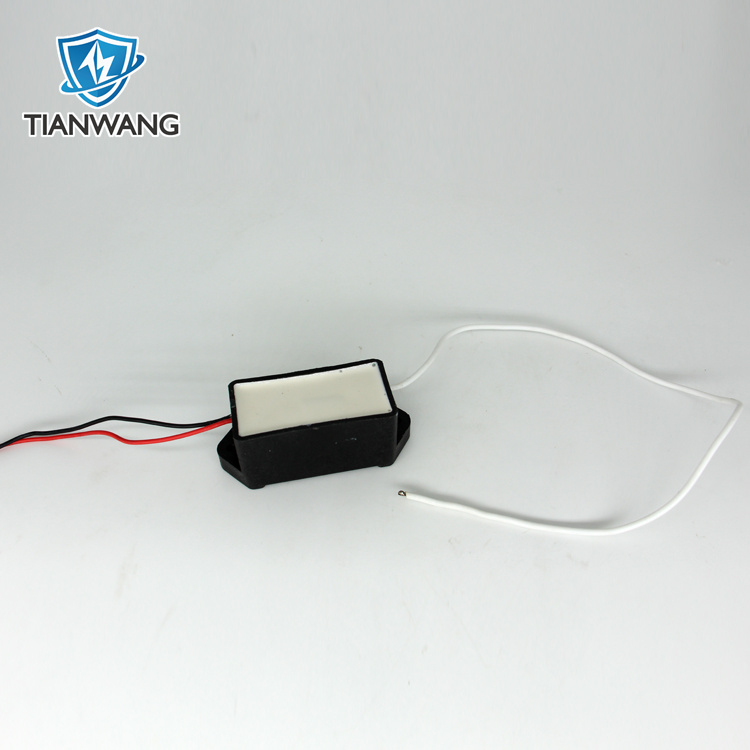

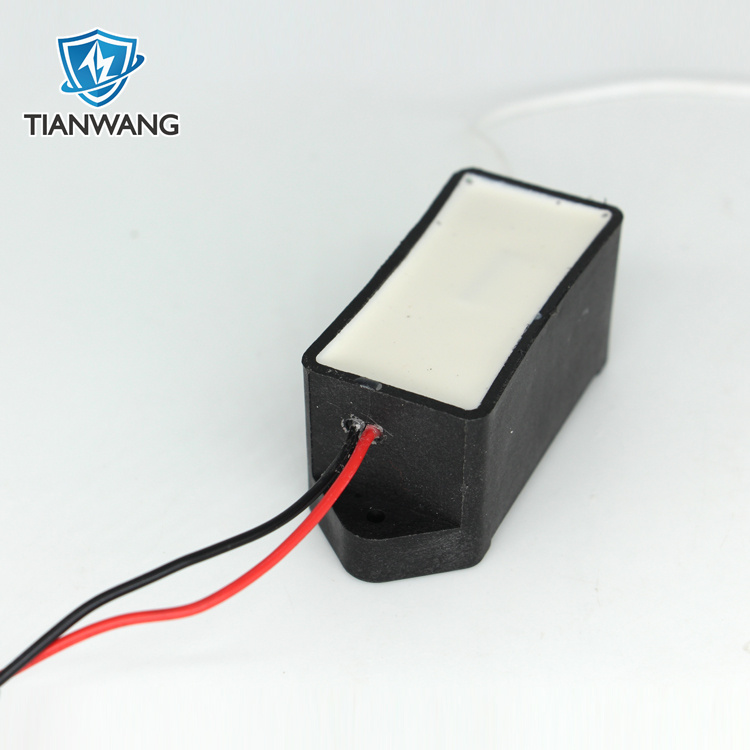

Answer: The input line of the high-voltage igniter is red and black, the red line is the positive pole, the black line is the negative pole, and the output line is a white line.
3. How many electronic igniters are there?
Answer: Electronic igniters are packed in standard custom-made outer cartons, and the quantity in one carton is 250 pieces.
